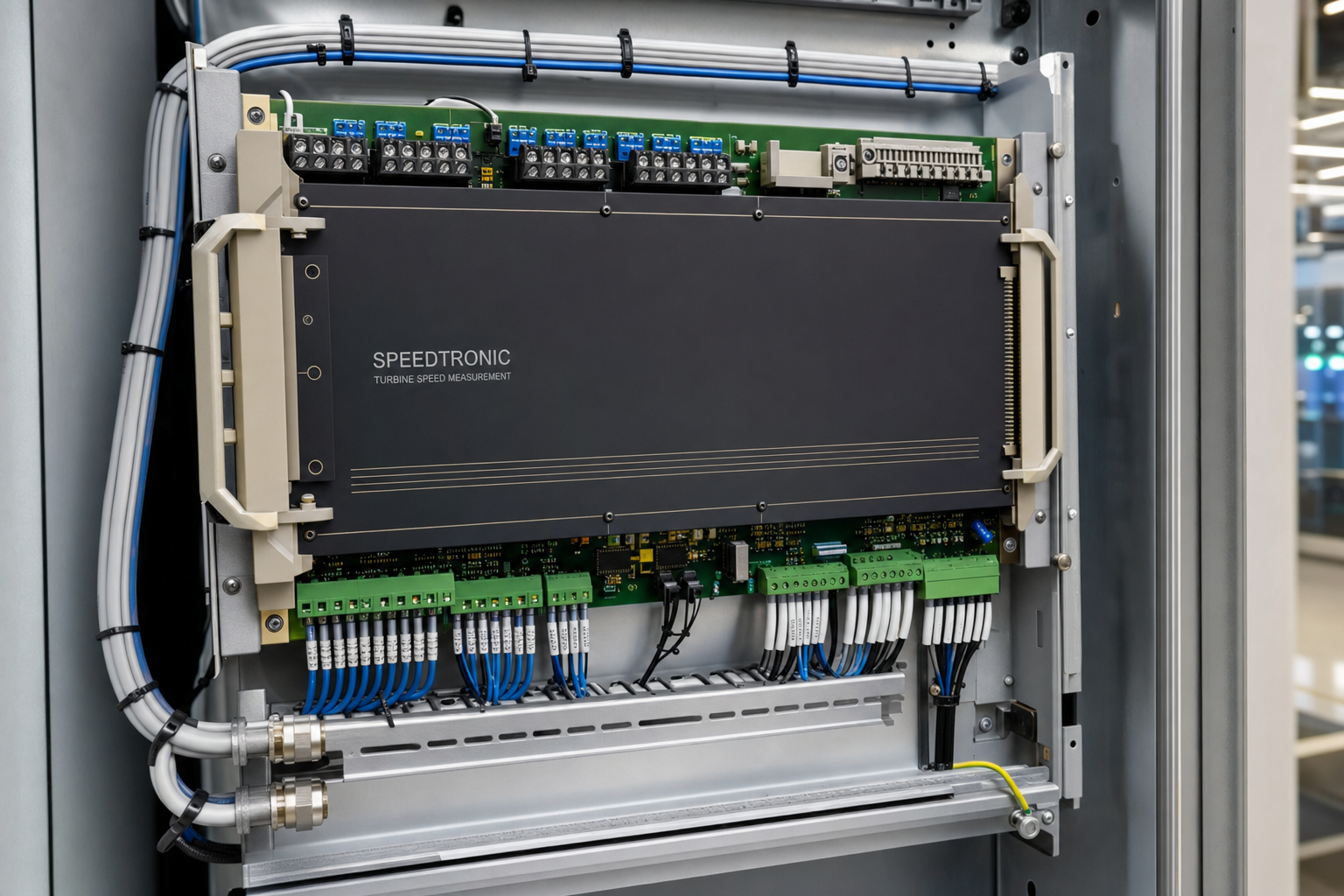

GE IS200VTURH1BAC Spares: Speed Measurement Board Evidence Before a Trip

A turbine speed measurement board sits close to the boundary between normal control and protection. A failed board may create bad speed indication, nuisance alarms, loss of redundancy, or a trip permissive problem. Choosing a GE Speedtronic board by connector or cabinet position alone leaves the pickup wiring and trip test unresolved.

SiemensPLC readers need a precise model-checking approach for legacy turbine control hardware. The article focuses on the evidence that lets procurement source a board while keeping controls and protection engineering in charge of acceptance.

Map the speed-measurement role

Record turbine system, board position, speed pickup type, channel redundancy, input conditioning, firmware, terminal board, alarm and trip role, diagnostics, and approved test reference.

The live IS200VTURH1BAC reference is a product match for an RFQ. Compare the board label, pickup wiring, cabinet position, redundancy, and turbine record before purchase.

Photograph board label, rack, pickup terminals, cables, terminal board, status indicators, and cabinet context without exposing sensitive settings.

Separate speed indication from trip logic

A speed board may feed indication, control, protection, or more than one path. Confirm how the installed system uses the signal and which independent overspeed path must be tested after replacement.

The related GE UR9EV protection reference shows why nearby protection hardware is a separate dependency, not proof that the speed board is compatible.

Request exact, tested exchange, repair, substitute, and engineering review options separately, with actual-item photos, revision, pickup scope, condition, warranty, and dispatch timing.

Acceptance must prove speed and protection

After replacement, verify power, pickup signal, channel redundancy, scaling, diagnostics, alarms, speed control, overspeed protection, trip permissives, and the approved test.

Mark the item exact, configuration pending, bench-tested, substitute, or engineering review required.

Keep board and pickup labels, redundancy record, settings, measurements, protection test, and final approval together.

Build the RFQ around the installed function

A useful spare request starts with the installed function, not only a familiar brand name. State what the device does, where it sits, what it connects to, and what failure would stop, trip, blind, or slow the process. Add the exact label, revision, connector view, power information, accessory scope, condition requirement, destination, and required date. This gives procurement and engineering the same starting point.

Separate an exact replacement from a possible substitute, repair exchange, bench item, and migration candidate. These options can all be commercially useful, but they carry different approval burdens. An exact spare may support a short outage window. A substitute may need wiring changes, parameter review, software work, validation, or a production trial before it can be counted as recovery stock.

The live product references in this article are catalog matches, not permission to skip engineering checks. Compare every product page with the installed label and plant record. If a suffix, connector, voltage, protocol, firmware family, or mechanical interface differs, keep the item conditional until the responsible engineer closes that gap.

Receiving inspection should repeat the evidence used for the RFQ. Photograph the received label, packaging, connectors, terminals, mounting features, and included accessories. Record what was checked and what remains unknown. A clean-looking item is not automatically a field-ready spare, and an item that powers up is not automatically accepted by the control, safety, motion, or protection function.

Review the spare before the maintenance window, not only after a failure. Confirm that the item is physically present, packaging and accessories are intact, the backup or test procedure is available, and the responsible engineer is still named. When a substitute is considered, write down the exact gap it is intended to close and the evidence needed to approve it.

The most useful quotation response mirrors the plant record. It should state the exact model, actual condition, test scope, included hardware, lead time, warranty, and any unresolved compatibility question. Avoid a quote that quietly combines an exact part, an exchange repair, and a possible substitute under one heading. Those options have different outage and approval consequences.

Finally, define the acceptance owner before the part is ordered. Procurement can verify item identity and commercial terms; stores can verify packaging and label; maintenance can verify installation; and the responsible controls, safety, motion, or reliability engineer can approve functional recovery.

This discipline also improves the next audit: the plant can show why the model was selected, which evidence was checked, what remained conditional, and how the installed function was accepted.

A good quotation should also state what the supplier cannot determine from a catalog page. Unknown firmware, missing drawings, unclear terminals, incomplete accessories, and untested condition should remain open items instead of being hidden in a generic compatible statement.

Before the maintenance window, confirm the spare location, packaging, accessory scope, backup media, test equipment, and named decision owner. This small check often matters more than another broad search because it converts a possible part into a usable recovery plan.

Record the final decision in the asset file with the installed model, product match, evidence reviewed, unresolved risks, test result, and approval date.

FAQ

What must match on an IS200VTURH1BAC spare?

Match Speedtronic role, pickup type, wiring, board position, redundancy, firmware, diagnostics, and control or trip function.

Can a similar GE board replace it?

Only after input conditioning, pickup, redundancy, firmware, terminals, protection logic, and engineering approval are checked.

What should the RFQ include?

Send board and rack labels, pickup and terminal photos, trip role, condition, test scope, and deadline.

Is a speed indication test enough?

No. Redundancy, alarms, control behavior, overspeed protection, and approved trip testing must be proven.
