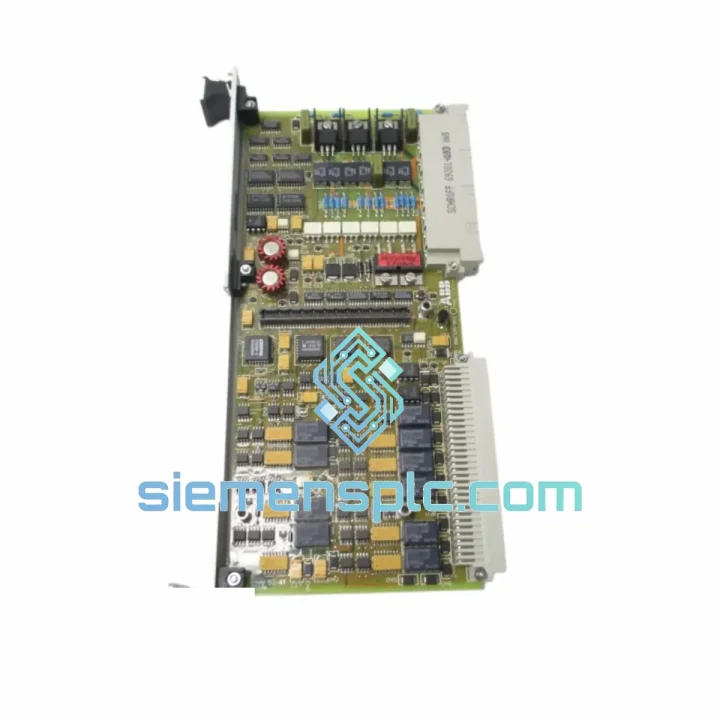

ABB 086329-003 Excitation Control Board – UNITROL ECS Series

ABB 086329-003 Excitation Control Board: Closed-Loop AVR Processor for UNITROL ECS Generator Platforms

In a synchronous generator’s excitation control architecture, the AVR processing board is the computational core that determines whether the machine holds voltage under load, recovers from grid disturbances within specification, and shares reactive power accurately with parallel units. The ABB 086329-003 fulfills this role within the ABB Excitation Control System (ECS) chassis — executing the Automatic Voltage Regulator algorithm, arbitrating between competing limiter functions, and issuing gate pulse commands to the thyristor bridge on a cycle-synchronous basis.

The board’s control loop operates at a scan rate phase-locked to the generator’s terminal frequency. This synchronization is architecturally significant: it means that the firing angle correction computed in response to a voltage deviation is dispatched within the same electrical cycle in which the deviation was measured. There is no inter-cycle accumulation of error. Under steady-state rated load, terminal voltage is held within ±0.5% of setpoint. Under transient conditions — sudden load rejection, fault clearance, or step-load application — the AVR’s PID compensation with gain scheduling maintains recovery trajectories that satisfy the IEEE Std 421.5 performance envelope for Type AC and Type ST excitation systems.

The 086329-003 is the designated replacement board for ABB UNITROL 1000, UNITROL 5000, and UNITROL 6000 ECS controllers deployed in thermal, hydro, gas turbine, and industrial co-generation facilities. Its plug-in form factor and OEM part designation mean that a qualified board swap restores full excitation system function without firmware patching, sensor recalibration, or chassis modification — a maintenance characteristic that directly reduces forced outage duration when excitation faults occur.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Cycle-Synchronous AVR Execution: The 086329-003’s processor derives its execution clock from the generator terminal voltage waveform via a phase-locked loop (PLL) circuit on the measurement input stage. The AVR control algorithm — including PID compensation, setpoint comparison, and firing angle computation — completes within a fixed window before the next thyristor firing event. This architecture eliminates the asynchronous timing jitter that would otherwise introduce variable phase error into the gate pulse sequence. The practical consequence is that voltage regulation performance is consistent across the full load range, not degraded at partial load where firing angles are larger and timing margins are tighter.

Galvanic Isolation on All Measurement Inputs: Generator terminal voltage (from PT secondary), field current (from CT secondary), and reactive power signals each pass through dedicated optocoupler isolation stages before reaching the board’s analog-to-digital conversion circuitry. The isolation barrier serves two functions: it prevents ground loop currents — which are endemic in generator switchyard environments due to the large physical separation between measurement points and control panels — from introducing DC offset errors into the AVR’s feedback signals; and it provides a defined withstand boundary against high-energy transients generated by thyristor commutation and nearby switching operations. The isolation withstand rating of greater than 4 kV line-to-earth satisfies IEC 61000-4-5 Level 4, the most demanding surge immunity class applicable to industrial power equipment.

Multi-Layer EMC Ground Architecture: The PCB employs separate analog and digital ground planes joined at a single star point adjacent to the power supply input. This topology prevents digital switching currents from the processor and communication logic from returning through the analog ground reference, which would manifest as noise on the AVR’s measurement inputs. Ferrite bead filters are placed at all inter-board connector pins to attenuate high-frequency conducted noise from the backplane. The board’s oscillator uses spread-spectrum modulation to distribute clock harmonics across a frequency band rather than concentrating them at discrete frequencies, reducing both conducted and radiated emissions to levels compatible with operation in close proximity to thyristor bridges.

Hardware-Enforced Limiter Architecture: The OEL and UEL functions are implemented as independent hardware comparator circuits that monitor field current and reactive power signals in parallel with the main AVR computation loop. When a limit threshold is crossed, the comparator output directly modifies the AVR demand signal at the hardware level — the intervention does not wait for the processor’s next scan cycle. This design ensures that field current limiting engages within one electrical cycle of the threshold crossing, which is the response speed required to prevent field winding thermal damage during sustained over-excitation events. Software-based limiters, by contrast, are subject to scan cycle latency that can allow the field current to exceed the thermal limit before corrective action is applied.

Dual-Channel Redundancy Arbitration: In 1+1 redundant ECS configurations, the 086329-003 exchanges watchdog heartbeat signals with its counterpart board via the chassis backplane. The arbitration logic that determines which channel is active and initiates switchover is implemented in dedicated hardware logic, independent of the processor on either board. A processor fault, software exception, or communication timeout on the active board triggers a hardware-initiated switchover without requiring the faulted processor to participate in the handover sequence. Measured switchover time is under 100 ms, within the field current decay time constant of most synchronous generators, meaning the generator remains in controlled excitation throughout the transition.

System Integration Benefits

• OEM-Designated Board Replacement: The 086329-003 carries ABB’s factory part designation for the UNITROL ECS platform. Replacement requires no firmware updates, no hardware adaptation brackets, and no recalibration of external measurement transformers — the board accepts the existing chassis wiring and backplane connections without modification.
• Repeatable Transient Recovery Performance: The cycle-synchronous AVR scan rate produces voltage recovery trajectories that are deterministic across repeated fault events. This repeatability is a prerequisite for grid code compliance testing that requires documented LVRT performance under standardized disturbance conditions.
• SCADA-Accessible Reactive Power Data: The board’s VAR control output is readable via the ECS communication interface, allowing DCS and SCADA systems to log reactive power dispatch history at the source without requiring additional transducers, signal conditioners, or data acquisition hardware at the generator terminal.
• Non-Volatile Fault Logging: Limiter activation events, AVR mode transitions, and fault codes are written to on-board non-volatile memory that retains data through power loss. Post-event analysis can be conducted directly from the ECS operator interface without external data logging infrastructure, reducing the time required to establish root cause after an excitation disturbance.
• Accurate Reactive Power Sharing on Common Bus: The cross-current compensation function maintains reactive power sharing accuracy within ±5% of rated reactive output across generators operating in parallel on a common bus, without requiring inter-generator communication beyond the standard droop signal wiring.
• Reduced Mean Time to Repair: Board-level replacement restores excitation system function in 2–4 hours. Procurement of a complete replacement controller through standard OEM channels typically requires 4–8 weeks. For base-load generation assets, the difference in forced outage duration has direct financial consequences in terms of replacement power costs and capacity payment penalties.
• Backward Compatibility with Earlier ECS Chassis Revisions: The 086329-003 is electrically and mechanically compatible with earlier UNITROL ECS chassis hardware revisions, enabling targeted board-level upgrades in aging installations without requiring a full system replacement capital project or associated protection relay re-coordination studies.
• Scalable to High-Availability Excitation Architectures: The board’s hardware arbitration interface supports direct integration into 1+1 redundant ECS configurations, providing the excitation system availability level required for base-load and peaking generation assets where unplanned outages carry grid stability obligations or contractual penalty exposure.

Quality Assurance & Global Logistics

Each ABB 086329-003 unit dispatched from our Xiamen facility is processed through a structured pre-shipment verification protocol. Visual inspection covers PCB component integrity, solder joint condition, connector pin alignment, and the absence of physical damage, corrosion, or evidence of prior repair. Part markings, PCB revision codes, and date codes are cross-referenced against ABB OEM documentation to verify component authenticity and screen for non-genuine assemblies.

Following visual inspection, each board undergoes a bench-level power-on functional test. The test sequence verifies AVR output signal generation across the operating range, limiter logic response at defined threshold inputs, watchdog signal output continuity, and communication interface register accessibility. Boards that do not pass all test criteria are quarantined and not dispatched.

Verified units are packaged in anti-static shielding bags, placed in foam-lined rigid cartons with corner protection, and sealed with moisture barrier packaging rated for long-haul air freight. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared for each shipment. DHL Express and FedEx International Priority are used as standard carriers, with shipment tracking provided from Xiamen to the destination facility. Transit time to most major industrial regions in Europe, North America, Southeast Asia, and the Middle East is 3–7 business days from dispatch date.

A 12-month warranty covering manufacturing defects and functional failure under normal operating conditions is provided with each unit. Warranty claims are acknowledged within 48 business hours of receipt of the defective unit at our facility.
