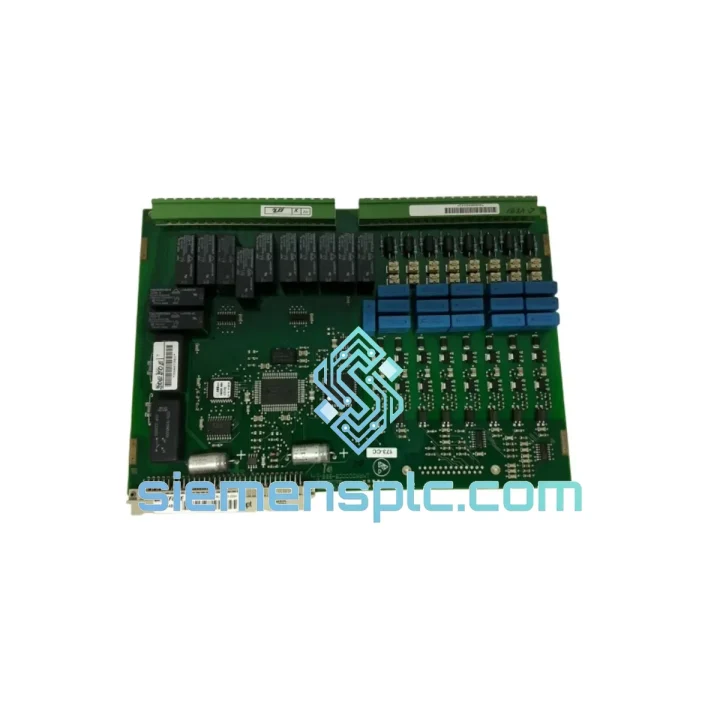

ABB 1MRK000173-CCr00 EFORE Communication Module – REC REL RED Series

ABB 1MRK000173-CCr00 EFORE: Communication Interface Board in Relay Protection Architecture

The ABB 1MRK000173-CCr00 EFORE is a dedicated communication and end-of-frame processing board engineered for deployment within ABB’s modular relay protection platforms — specifically the REC, REL, and RED series used in transmission and distribution substations worldwide. Its function is not peripheral: the EFORE board sits at the intersection of inter-relay data exchange and frame-boundary arbitration, making it a load-bearing component in any protection scheme that depends on deterministic inter-device communication.

In a substation protection architecture, relay modules must exchange status, trip, and blocking signals within tightly bounded time windows — typically sub-20 ms for distance protection and differential schemes. The 1MRK000173-CCr00 EFORE manages the framing layer of this exchange: it identifies frame start and end boundaries, synchronizes data flow between the relay’s internal bus and the external communication interface, and ensures that upstream protection logic receives clean, validated data frames. A failure at this layer does not degrade performance gradually — it causes a hard communication fault, which in live grid environments triggers alarm escalation and may force manual protection bypass.

This module is sourced as genuine ABB OEM hardware, verified against ABB’s part numbering and revision matrix, and dispatched from Xiamen, China with full traceability documentation. Stock is maintained for immediate dispatch to minimize substation downtime windows.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

End-of-Frame Detection Architecture: The EFORE designation directly describes the board’s primary hardware function. In ABB’s relay communication stack, data is transmitted in structured frames across the internal bus. The EFORE board implements a dedicated frame-boundary detection circuit — typically a combination of shift-register logic and a comparator array — that monitors the bit stream for the specific end-of-frame delimiter pattern defined in ABB’s proprietary protocol. This is not a software-polled function; it is implemented in discrete logic or a field-programmable gate array (FPGA) fabric to achieve deterministic latency, independent of CPU load on the relay’s main processor.

Optocoupler-Based Signal Isolation: The board’s I/O boundary employs optocoupler isolation between the relay’s internal logic domain (typically 5 VDC CMOS) and the external communication interface. This galvanic isolation is critical in substation environments where ground potential differences between relay panels can reach several hundred volts during fault conditions. The optocoupler stage provides a minimum isolation voltage of 2.5 kV (per IEC 60747-5-5), preventing fault-induced transients from propagating into the relay’s logic circuitry.

EMC Design and Shielding: The PCB layout follows IEC 61000-4 immunity requirements. High-frequency signal traces are routed with controlled impedance (typically 50 Ω for serial data lines), and the board incorporates a ground plane layer that provides a low-impedance return path for high-frequency currents, suppressing radiated emissions. Ferrite beads are placed at the board’s power entry points to attenuate conducted interference in the 1 MHz–30 MHz range — a frequency band particularly problematic in substations due to switching transients from disconnectors and circuit breakers.

Backplane Bus Interface Logic: The EFORE board interfaces with the relay subrack’s DIN 41612 backplane via a buffered bus driver stage. The buffer logic implements tri-state control, allowing the board to release the bus during non-transmission periods and preventing bus contention in multi-board relay configurations. The bus arbitration timing is synchronized to the relay’s master clock signal, ensuring that frame data is presented to the backplane within the relay’s defined bus cycle window — typically 1–4 µs per cycle in ABB’s REC/REL architecture.

Revision Control (CCr00): The revision suffix CCr00 identifies the initial production revision of this board variant. ABB’s revision control system uses this code to lock the board’s firmware compatibility matrix. Substituting a CCr01 or later revision without verifying the relay’s hardware configuration document (HCD) can result in communication handshake failures, as later revisions may implement modified frame delimiter patterns or altered bus timing parameters.

System Integration Benefits

• Deterministic Frame Latency: Hardware-implemented frame detection eliminates software polling jitter, ensuring that frame-boundary events are processed within a fixed, predictable latency window — a prerequisite for protection schemes with sub-20 ms trip time requirements.
• Galvanic Isolation Integrity: Optocoupler isolation at the I/O boundary prevents ground-loop currents and fault-induced transients from corrupting relay logic, maintaining communication integrity during external fault events on the primary system.
• Zero-Modification Slot Replacement: The OEM part number and DIN 41612 connector format guarantee mechanical and electrical compatibility with the target relay subrack slot — no hardware modification, re-wiring, or adapter required.
• Firmware Revision Traceability: The CCr00 revision code is documented in ABB’s hardware compatibility matrix, allowing maintenance engineers to confirm firmware alignment before installation and avoid post-replacement communication faults.
• Reduced Commissioning Time: Like-for-like OEM replacement eliminates the need for re-parameterization of communication settings, reducing the substation outage window to the physical swap and functional test duration only.
• IEC 61850 Environment Compatibility: The board’s communication framing architecture is compatible with ABB relay platforms that support IEC 61850 GOOSE messaging, preserving the relay’s ability to participate in station-bus protection schemes without reconfiguration.
• Diagnostic Transparency: The EFORE board’s frame-error detection logic generates discrete fault signals that are readable by the relay’s self-monitoring system, enabling the relay to log communication errors with timestamp resolution and alert operators before a hard communication failure occurs.
• Long-Term Spare Parts Availability: Sourced as genuine ABB OEM hardware with full part number traceability, this module supports asset lifecycle documentation requirements under IEC 55000 series asset management standards and NERC CIP maintenance records.
• Multi-Platform Applicability: A single EFORE board variant covers multiple ABB relay platforms (REC 316*4, REC 523, REL 316, RED 500), simplifying spare parts inventory management for utilities operating mixed ABB relay fleets.
• ESD-Safe Handling and Packaging: Shipped in anti-static ESD packaging with shock-absorbing foam inserts, protecting the PCB’s CMOS logic components from electrostatic discharge during transit — a critical requirement for boards with exposed backplane connectors.

Quality Assurance & Global Logistics

Every ABB 1MRK000173-CCr00 EFORE unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification process. Visual inspection covers PCB surface condition, connector pin integrity, component seating, and label authenticity against ABB’s OEM reference. Power-on functional verification confirms that the board initializes correctly and that the frame detection logic responds to test stimulus within the specified timing window. Each unit is documented with its source record, inspection date, inspector ID, and serial/revision data — this traceability package is available to the customer upon request.

Packaging is ESD-safe anti-static bag with inner foam cushioning and outer double-wall corrugated carton, rated for international air freight handling. Shipment is via DHL Express, FedEx International Priority, or UPS Worldwide Expedited — all with door-to-door tracking. For bulk orders, sea freight via FCL/LCL from Xiamen Port is available with competitive transit times to major global ports. Export documentation including commercial invoice, packing list, and certificate of origin is prepared for all international shipments. A 12-month warranty covers all new OEM units from the dispatch date, with direct technical support from our engineering team for installation and commissioning queries.
