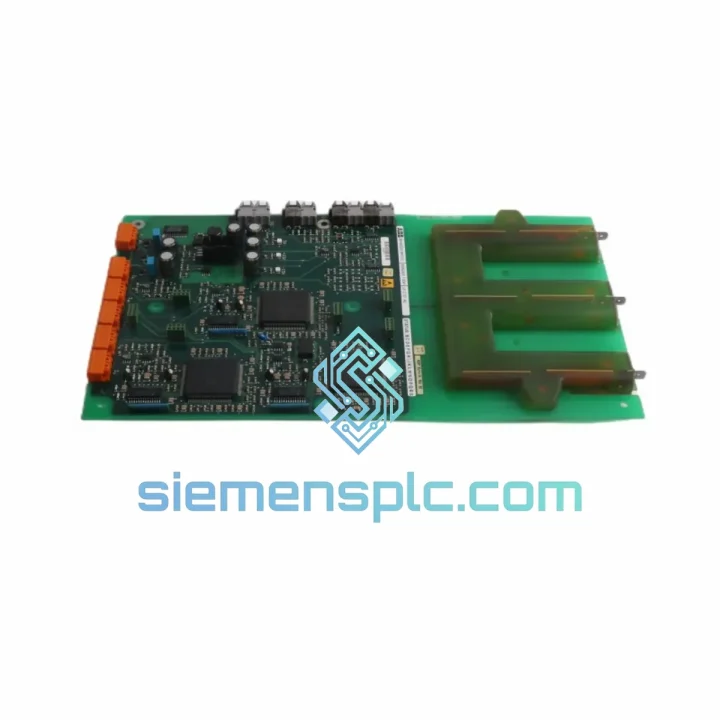

ABB 3BAB002916R0001 UFC721AE High Voltage Inverter Board

ABB 3BAB002916R0001 UFC721AE – Stop the Clock on Your Downtime

Every minute your drive is offline, the losses compound. A failed UFC721AE inverter board in an ABB UFC700-series drive doesn’t just halt one motor — it can cascade into a full production line shutdown. We stock the ABB 3BAB002916R0001 UFC721AE High Voltage Inverter Board precisely for this scenario: verified, tested, and ready to leave Xiamen within 24 hours of your order confirmation. No waiting on factory lead times. No chasing distributors. One call, one shipment, line back up.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The UFC721AE is the inverter firing board — it sits between the RMIO/RINT control layer and the physical IGBT stack. When this board fails, the drive typically trips on one of the following fault codes:

• F-0022 / F-0023 (Inverter Overcurrent): Often misdiagnosed as an IGBT failure. Before condemning the power stack, swap the UFC721AE first — a corrupted gate signal from this board will produce identical symptoms at a fraction of the replacement cost.
• F-0017 (DC Overvoltage on Inverter Section): Can indicate the UFC721AE is not correctly modulating the firing pulses. Check fiber optic TX/RX power levels on both ends before assuming a capacitor bank issue.
• F-0031 (Board Communication Loss): Fiber optic connectors on the UFC721AE are the first point of failure after board aging. Clean connectors with IPA before replacement; if fault persists, the board’s internal FPGA has likely failed.
• Intermittent tripping under load: Thermal cycling causes micro-fractures in solder joints on the gate driver ICs. This manifests as random trips at high load that clear on restart — a classic UFC721AE end-of-life signature.

Replacement Procedure – Key Steps:

1. De-energize the drive fully. Verify DC bus voltage is below 50 V with a calibrated meter before touching any board. UFC700-series drives retain dangerous charge for up to 10 minutes after power-off.
2. Document the fiber optic cable routing before disconnection. Each channel (U, V, W phase) has a dedicated fiber pair — incorrect reconnection will cause immediate phase-to-phase fault on first energization.
3. The UFC721AE does not require DIP switch configuration on most UFC700 frames — addressing is handled automatically via the fiber optic link to the RMIO board. However, confirm the firmware revision on your RMIO board matches the UFC721AE hardware revision. Mismatched firmware (e.g., RMIO FW 17.x with UFC721AE HW Rev D) can cause erratic gate timing.
4. After installation, perform a full insulation resistance test on the motor circuit before re-energizing. A failed UFC721AE sometimes causes downstream IGBT damage — verify the power stack is intact before the first test run.
5. Run the drive at 10% load for 15 minutes and monitor the inverter section temperature via the drive’s diagnostic panel. Confirm all three phase currents are balanced within ±2%.

Reliability in Harsh Conditions

The UFC721AE was engineered for environments that would destroy consumer-grade electronics. ABB’s UFC700 platform is deployed in cement plants, offshore platforms, steel mills, and mining operations — locations where ambient temperatures swing from sub-zero to 55°C, where vibration is constant, and where humidity can condense on exposed PCBs during shutdown cycles.

The board’s conformal coating provides protection against moisture ingress and conductive dust — a critical feature in cement and mining applications where fine particulate infiltrates every enclosure. The fiber optic communication architecture eliminates ground loop interference that plagues copper-based gate drive systems in high-noise industrial environments. Gate driver ICs are rated for extended temperature ranges, and the PCB substrate is selected for low thermal expansion coefficient to survive the thermal cycling inherent in variable-load drive applications.

Units in our inventory are stored in climate-controlled conditions with anti-static packaging. Long-term storage boards undergo a re-conditioning power-up cycle before dispatch to reform any electrolytic capacitors that may have experienced charge depletion during storage — a step most distributors skip, and one that directly impacts first-energization reliability.

Global Express Logistics

Our dispatch hub is located in Xiamen, Fujian Province, China — one of the most logistics-efficient cities on the Chinese coast, with direct DHL and FedEx gateway access. Here is exactly what happens after you confirm your order:

• Hour 0–2: Order confirmed, stock physically pulled and photographed. Pre-shipment photos sent to you via email or WhatsApp.
• Hour 2–8: Unit packed in anti-static foam-lined double-wall carton. Commercial invoice, packing list, and HS Code 8537.10 export documentation prepared.
• Hour 8–24: Shipment booked on DHL Express or FedEx International Priority — carrier selected based on your destination for fastest transit. Tracking number issued to you immediately upon pickup scan.
• Transit Time: Southeast Asia: 1–2 business days. Middle East / Europe: 2–4 business days. Americas: 3–5 business days. Remote destinations: 5–7 business days.
• Customs: We prepare accurate export documentation to minimize customs clearance delays. For destinations with import duty sensitivities, we advise on declared value structuring within legal compliance.
• Emergency freight: For genuine production-down situations, contact us directly on WhatsApp — we can arrange same-day courier pickup for orders confirmed before 14:00 CST.
