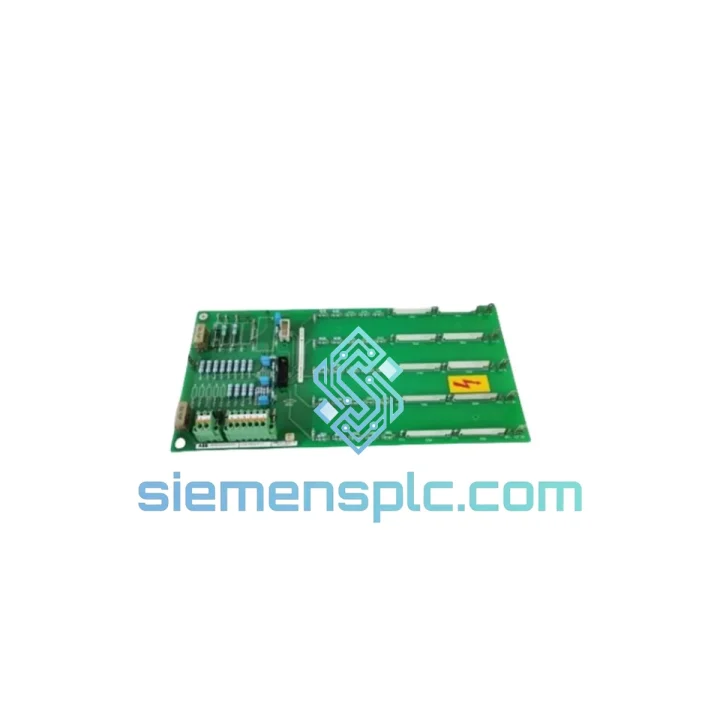

ABB 3BHE006422R0002 UNS2861C-P V2 — Thyristor Gate Drive Board for UNITROL Synchronous Generator Excitation Systems

The ABB 3BHE006422R0002, designated UNS2861C-P in hardware revision V2, is the gate pulse generation and distribution board within ABB’s UNITROL excitation control platform. Its position in the excitation control chain is unambiguous: it receives digitally encoded firing-angle commands from the Automatic Voltage Regulator (AVR) processor board via the UNITROL backplane bus, converts those commands into precisely timed, galvanically isolated gate current pulses, and delivers them to the six thyristor (SCR) legs of the field current rectifier bridge. The board operates at the boundary between the low-voltage digital control domain and the high-voltage power conversion domain — a boundary that demands both sub-microsecond timing accuracy and robust isolation against common-mode transients that can reach several kilovolts during thyristor commutation events.

In a synchronous generator excitation loop, terminal voltage regulation depends entirely on the accuracy and repeatability of thyristor firing angles. A 1° error in firing angle at rated load translates directly into a measurable deviation in field current, which in turn shifts terminal voltage and reactive power output. The 3BHE006422R0002 is designed to hold firing angle execution error below 0.1° electrical across all six channels simultaneously, maintaining current balance across the three-phase bridge and preventing the asymmetric heating that accelerates thyristor degradation. The V2 hardware revision (order suffix R0002) introduced revised pulse transformer coupling ratios and an updated optocoupler isolation stage with higher common-mode transient immunity (CMTI ≥ 10 kV/µs) compared to the R0001 release, directly addressing field reports of optocoupler latch-up in installations with high-impedance grounding schemes.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3BHE006422R0002 implements a two-stage galvanic isolation architecture that is non-negotiable in generator excitation environments. Stage one uses high-speed optocouplers with a CMTI rating of ≥ 10 kV/µs. This rating is not a marketing figure — it defines the board’s ability to maintain a valid logic-level signal across the isolation barrier while the thyristor bridge undergoes commutation, during which the anode voltage of a turning-off thyristor can slew at rates exceeding 1 kV/µs. An optocoupler with insufficient CMTI will couple this transient into the control-side output, producing spurious gate pulses or logic corruption on the AVR board. The V2 revision selected optocouplers with a CMTI margin that exceeds the worst-case commutation dV/dt measured in ABB’s UNITROL qualification testing by a factor of approximately 3×.

Stage two uses one pulse transformer per thyristor gate channel. Pulse transformers serve two functions simultaneously: they provide a second, independent galvanic isolation barrier rated to the full creepage and clearance requirements of the thyristor bridge voltage class, and they perform impedance transformation to deliver the gate current amplitude and rise time required for reliable thyristor turn-on. The V2 revision modified the transformer turns ratio to steepen the gate current rise time (dI/dt at the thyristor gate terminal), which reduces the statistical spread of turn-on delay across the six channels. Tighter channel-to-channel turn-on timing directly reduces instantaneous current imbalance between thyristor legs during the commutation interval, lowering peak junction temperature differentials and extending thyristor service life in continuous-duty applications.

The synchronization detection circuit locks the firing angle reference to the generator terminal voltage zero-crossing using a dedicated bandpass filter tuned to the rated grid frequency. The filter is hardware-selectable between 50 Hz and 60 Hz via an on-board jumper, rejecting harmonic content from the terminal voltage measurement that would otherwise introduce jitter into the zero-crossing detection and shift the effective firing angle. In installations where the generator terminal voltage contains significant 5th or 7th harmonic content — common in industrial plants with large variable-frequency drive loads — this filtering is the primary defense against firing angle drift without requiring software compensation in the AVR.

The PCB stackup uses dedicated ground planes separating the analog synchronization circuit, the digital firing logic, and the gate drive output stage. Ferrite bead filtering is applied at all inter-stage signal crossings to attenuate high-frequency noise conducted between domains. The conformal coating provides protection against condensation and conductive contamination — airborne carbon brush dust is a known failure mechanism for uncoated PCBs in generator hall environments, and the IEC 60068-2-30 compliant coating eliminates this failure mode under normal maintenance intervals.

System Integration Benefits

• Direct slot replacement, zero reconfiguration: The 3BHE006422R0002 installs into the UNS2861C-P rack slot without firmware changes, hardware rework, or AVR recalibration. Mechanical keying on the Eurocard connector prevents incorrect slot insertion.
• Hardware-timed gate pulses eliminate software jitter: Firing angle execution is derived from the hardware synchronization circuit, not from a software timer. This removes the latency variability introduced by operating system task scheduling, ensuring gate pulses are delivered within a fixed, bounded window every half-cycle regardless of AVR processor load.
• Per-channel fault detection via backplane bus: Each gate channel returns a pulse confirmation signal to the AVR board. A missing confirmation — caused by a failed optocoupler, open pulse transformer winding, or broken gate lead — generates a specific fault code on the AVR, allowing maintenance personnel to isolate the fault to this board without connecting an oscilloscope to the thyristor bridge.
• Improved thyristor current sharing in V2: The tighter channel-to-channel turn-on timing in the V2 revision reduces peak current imbalance between thyristor legs during commutation. In installations where thyristor junction temperature was previously the life-limiting factor, this improvement extends bridge service intervals measurably.
• Dual-channel AVR redundancy compatible: In UNITROL systems configured with primary and standby AVR channels, the drive board accepts gate enable signals from either channel. Automatic switchover from primary to standby does not require drive board intervention or reconfiguration, preserving excitation continuity during AVR channel faults.
• Frequency-agnostic deployment: The 50/60 Hz hardware jumper allows a single spare board to cover installations on both European and North American grid frequencies, reducing the number of distinct spare part numbers that a multinational operator must stock.
• Conformal coating for generator hall environments: The IEC 60068-2-30 compliant coating allows continuous operation in environments with elevated humidity, temperature cycling, and airborne particulates without accelerated corrosion of solder joints or PCB trace degradation.
• Sub-30-minute mean time to restore excitation: Because the board is a self-contained plug-in module with a defined fault signature on the backplane bus, a trained technician can swap the board and restore excitation control in under 30 minutes. In-situ repair of equivalent discrete gate drive circuitry typically requires several hours and specialized test equipment.
• Stable operation across full thermal operating range: The 0 °C to +55 °C operating range covers the ambient conditions found in both outdoor generator enclosures in temperate climates and indoor generator halls in tropical industrial facilities without derating.

Quality Assurance & Global Logistics

Every 3BHE006422R0002 unit supplied by siemensplc.com is sourced as genuine ABB OEM hardware. Each unit undergoes a structured incoming inspection: part number label verification against the ABB catalog, hardware revision confirmation (R0002 suffix), and visual inspection of the PCB for solder joint integrity, component seating, and conformal coating coverage uniformity. Units that pass visual inspection proceed to functional bench testing using a UNITROL-compatible test fixture. The fixture applies simulated firing-angle commands across the full angular range and verifies gate pulse output on all six channels using a calibrated oscilloscope, measuring pulse amplitude, rise time, and channel-to-channel timing offset. Isolation resistance between the control-side and gate-side circuits is measured and recorded. Units that meet all acceptance criteria are issued a test record documenting the measured values, which is available to the buyer on request.

Packaging uses anti-static ESD bags with humidity indicator cards, enclosed in rigid foam-lined cartons rated for international air freight handling per ISTA 2A. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared for customs clearance in the destination country. From our warehouse in Xiamen, China, DHL Express and FedEx International Priority services deliver to major industrial hubs in Europe, the Middle East, Southeast Asia, and the Americas within 3–7 business days under normal conditions. For plant-down situations requiring urgent dispatch, same-day shipment is available for orders confirmed before 14:00 CST. All units carry a 12-month warranty from the dispatch date, covering defects in materials and workmanship under operating conditions consistent with ABB UNITROL installation guidelines.
