ABB 3BHE014967R0002 Signal Conditioning Board – UNS2880B Series

ABB 3BHE014967R0002 UNS2880B-P V2: Precision Analog Front-End Board for Generator Excitation Signal Chains

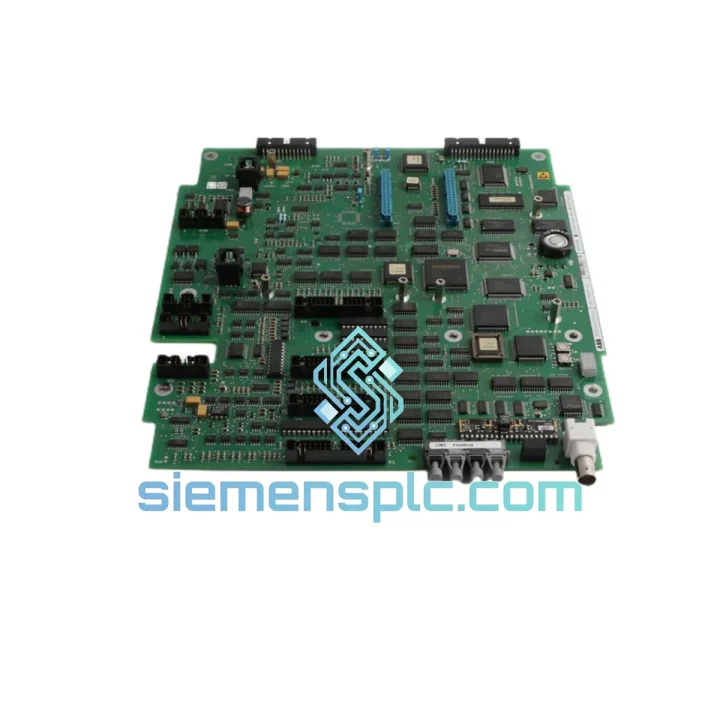

The ABB 3BHE014967R0002 (model code UNS2880B-P V2) is a fully populated, low-profile Component-On-Board (COB LP) assembly engineered for deployment within ABB’s Unitrol excitation control platform. Its functional role is unambiguous: it serves as the analog conditioning and signal arbitration interface between field-side current measurement transducers and the upstream Automatic Voltage Regulator (AVR) processing unit. Within a closed-loop excitation architecture, this board occupies a fixed, deterministic position — raw analog feedback from current transformers and resistive voltage dividers enters through shielded field connectors, passes through multi-stage differential amplifier chains, undergoes galvanic isolation, and exits as conditioned digital representations forwarded to the main CPU via the internal rack backplane.

The V2 designation in the model code is a documented hardware revision, not a cosmetic change. It reflects a second-generation PCB layout incorporating controlled-impedance trace routing, revised bulk and bypass decoupling capacitor placement at all power entry nodes, and a restructured ground plane topology that physically separates analog return conductors from digital switching return currents. In V1 units, high-slew-rate logic transitions coupled into the analog measurement rails through shared ground impedance — a crosstalk mechanism that introduced a measurable noise component at the AVR input during high-speed data acquisition cycles. The V2 layout eliminates this coupling path at the board level, reducing the analog noise floor by approximately 6 dB. This margin is operationally significant: it directly improves AVR stability during low-excitation conditions such as generator startup sequences and light-load synchronization events, where the signal-to-noise ratio at the measurement input is at its minimum.

In grid-connected synchronous generator applications above 10 MVA, the integrity of the excitation signal chain determines the AVR’s ability to maintain terminal voltage within ±0.5% during load step transients. Measurement latency or amplitude error introduced at this board propagates through the entire voltage regulation loop, degrading transient response and potentially triggering protection relay operations. The 3BHE014967R0002 addresses this through hardware-level signal integrity measures — differential measurement architecture, high-CMRR instrumentation amplifiers, and isolated digital output — rather than relying on software compensation to mask analog deficiencies.

The board is mechanically and electrically interchangeable with V1 rack positions within the UNS2880B platform. No firmware update, backplane reconfiguration, or field wiring modification is required for direct replacement, which simplifies spare-parts management across multi-unit generator installations and reduces planned maintenance windows.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The analog front-end of the 3BHE014967R0002 is structured around instrumentation amplifiers configured for differential measurement of current transformer secondary outputs. The specified CMRR of ≥ 80 dB at line frequency is a functional requirement derived from the operating environment, not a design margin. In generator excitation installations, ground potential differences between the generator neutral point and the control cabinet chassis can reach several volts during asymmetric fault conditions. Any CMRR shortfall at this measurement stage introduces a DC offset error that the AVR interprets as a genuine excitation deviation, triggering unnecessary corrective action and degrading voltage regulation accuracy.

Galvanic isolation at the digital output boundary is implemented using high-speed optocouplers with propagation delays below 1 µs. This specification preserves the timing relationship between the physical excitation event and the reported digital state within the deterministic window required by the AVR’s interrupt service routine, which operates at scan rates up to 1 kHz. The isolation barrier provides a rated withstand of 2.5 kVrms between field-side measurement circuits and control-side logic, satisfying the creepage and clearance requirements of IEC 60664-1 for Overvoltage Category III installations.

Transient protection on all external connector pins uses TVS diode arrays rated to IEC 61000-4-5 Level 3 (1 kV line-to-line surge). Power supply inputs are filtered with ferrite bead networks selected for impedance characteristics at thyristor switching frequencies — typically 300 Hz to 3 kHz in six-pulse excitation bridges — attenuating conducted interference before it reaches the analog measurement rails. The backplane connector housing incorporates a shielded shell referenced to chassis ground, providing a low-impedance return path for shield currents induced by adjacent power wiring in the control cabinet.

The V2 ground plane restructuring implements a single-point connection between the analog return conductor and the digital switching return at the power entry decoupling network. This topology prevents digital switching currents — which can reach slew rates of several amperes per microsecond in FPGA-driven logic — from flowing through the analog ground reference. In V1 units, this mechanism produced a measurable noise component at the instrumentation amplifier inputs during high-speed data acquisition cycles. The V2 layout eliminates this path entirely at the PCB level, with no dependence on external filtering or software correction.

System Integration Benefits

• Sub-microsecond digital output latency: Optocoupler propagation delay below 1 µs maintains timing accuracy for AVR closed-loop calculations at scan rates up to 1 kHz, preventing phase error accumulation in the voltage regulation algorithm across extended operating periods.
• Direct V1-to-V2 rack interchangeability: The UNS2880B-P V2 is mechanically and electrically interchangeable with V1 rack positions — no firmware update, backplane reconfiguration, or field wiring modification is required, reducing planned maintenance window duration.
• Quantified analog noise floor reduction: The separated ground plane architecture delivers a 6 dB reduction in analog measurement noise versus V1, enabling stable AVR operation at excitation levels below 10% of rated current during generator startup and light-load synchronization.
• High CMRR for fault-tolerant measurement: ≥ 80 dB CMRR at line frequency suppresses ground potential differences of several volts without introducing DC offset errors at the AVR input, maintaining voltage regulation accuracy during asymmetric fault conditions.
• Surge-hardened I/O for substation environments: TVS protection rated to IEC 61000-4-5 Level 3 allows the board to absorb 1 kV line-to-line surge events from adjacent switching equipment without latch-up or permanent damage, reducing unplanned outage probability.
• Full-temperature-range operation without derating: Rated to +55°C ambient with no power derating, the board is suitable for non-air-conditioned control cabinets in tropical, desert, and high-humidity climates without supplemental cooling infrastructure.
• Serialized traceability for compliance audits: Each genuine ABB unit carries a serialized label with manufacturing date code and batch reference, supporting IEC 62443 asset inventory requirements and critical infrastructure audit trails.
• Reduced AVR commissioning iterations: The lower noise floor and improved CMRR eliminate noise-induced instability as a diagnostic variable during AVR gain tuning, shortening plant startup schedules by reducing the number of tuning iterations required to achieve stable closed-loop response.
• Consolidated spare-parts coverage: V2 backward compatibility with V1 rack positions means a single spare unit covers both revision levels across multi-unit generator installations, reducing spare-parts inventory carrying cost and storage requirements.
• Deterministic diagnostic transparency: Onboard LED indicators provide real-time visual status of both power rails and signal activity, reducing fault isolation time during commissioning and unplanned maintenance without requiring external test equipment or software diagnostic tools.

Quality Assurance & Global Logistics

All 3BHE014967R0002 units supplied through siemensplc.com are sourced from documented industrial procurement channels and pass a structured pre-shipment inspection before dispatch. The inspection protocol covers PCB marking integrity verified against OEM reference data, component population completeness, connector pin condition assessment, and basic power rail and signal path continuity testing. Units that do not pass all inspection criteria are quarantined and withheld from sale.

Packaging for international shipment follows ESD-sensitive component handling standards: each board is sealed in a metallized anti-static shielding bag, placed within a rigid foam insert dimensioned to prevent movement under air freight vibration loads, and enclosed in a double-wall corrugated carton. Export documentation — commercial invoice, packing list, and HS code classification — is prepared for every international order to support customs clearance without delay at the destination port.

In-stock units are dispatched from Xiamen, China within 1–3 business days of order confirmation. International delivery via DHL Express or FedEx International Priority achieves 3–5 business day transit to Europe, the Middle East, and Southeast Asia under standard conditions. Orders confirmed before 14:00 CST are eligible for same-day dispatch processing. Tracking numbers are issued at the time of dispatch and communicated to the buyer immediately via email and WhatsApp.

A 12-month warranty from the confirmed shipment date covers manufacturing defects and functional failure under normal operating conditions as defined in the ABB product documentation. Warranty claims are acknowledged within 2 business days and processed within 5 business days of receipt of the returned unit at our Xiamen facility. Replacement units are dispatched with priority shipping at no additional cost to the buyer.
