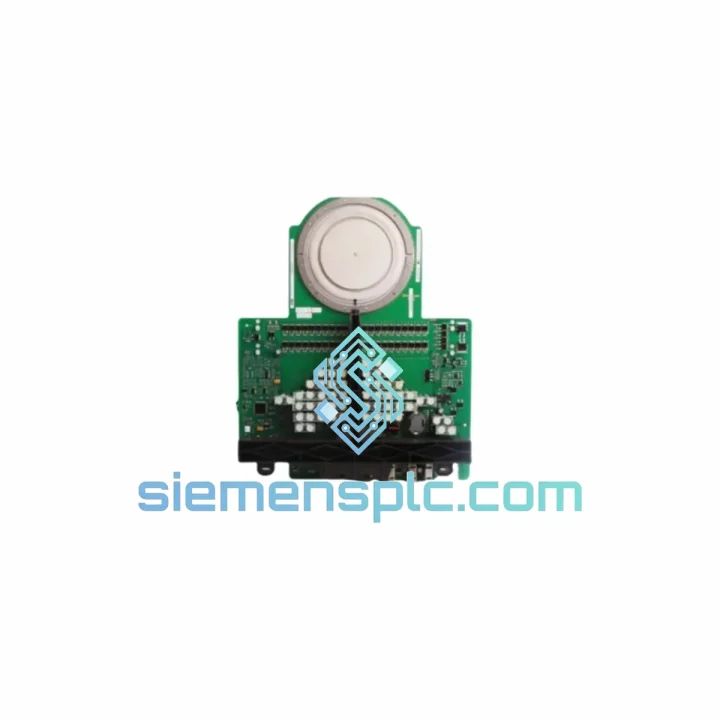

ABB 3BHE019719R0101 GVC736BE101 IGCT Gate Drive Module

ABB 3BHE019719R0101 GVC736BE101 — Stop the Bleed: Every Hour of MV Drive Downtime Costs You More Than This Module

Your ACS6000 tripped. The IGCT gate drive fault is confirmed. Production is at a standstill — and every hour the line stays cold, the loss compounds. Whether you’re running a SAG mill in Chile, a pipeline compressor in the Middle East, or a rolling mill in Southeast Asia, the math is brutal: medium-voltage drive downtime in heavy industry routinely runs $10,000–$50,000 per hour in lost throughput alone, before you factor in restart costs, contractual penalties, and the pressure on your maintenance team.

The ABB 3BHE019719R0101 (functional designation: GVC736BE101) is the IGCT gate drive module that sits at the heart of the ACS6000 power conversion stack. It generates and amplifies the precise gate firing pulses that switch the IGCT power semiconductors — the devices that actually convert grid power into controlled motor torque at multi-megawatt levels. When this module fails, the drive cannot fire its IGCTs. The result is a hard fault, a locked-out drive, and a production line that goes nowhere until the module is replaced.

We stock the 3BHE019719R0101 in Xiamen. It ships today via DHL Express or FedEx International Priority. You will have it on your bench — not in two weeks, not “subject to availability” — but within 48–72 hours to most major industrial hubs worldwide. That is the only number that matters right now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Identifying the fault before you pull the module: The ACS6000 control system will log a gate drive fault against a specific IGCT position (typically displayed as a fault code in the drive’s panel or via DriveWindow). Common fault codes pointing to the 3BHE019719R0101 include gate drive supply undervoltage, IGCT gate open-circuit, and gate drive communication loss. Before condemning the module, verify the fiber optic cables connecting the gate drive board to the control unit are seated and undamaged — a cracked fiber is a common misdiagnosis that wastes a module swap.

Power-down and isolation procedure: The ACS6000 operates at medium voltage (typically 3–6.9 kV on the DC bus). Full isolation is non-negotiable. Follow ABB’s lockout/tagout procedure for the specific drive cabinet. Confirm DC bus voltage has discharged to safe levels using a calibrated high-voltage meter before opening the power cell. Do not rely on the drive’s internal discharge indicator alone — capacitor bank discharge times vary with bus voltage and load history.

Module extraction: The GVC736BE101 is mounted on a sub-rack within the IGCT power cell. Note the fiber optic routing before disconnecting — each fiber corresponds to a specific IGCT gate position, and incorrect reconnection will cause immediate re-fault or, worse, a shoot-through event on power-up. Photograph the fiber layout before removal. Label each fiber if they are not already color-coded or numbered on your specific drive revision.

Replacement and address configuration: Unlike some modular drive architectures, the ACS6000 gate drive modules do not require manual DIP switch addressing in most configurations — the module position within the power cell rack determines its logical address in the drive’s control topology. However, confirm this against your drive’s hardware manual revision, as early ACS6000 builds had address jumpers on the GVC-series boards. If your replacement module comes from a different drive serial, check for any hardware revision differences (PCB revision markings) and cross-reference with ABB’s compatibility matrix before installation.

Firmware considerations: The 3BHE019719R0101 itself does not carry user-programmable firmware in the conventional sense — its gate drive logic is implemented in hardware. However, the drive’s main control unit (DCF/DCS board) must be running a firmware version compatible with the IGCT type installed. If you are replacing an IGCT assembly alongside the gate drive module, verify firmware compatibility via ABB’s DriveWindow tool before energizing.

First power-up after replacement: Perform a gate drive self-test via the drive’s commissioning menu before enabling the main contactor. The ACS6000 will run a gate pulse verification sequence that confirms each IGCT is firing correctly. A clean self-test result before full energization is your confirmation that the swap was successful. If the fault persists after a verified module installation, the IGCT semiconductor itself may be the root cause — the gate drive module and the IGCT device are separate failure modes and should be diagnosed independently.

Reliability in Harsh Conditions

The GVC736BE101 was not designed for a climate-controlled server room. It was engineered to operate inside medium-voltage drive cabinets in environments that would destroy consumer-grade electronics within weeks. ABB’s ACS6000 platform is deployed in open-pit mines in the Atacama Desert, offshore platforms in the North Sea, and steel mills in Southeast Asia — environments defined by wide temperature swings, persistent vibration, airborne particulates, and humidity levels that corrode unprotected PCBs in months.

The gate drive board’s PCB is conformally coated to resist moisture ingress and condensation — a critical feature in coastal industrial sites and tropical climates where humidity regularly exceeds 90% RH. The optical isolation architecture eliminates ground loop interference from the high-voltage switching transients that are an unavoidable byproduct of IGCT operation at multi-megawatt power levels. Connector systems are rated for the vibration profiles typical of mill and compressor installations, where structural vibration is continuous rather than incidental.

Thermal management is handled at the drive cabinet level, but the module’s component selection accounts for the elevated ambient temperatures inside a power cell during full-load operation. ABB’s industrial-grade component sourcing for the GVC-series boards means the electrolytic capacitors, gate drive ICs, and isolation transformers on this board are specified for extended service life under continuous thermal stress — not the 1,000-hour consumer ratings that cause premature failures in counterfeit or substandard replacement parts.

Every unit we ship has been visually inspected for PCB damage, connector integrity, and conformal coating condition. Refurbished units undergo functional gate signal output testing before dispatch. We do not ship modules with cracked PCBs, corroded connectors, or compromised coating — the failure modes we see most often in field returns from other suppliers.

Global Express Logistics

Our dispatch warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express services. Xiamen’s port and air freight infrastructure means we are not dependent on consolidation routing through Shanghai or Shenzhen, which translates directly into faster first-mile transit and more reliable departure schedules.

For urgent orders confirmed before 14:00 CST, same-day dispatch is standard. DHL Express transit times from Xiamen run 24–48 hours to Singapore, Hong Kong, and major Southeast Asian hubs; 48–72 hours to the Middle East, Europe, and Australia; and 72–96 hours to North and South America. FedEx International Priority offers comparable transit windows with strong performance into the Americas and Europe.

Every shipment includes a full commercial invoice with HS code classification, a detailed packing list, and — on request — a certificate of origin and functional test report. For customers in countries with strict import controls on industrial electronics, we can prepare additional documentation to support customs clearance. Anti-static packaging with moisture barrier film and shock-absorbing foam is standard for all gate drive module shipments — the same packaging specification we use for our own inventory storage.

We provide full tracking from dispatch to delivery. For shipments to remote industrial sites, we can coordinate with your freight forwarder or arrange delivery to a nominated agent in the nearest major city. If your plant is in a location where express courier delivery is unreliable, contact us — we have routed shipments to mining camps, offshore supply bases, and remote power stations before, and we know how to get parts to where they actually need to go.
