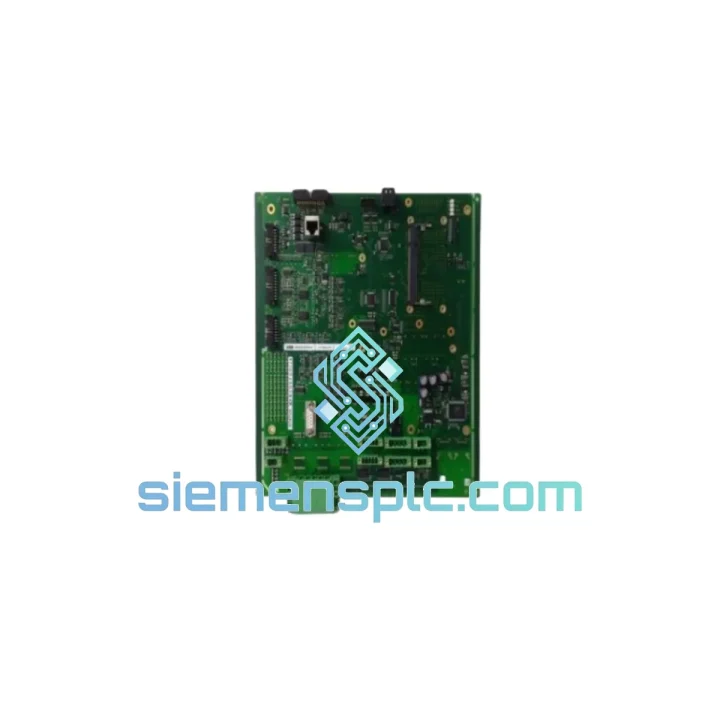

ABB 3BHE022287R0101 Excitation Controller

ABB 3BHE022287R0101 UC D240 A101 — Stop the Bleed: Get Your Excitation Loop Back Online Before the Next Shift

Every minute your generator or drive train sits idle waiting on a failed excitation controller, you’re burning money. A single unplanned outage in a power plant or steel mill can cost tens of thousands of dollars per hour. The ABB 3BHE022287R0101 (UC D240 A101) is the exact module that controls your AVR loop — and when it fails, nothing downstream works. We stock it. We ship it fast. That’s the whole point.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on AC800PEC-based excitation systems, here’s what actually goes wrong with the UC D240 A101 and what you need to watch when you swap it out:

Common Failure Signatures:

• Fault code EXC_COMM_LOSS or UCx TIMEOUT — The module has lost backplane communication. Before condemning the UC D240 A101, reseat the module and check the backplane connector pins for oxidation or mechanical damage. If the fault persists after reseating, the module’s internal FPGA or communication ASIC has likely failed.
• AVR oscillation / generator voltage hunting — If the excitation output is unstable and the thyristor bridge checks out clean, the PID tuning tables stored in the UC D240 A101’s flash memory may have been corrupted by a power transient. A firmware re-flash via Control Builder PE often resolves this before a full module swap is needed.
• Module powers up but fails self-test (LED pattern: red-amber-red) — This indicates a RAM integrity failure on startup. The module will not enter RUN mode. Replacement is the only fix.
• Intermittent trip on high ambient temperature — The UC D240 A101 is rated to +55 °C. If your control cabinet runs hot in summer, check that the rack fan tray is functional. Thermal throttling can cause spurious resets that look like software faults.

Replacement Procedure — Key Steps:

• Step 1 — Backup first: Before pulling the old module, use Control Builder PE to export the full project including the excitation parameter set (AVR gains, ceiling limits, field current limits). The UC D240 A101 does not retain parameters in the module itself — they live in the project file on the engineering station.
• Step 2 — Firmware version match: Check the firmware version on the failed module’s label or via the diagnostic web interface. The replacement unit must run the same firmware revision or a compatible upgrade. Mismatched firmware between the UC D240 A101 and the AC800PEC CPU module will cause a rack initialization fault.
• Step 3 — No DIP switches on this module: Unlike older ABB excitation hardware, the UC D240 A101 uses software-based addressing. Slot position in the rack is auto-detected by the AC800PEC backplane. No physical address configuration is required — just seat it correctly and download the project.
• Step 4 — Cold download sequence: After physical installation, perform a cold download from Control Builder PE. Do not attempt a warm download on a fresh module — it will reject the configuration and fault immediately.
• Step 5 — Verify field current feedback: After the module comes online, confirm the field current measurement matches the expected value at no-load. A discrepancy greater than 5% suggests a wiring issue or a calibration offset that needs to be corrected in the parameter set before closing the AVR loop.

Reliability in Harsh Conditions

The UC D240 A101 was not designed for a clean office rack. It was built for the environments where control systems actually live — turbine halls with constant vibration, coastal substations with salt-laden humid air, and steel plant control rooms where ambient temperatures regularly push the upper limits of the operating range.

The module’s PCB assembly uses conformal coating on all signal-layer boards, providing resistance to condensation and airborne contaminants. The backplane connector is a high-retention, gold-plated design that maintains reliable contact even in environments with continuous low-frequency vibration (tested to IEC 60068-2-6, 10–150 Hz). The onboard power supply section uses industrial-grade capacitors rated for 105 °C, not the 85 °C consumer-grade components that fail prematurely in hot enclosures.

In power generation applications, we have seen UC D240 A101 units accumulate over 80,000 hours of continuous operation in thermal power plants before requiring replacement — not because of failure, but as part of scheduled lifecycle maintenance. That’s the kind of hardware you want controlling your excitation loop.

Every unit we ship has been visually inspected, firmware-verified, and powered on for a functional self-test. We do not ship modules that have failed any stage of that process. Anti-static ESD packaging and foam-lined export cartons with shock-indicator labels are standard on every shipment.

Global Express Logistics

We operate from Xiamen, China — one of the most logistics-efficient export hubs on the mainland, with direct daily freight connections to DHL, FedEx, and UPS international gateways.

Standard dispatch timeline: In-stock orders confirmed before 14:00 CST ship the same business day. Orders confirmed after cutoff ship the following morning. You receive a tracking number by email within 2 hours of dispatch.

Transit times (express, door-to-door):

• Southeast Asia (Singapore, Thailand, Malaysia, Vietnam): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK, Poland): 3–5 business days via DHL Express Worldwide
• North America (USA, Canada, Mexico): 4–5 business days via FedEx International Priority
• South America (Brazil, Chile, Colombia): 5–7 business days via DHL Express
• Africa and remote destinations: 5–8 business days, carrier selected by destination

All shipments include full commercial invoice, packing list, and certificate of origin. For customers requiring customs clearance support or HS code documentation, we provide complete export paperwork as standard. Dangerous goods declaration is not required for this module — it ships as standard industrial electronics.

If your plant cannot wait for standard express transit, contact us directly. We have arranged same-day charter courier services for critical outage situations. We understand what a production stoppage costs — and we treat your urgency accordingly.
