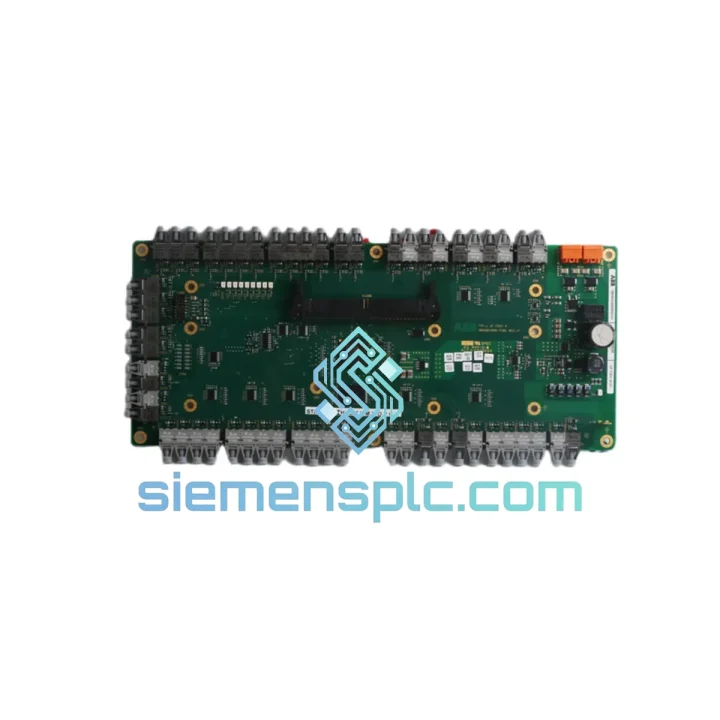

ABB 3BHE024855R0101 UFC921A101 Inverter Control Board

ABB 3BHE024855R0101 UFC921A101 – Stop the Clock on Your ACS800/ACS1000 Downtime

Every minute an ACS800 or ACS1000 drive sits dead, your production line is bleeding money. A failed IGBT gate-drive board is one of the most common — and most misdiagnosed — causes of unplanned drive shutdowns. The ABB 3BHE024855R0101 UFC921A101 is the exact OEM inverter control board your drive needs. We stock it in Xiamen, we test it before it ships, and we can have it moving toward your facility within hours of your order confirmation.

This is not a generic compatible board. This is the original ABB-engineered UFC921A101 assembly, sourced through verified industrial channels, carrying full traceability documentation. When your maintenance window is measured in hours, there is no room for substitutes.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

How to confirm the UFC921A101 is the failed component — not the IGBT modules themselves:

Before you pull the board, rule out the obvious. Check the drive fault log for codes in the FF-xx or A-xx range — specifically FF-52 (IGBT overtemperature), FF-53 (IGBT short circuit), and A-41 (gate drive supply fault). If you’re seeing these codes with no corresponding thermal event and the IGBT modules themselves test clean with a diode checker, the gate-drive board is your culprit.

Step-by-step board swap procedure:

1. LOTO first, always. Isolate the drive from mains, discharge the DC bus to below 50 V (verify with a calibrated meter — do not trust the panel indicator alone), and wait the full discharge time specified in your drive’s hardware manual.
2. Photograph the fiber-optic routing before disconnecting anything. The DDCS fiber connections on the UFC921A101 are color-coded, but field conditions make it easy to swap TX/RX. A photo takes 10 seconds and saves 2 hours of fault-chasing.
3. Label and disconnect the gate-drive ribbon cables in sequence. These connectors are keyed but the locking tabs are fragile on older boards — use a flat spudger, not a screwdriver.
4. Seat the replacement board fully before securing any fasteners. The board-to-backplane connector requires firm, even pressure. A partially seated connector will cause intermittent gate-drive faults that are nearly impossible to diagnose under load.
5. No DIP switch or address configuration is required on the UFC921A101 — it is not a self-addressing module. Drive parameters stored in the RMIO/RDCU control board are unaffected by this swap. You do not need to re-enter motor data or PID tuning.
6. Firmware note: The UFC921A101 carries embedded gate-drive firmware that is factory-matched to the board revision. Confirm the replacement board revision matches your existing unit (check the label suffix). Cross-revision substitution is generally safe within the same ACS800/ACS1000 generation, but verify with ABB documentation for your specific drive frame size.
7. First power-on: Bring the drive up in local control with no load connected. Run a short ID run (if the drive supports it) to verify gate-drive symmetry across all IGBT phases before reconnecting the mechanical load.

Common fault codes resolved by this replacement:

• FF-52 / FF-53 — IGBT overtemperature or short-circuit (gate-drive origin)
• A-41 — Gate drive auxiliary power supply fault
• FF-01 — DC overvoltage triggered by asymmetric switching (one phase gate-drive degraded)
• Intermittent output phase loss with no upstream wiring fault
• Drive trips at high load but runs clean at no-load (classic sign of a degraded gate-drive channel)

Reliability in Harsh Conditions

The UFC921A101 was not designed for a climate-controlled server room. ABB engineered it for the environments where ACS800 and ACS1000 drives actually live — cement plant control rooms with 45 °C ambient and airborne limestone dust, offshore pump stations with salt-laden humid air, steel mill auxiliary panels exposed to radiant heat and vibration from rolling equipment.

The PCB carries a full conformal coating that seals the board against humidity ingress, condensation cycles, and conductive particulate contamination. The fiber-optic DDCS interface provides complete galvanic isolation between the low-voltage control logic and the high-voltage inverter section, eliminating ground-loop noise that plagues conventional copper-coupled gate-drive designs in electrically noisy industrial environments.

On-board isolated DC/DC converters power each gate-drive channel independently. This architecture means a single channel fault — caused by a failing IGBT module, for example — cannot cascade into a board-level failure that takes out all three phases simultaneously. The board fails gracefully, logs the fault, and protects the rest of the drive.

Every replacement unit we ship has been subjected to incoming inspection: visual PCB examination under magnification, component-level continuity verification, and a functional power-on test under controlled conditions. Units that do not pass are not listed. The 12-month warranty is not a marketing claim — it is backed by test records we retain for every serial number we dispatch.

Global Express Logistics

Our warehouse is located in Xiamen, China — a major international freight hub with direct DHL and FedEx express lanes to Europe, North America, Southeast Asia, the Middle East, and Australia. For urgent orders confirmed before 14:00 CST, same-day dispatch is available.

Typical transit times from Xiamen:

• Europe (Germany, UK, Netherlands): 3–5 business days via DHL Express
• North America (USA, Canada): 4–6 business days via FedEx International Priority
• Southeast Asia (Singapore, Thailand, Vietnam): 2–3 business days
• Middle East (UAE, Saudi Arabia): 3–5 business days
• Australia / New Zealand: 4–6 business days

All shipments include a commercial invoice, packing list, and certificate of origin. For customers requiring customs pre-clearance documentation or HS code declarations, we prepare these at no additional charge. The board ships in an anti-static bag inside a foam-lined carton with a humidity indicator card — packaging that meets the requirements of both DHL and FedEx for sensitive electronic components.

For AOG-equivalent industrial emergencies — a plant shutdown with every hour costing thousands — contact us directly on WhatsApp for real-time coordination of the fastest available routing. We have dispatched boards to active shutdown sites in under 4 hours from inquiry to airway bill generation.
