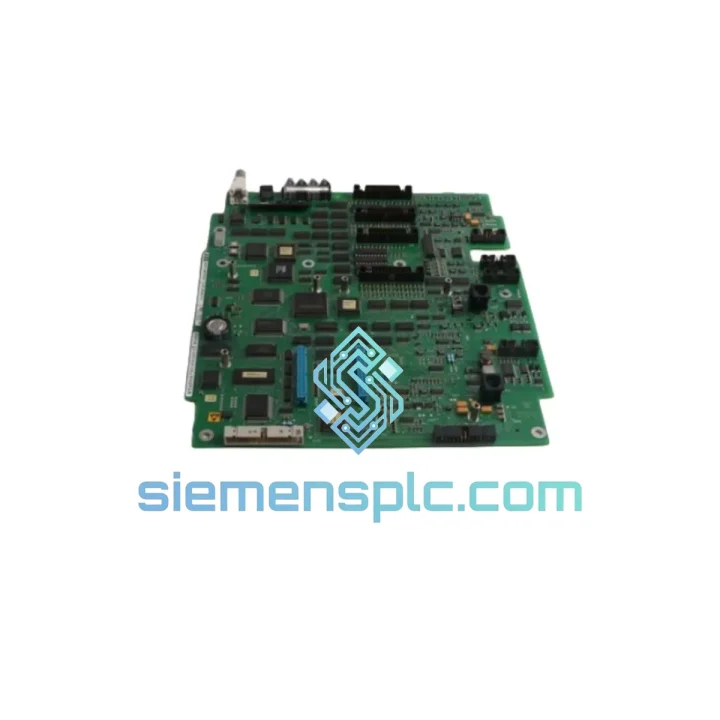

ABB 3BHE037649R0101 Drive Control Board – ACS800 Series

ABB 3BHE037649R0101 – Gate Drive & Signal Conditioning Board for ACS800 High-Power AC Drive Systems

The ABB 3BHE037649R0101 is a purpose-built drive control board that occupies the critical interface layer between the supervisory control unit and the IGBT power stack in ABB ACS800-series variable frequency drives. Its primary function is to receive pulse-width modulation (PWM) commands from the drive’s main control board (RMIO or RDCU), condition and amplify those signals into gate-drive pulses with precisely controlled rise/fall timing, and simultaneously monitor DC bus voltage, phase current feedback, and fault status lines. This bidirectional signal architecture ensures that the power conversion stage operates within safe switching boundaries at all times, while returning real-time diagnostic data to the supervisory layer for closed-loop protection logic.

In large-scale process automation environments — petrochemical compressor trains, rolling mill drives, marine propulsion systems — the integrity of this gate-drive interface directly determines drive availability. A degraded or counterfeit board introduces timing jitter into IGBT switching, which manifests as increased harmonic distortion, elevated thermal stress on the power module, and ultimately premature IGBT failure. The 3BHE037649R0101 is engineered to eliminate these failure modes through a combination of optically isolated signal paths, precision analog front-end circuitry, and robust PCB construction rated for continuous industrial duty.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3BHE037649R0101 implements a multi-stage signal chain that begins at the fiber-optic receiver interface. Incoming PWM data from the RMIO/RDCU board is decoded by a dedicated FPGA or ASIC logic block, which reconstructs the six-channel gate-drive pattern with sub-microsecond timing accuracy. Each channel passes through an independent optocoupler stage — typically a high-speed IGBT driver IC with integrated Miller clamp — before reaching the gate resistor network that sets the IGBT switching speed. This per-channel isolation architecture means a fault on one phase leg does not propagate electrically to adjacent channels, a critical design requirement in three-phase bridge topologies where cross-conduction would be catastrophic.

The DC bus voltage sensing circuit uses a precision resistor divider with a differential amplifier front-end, feeding an analog comparator with a hardware-latched overvoltage trip output. This trip signal bypasses the digital control path entirely and drives the gate-drive enable lines low within 2 µs — a response time that is independent of firmware execution latency. Similarly, the desaturation detection circuit monitors collector-emitter voltage across each IGBT during the on-state; a rise above the desaturation threshold (indicating overcurrent or short-circuit) triggers an immediate hardware shutdown of the affected channel and asserts a fault flag to the supervisory board via the return fiber-optic link.

EMC performance is addressed at the PCB layout level. High-frequency gate-drive traces are routed with controlled impedance and shielded ground planes to minimize radiated emissions. Decoupling capacitor arrays are placed at each driver IC power pin to suppress switching transients on the local supply rail. The board’s ground plane topology separates the analog sensing ground from the digital logic ground, with a single-point star connection to prevent ground loop currents from corrupting low-level analog measurements. These design practices collectively allow the board to operate within the EMC limits defined by IEC 61800-3 Category C3 for industrial drive environments.

System Integration Benefits

• Deterministic switching timing: FPGA-based PWM decoding eliminates software jitter, ensuring gate pulses are delivered with consistent dead-time margins across all operating conditions — a prerequisite for stable torque control at low speeds.
• Hardware-level fault isolation: Desaturation detection and overvoltage trip circuits operate independently of the drive’s firmware, providing a protection layer that remains active even during a control board software fault or watchdog reset.
• Per-channel optical isolation: Each of the six gate-drive channels has its own isolation barrier, preventing fault propagation between phase legs and allowing the drive to execute controlled shutdown sequences rather than uncontrolled trips.
• Real-time diagnostic transparency: Fault status bits are returned to the RMIO/RDCU board via the fiber-optic return channel within one PWM cycle, enabling the drive’s fault logger to record precise fault timestamps and channel identification for post-event analysis.
• Reduced MTTR: The board’s plug-in form factor and OEM-identical connector layout allow a trained technician to complete a board swap in under 30 minutes without drive reconfiguration, directly reducing mean time to repair in production environments.
• Thermal margin preservation: Accurate gate-drive timing prevents IGBT switching losses from exceeding datasheet values, maintaining the thermal margin that determines long-term power module reliability.
• Fieldbus diagnostic integration: In ACS800 systems configured with PROFIBUS-DP or Modbus RTU adapters, the board’s fault status data is accessible via the drive’s parameter map, enabling SCADA and DCS systems to log drive health data without additional hardware.
• Conformal coating durability: The PCB’s conformal coating extends operational reliability in environments with elevated humidity, airborne particulates, or mild chemical exposure — common in pulp & paper, wastewater, and food processing installations.
• Cross-platform compatibility verification: Before dispatch, each unit is cross-referenced against ABB’s ACS800 type code matrix to confirm compatibility with the customer’s specific drive variant, eliminating the risk of incorrect module installation.

Quality Assurance & Global Logistics

Every 3BHE037649R0101 unit stocked at siemensplc.com undergoes a structured incoming inspection protocol. Visual PCB audit checks for component integrity, solder joint quality, and absence of physical damage or counterfeit indicators. Serial numbers and date codes are recorded and cross-referenced against ABB’s manufacturing documentation where available. Functional units are bench-tested for gate-drive output signal integrity and fault response behavior prior to storage.

Packaging follows ESD-safe handling standards: units are sealed in anti-static bags with desiccant packs and humidity indicator cards, then cushioned in foam-lined cartons rated for international air freight handling. From our warehouse in Xiamen, China, shipments are dispatched via DHL Express, FedEx International Priority, or UPS Worldwide Expedited — all with full tracking and commercial invoice documentation. Typical transit times are 3–5 business days to Europe and North America, 2–4 days to Southeast Asia and the Middle East. For urgent plant shutdowns, same-day dispatch is available for orders confirmed before 14:00 CST. A Certificate of Conformance (CoC) is issued with every shipment; test reports for refurbished units are available upon request. All units carry a 12-month warranty from the shipment date, covering manufacturing defects and functional failure under rated operating conditions.
