ABB 3BSE004939R2 SDCS-PIN-48: Cut the Downtime Before It Cuts Your Margin

Your DCS500 or DCS600 drive is offline. The fault log is pointing at thyristor firing asymmetry. You’ve already ruled out the SCR bridge and the gate cables — the SDCS-PIN-48 pulse isolation board is the problem. You need a verified replacement unit in your hands before the next shift, not in three weeks from a distributor’s back-order queue.

We hold physical stock of the ABB 3BSE004939R2 SDCS-PIN-48 in our Xiamen facility. Not allocated stock. Not inbound stock. Units that are on the shelf, tested against reference parameters, packed in ESD-safe materials, and ready to leave with DHL or FedEx today. If you confirm before 14:00 CST, the board ships the same business day — full stop.

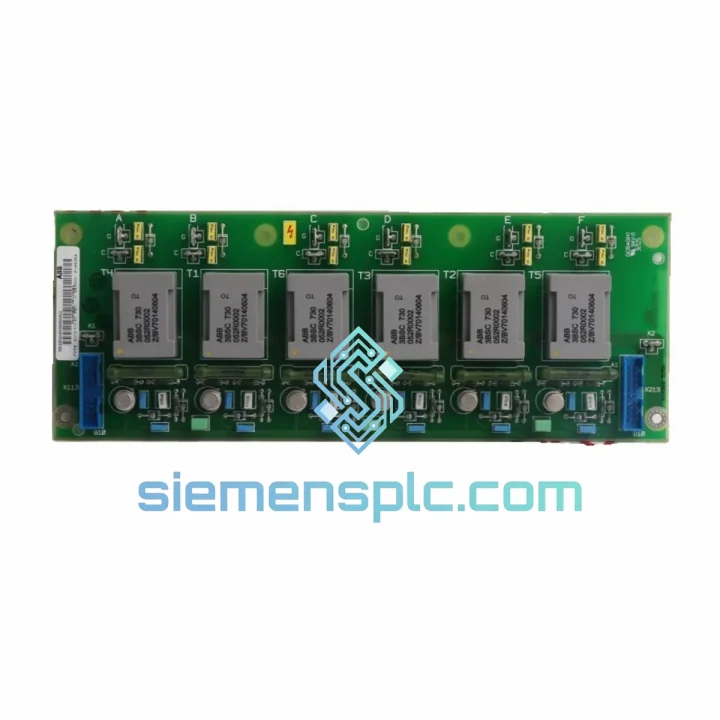

The SDCS-PIN-48 is the galvanic isolation stage between the SDCS-CON-4 control board and the thyristor power bridge. It takes the low-level firing commands from the control board and converts them into isolated gate pulses capable of driving the SCR gates without creating a ground loop between the control and power circuits. When this board degrades — typically from thermal stress in high-cycle applications or from a single upstream overcurrent event — the drive loses the ability to fire thyristors symmetrically. The result is torque ripple, nuisance tripping, or a hard fault lockout. None of those outcomes are acceptable when you’re running a continuous process.

Every unit we supply is sourced through traceable channels, cross-checked against the ABB part number and revision markings, and visually inspected for transformer discolouration, PCB delamination, and connector integrity before it goes into stock. We do not sell boards we would not install ourselves.

⚡ URGENT REQUIREMENT?
Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Before you pull the board, spend five minutes on diagnostics. Misidentifying the fault source wastes time you don’t have.

Fault codes that point to SDCS-PIN-48 failure:

• F16 — Thyristor firing asymmetry: The drive has detected unequal conduction angles across the SCR bridge. If the SCRs themselves test good with a gate tester, the pulse board is the next suspect.
• F17 — Overcurrent at startup: Weak or missing gate pulses on one or more channels cause partial conduction, which the drive interprets as an overcurrent condition before the motor even reaches rated speed.
• Intermittent torque ripple without a hard fault: One of the six pulse transformer channels is degraded but not fully open. The drive fires, but unevenly. This is the hardest failure mode to catch — it shows up as mechanical vibration before it shows up in the fault log.

Pre-replacement checks (do these before ordering if time allows):

• Reseat ribbon connectors X1 and X2 between SDCS-CON-4 and SDCS-PIN-48. Micro-fretting on these connectors from vibration is a documented failure mode and costs nothing to rule out.
• Measure DC bus voltage at the drive terminals. A supply rail more than 5% below nominal causes marginal gate pulse amplitude — the board is not at fault, the supply is.
• Check the SDCS-CON-4 control board outputs with an oscilloscope if available. If the firing commands leaving the control board are already malformed, replacing the PIN board will not fix the fault.

Replacement procedure — field-verified sequence:

1. Open the drive cabinet and apply LOTO. Measure DC bus voltage across the main capacitor bank — do not proceed until the reading is below 50 V DC.
2. Photograph the existing board, cable routing, and connector positions before touching anything.
3. Remove the four M3 standoff screws securing the SDCS-PIN-48. Disconnect ribbon cables X1 and X2 — both are keyed and will only seat in one orientation.
4. Install the replacement board. No DIP switches, no address jumpers, no parameter entry required. The SDCS-PIN-48 is a passive stage — it has no configurable identity on the SDCS bus.
5. Reconnect cables, close the cabinet, restore power. On DCS500 platforms, navigate to parameter 9.08 and set it to 1 to trigger the firing angle self-test. Confirm the drive completes the test without fault.
6. Run the drive unloaded for five minutes, then under partial load for 30 minutes. Monitor the fault log. If no firing faults appear, return the drive to production.

No firmware upload. No parameter migration. No specialist tools. The SDCS-PIN-48 is one of the few boards in the SDCS architecture that a competent maintenance technician can swap without a laptop or ABB service software.

Reliability in Harsh Conditions

The environments where DC drives earn their keep are not kind to electronics. Paper mills run wet. Steel plants run hot and dirty. Mining hoists run with constant vibration. The SDCS-PIN-48 was not designed for a climate-controlled server room — it was designed for these places.

Thermal endurance: The pulse transformers on this board are rated for continuous operation at 55 °C ambient with the drive’s internal cooling fans running. ABB’s design margin accounts for the thermal cycling that occurs every time a drive starts cold in the morning and reaches operating temperature under load. The transformer cores are selected for low core loss at the firing frequencies used in DC drive applications, which keeps self-heating within bounds even in high-cycle reversing applications.

Vibration resistance: Through-hole construction at all transformer termination points is not an accident. Surface-mount joints fail under sustained vibration — through-hole joints do not. In applications like rolling mill drives or compressor drives where the motor itself generates significant vibration, this construction choice is the difference between a board that lasts a decade and one that fails in two years.

Contamination protection: The conformal coating applied to genuine ABB SDCS boards provides a measurable barrier against conductive contamination — carbon dust from brush gear, metallic particles from machining, oil mist from hydraulic systems. Surface tracking between high-voltage traces is a real failure mechanism on uncoated boards in these environments. The coating is one of the clearest indicators of a genuine ABB board versus a counterfeit — look for uniform coverage under UV light if you have any doubt about a unit’s provenance.

Humidity cycling: Drives installed in outdoor substations or unheated buildings experience condensation during cold startups. The conformal coating provides a degree of protection here as well, but the more important factor is the quality of the PCB substrate itself. ABB uses FR4 laminate with controlled moisture absorption characteristics — boards that absorb moisture swell, delaminate, and develop leakage paths between traces. Genuine boards do not.

Global Express Logistics

Our dispatch location is Xiamen, Fujian Province, China. Xiamen is a designated export hub with direct access to DHL, FedEx, and UPS international gateway operations. For plant shutdown scenarios, the logistics chain from our warehouse to your receiving dock is as follows:

• DHL Express Worldwide: Xiamen to Germany, UK, Netherlands, and Poland — 2 to 3 business days. Xiamen to Southeast Asia — 1 to 2 business days. Fastest option for European customers.
• FedEx International Priority: Xiamen to the United States, Canada, and Mexico — 3 to 4 business days. Preferred by North American automotive and mining sector customers with FedEx account relationships.
• UPS Worldwide Express: Available as an alternative for customers with existing UPS corporate accounts and negotiated rates.
• Same-day dispatch cutoff: Payment confirmed before 14:00 CST ships the same business day. Orders confirmed after cutoff ship the following morning.
• Export documentation: Commercial invoice, packing list, and certificate of origin are prepared for every shipment. Standard HS Code 8537.10 is applied. Notify your customs broker before the shipment arrives — pre-clearance eliminates the single biggest delay in urgent cross-border parts logistics.
• Packaging standard: Anti-static shielding bag, foam-lined outer carton, silica gel desiccant. The board arrives in the same electrical and mechanical condition it left our warehouse.

If your line is down and you need a confirmed ship date before you raise a purchase order, contact us directly. We will verify stock, confirm the carrier timeline for your destination, and provide a tracking number the same day the order ships.
