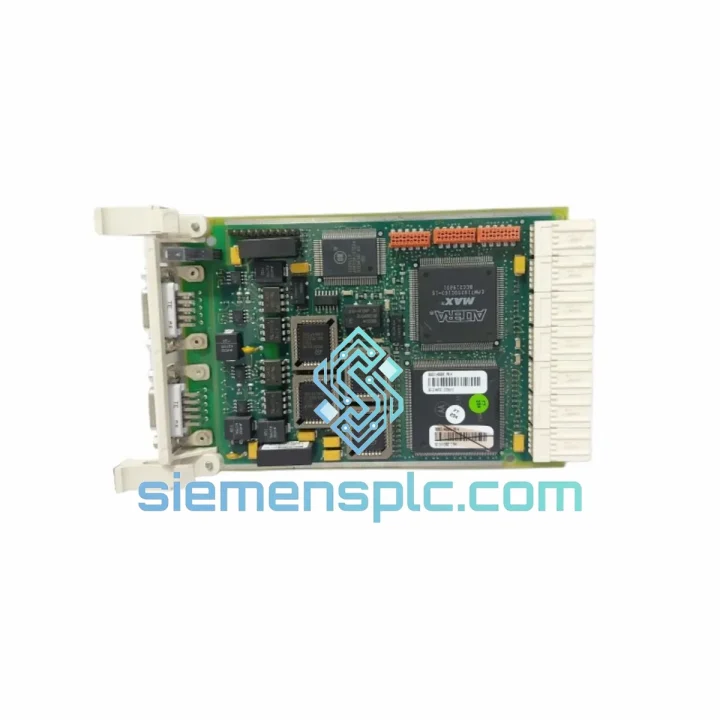

ABB 3BSE014666R1 CI541V1 PROFIBUS Interface Module

ABB 3BSE014666R1 CI541V1 — Stop the Bleeding: Get Your PROFIBUS Link Back Online Today

Every minute your AC 800F controller sits offline waiting for a CI541V1 sub-module, your plant is hemorrhaging money. Batch aborted. SIL loop bypassed. Maintenance crew standing by at overtime rates. We’ve been there — and we keep this module on the shelf precisely because that call comes at 2 AM on a Sunday. Ship from Xiamen within 24 hours via DHL Express or FedEx International Priority. No lead-time games, no “check back in two weeks.”

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The CI541V1 fails in predictable ways. Here’s what 10 years of field calls have taught us about this module before you even crack the cabinet:

Common Fault Codes & Root Causes

• ERR LED solid red / BF (Bus Fault) on AC 800F: 90% of the time this is a dead CI541V1 or a broken PROFIBUS cable at the DB9 connector. Swap the module first — it’s faster than chasing cable continuity across a 500-meter trunk.
• Intermittent slave dropouts (event log shows “DP slave X communication error”): Often caused by CI541V1 firmware mismatch after a controller upgrade. Check that the sub-module firmware version matches the AC 800F CPU firmware baseline. Mismatched versions cause cyclic data corruption that looks like a field device fault.
• Module not recognized after hot-swap: The CI541V1 supports field replacement, but the AC 800F must complete its self-addressing scan after insertion. Wait 60–90 seconds before forcing a re-download. Pulling the module before the scan completes corrupts the GSD parameter set in the controller’s non-volatile memory.
• PROFIBUS address conflict (multiple slaves showing same address): If you’re replacing a failed CI541V1 that was acting as a DP master, verify the master station address (default: 1) hasn’t been duplicated by a second device on the segment. Use a PROFIBUS tester (e.g., ProfiTrace) to scan the bus before powering the new module.

Step-by-Step Replacement Procedure

1. Document current configuration: Before pulling the failed module, export the AC 800F project from Control Builder F. Confirm the PROFIBUS DP network topology is saved — slave addresses, GSD files, and cyclic I/O mapping.
2. Set the plant to safe state: Place all affected control loops in manual. Notify the DCS operator. If SIL loops are involved, engage the bypass per your MOC procedure.
3. Power down the controller slot (if non-hot-swap configuration): The CI541V1 is a sub-module that plugs into the CI541 carrier. On most AC 800F racks, the carrier can be removed with the rack powered, but confirm your specific rack revision in the hardware manual (3BSE041434R201).
4. Remove the failed CI541V1: Press the release latch, slide the sub-module out. Inspect the backplane connector for bent pins or corrosion — a damaged connector on the carrier will kill the replacement module within weeks.
5. Insert the new 3BSE014666R1: Slide in until the latch clicks. Do not force. Misaligned insertion bends the backplane pins.
6. Firmware check: Power up and check the module firmware version via Control Builder F → Hardware → CI541V1 properties. If the firmware is older than the CPU baseline, perform a firmware update via the Ethernet service port before going online.
7. Re-download and verify: Download the project to the controller. Monitor the PROFIBUS DP diagnostic view for 5 minutes. All slaves should show green. Check cyclic data values against field readings to confirm correct I/O mapping.
8. Return loops to auto: Restore control loops one at a time. Confirm PV tracking before releasing each loop.

Configuration Notes

• The CI541V1 has no physical DIP switches — all PROFIBUS parameters (station address, baud rate, watchdog timeout) are configured entirely in software via Control Builder F. There is no hardware addressing to set on the module itself.
• GSD file version must match the installed firmware. Using an outdated GSD file after a firmware update causes parameter length mismatches and prevents slave initialization.
• Maximum segment length at 12 Mbit/s is 100 m without repeaters. If your trunk exceeds this, verify repeater placement before blaming the module.

Reliability in Harsh Conditions

The CI541V1 was engineered for continuous operation in environments that would destroy consumer-grade electronics. ABB’s qualification testing for this module covers:

• Vibration: Sinusoidal vibration per IEC 60068-2-6 (10–150 Hz, 1 g) and random vibration per IEC 60068-2-64. Designed to survive the constant mechanical stress of compressor halls and pump stations where the floor never stops shaking.
• Thermal cycling: Validated across the full 0–60 °C operating range with rapid thermal transitions. The conformal coating on the PCB prevents condensation-induced short circuits during temperature swings common in outdoor substations and coastal facilities.
• Humidity and corrosion: Tested per IEC 60068-2-30 (damp heat, cyclic). The module’s sealed housing resists airborne contaminants — sulfur compounds, chlorine, and particulate matter — found in chemical plants and offshore platforms.
• EMC immunity: Compliant with IEC 61000-4 series (ESD, radiated immunity, conducted immunity, surge). The PROFIBUS interface includes galvanic isolation to protect the controller backplane from ground loops and cable-induced transients.
• Shock: Half-sine shock per IEC 60068-2-27 (15 g, 11 ms). Survives the mechanical shock of cabinet doors slamming and forklift traffic in heavy industrial environments.

Every unit we ship from Xiamen is inspected for physical integrity — connector pins, housing, label, and PCB condition — before it leaves our warehouse. We do not ship modules with cosmetic damage that could indicate prior mishandling.

Global Express Logistics

Our Xiamen warehouse is positioned for fast export to every major industrial region. Here’s exactly how your order moves:

• Order cutoff: Orders confirmed before 14:00 CST ship same business day. Orders after cutoff ship next morning.
• Carrier options: DHL Express (1–3 days to Europe/Americas), FedEx International Priority (1–2 days to North America), FedEx International Economy (3–5 days for cost-sensitive shipments), EMS for destinations with DHL/FedEx restrictions.
• Export documentation: Commercial invoice, packing list, and certificate of origin are prepared at time of shipment. HS Code 8537.10 applies to this module. We handle all export customs declarations from China.
• Import duties: We declare accurate commercial value — no undervaluation. Buyers are responsible for import duties and VAT in their country. We can provide a pro-forma invoice for your finance team before shipment.
• Tracking: AWB number sent via email within 2 hours of dispatch. Real-time tracking link provided. WhatsApp updates available on request for urgent shipments.
• Packaging: Anti-static bag, foam-lined box, outer carton. Fragile label applied. Suitable for air freight handling.
• Bulk orders: For plant turnarounds requiring multiple units, contact us for consolidated shipment pricing and dedicated logistics coordination.
