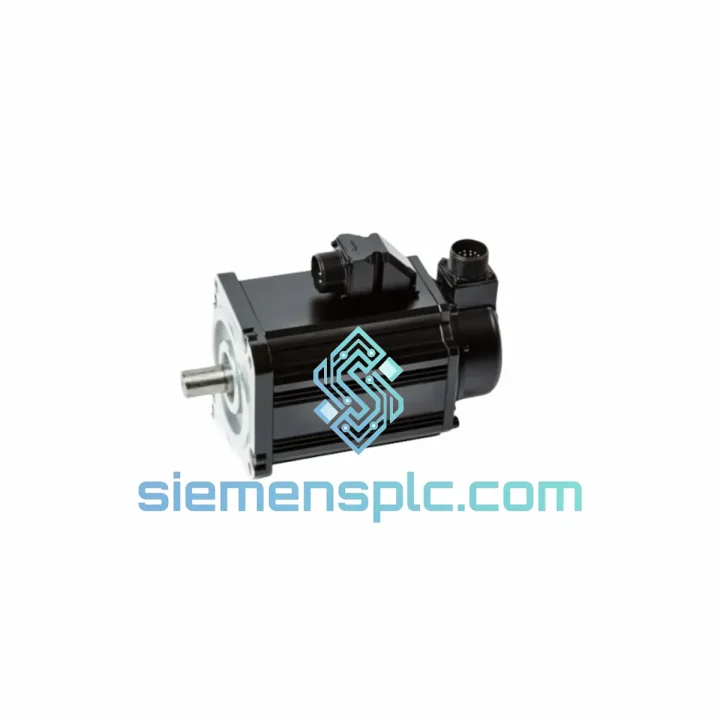

ABB 3HAWC116592 3HAWC116593-/00 Servo Motor

ABB 3HAWC116592 / 3HAWC116593-/00 — Stop the Clock on Your Robot Downtime

Every minute an IRB robot arm sits offline, your production line is bleeding money. A failed joint servo motor — whether it’s a sudden encoder fault, winding short, or bearing seizure — can halt an entire welding cell, assembly station, or palletizing line within seconds. The ABB 3HAWC116592 / 3HAWC116593-/00 is the exact OEM servo motor that drives the primary joint axes of ABB’s IRB robot series. We stock it. We ship it fast. From Xiamen to your dock, we cut your downtime window from weeks to days.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common Fault Signatures That Point to This Motor:

• Error 50024 / 50025 (Joint Velocity Error): The IRC5 controller logs this when encoder feedback deviates from the commanded velocity profile. Nine times out of ten, it’s a degraded encoder disk or a failing resolver bearing — not a drive board issue. Swap the motor first before pulling the DSQC axis computer.
• Error 50056 (Motor Current Limit Exceeded): Indicates winding resistance has dropped due to insulation breakdown. Measure phase-to-phase resistance at the motor connector — values outside ±10% of OEM spec confirm winding failure. This motor is the fix.
• Axis Stiffness / Cogging at Low Speed: Magnetic contamination on the rotor or bearing wear causes uneven torque output. If the robot arm feels “notchy” during slow jogging, the motor is the culprit, not the gearbox.
• Intermittent Position Drift After Warm-Up: Thermal expansion in a worn bearing causes encoder eccentricity. The fault appears only after 20–30 minutes of operation. Classic sign of end-of-life bearing in this unit.

Step-by-Step Replacement Checklist:

1. Backup the robot calibration data from the IRC5 FlexPendant before any mechanical work. Navigate to: Calibration → Fine Calibration → Save. This is non-negotiable.
2. Power down and lock out the robot controller. Verify zero voltage at the drive unit terminals with a multimeter before touching the motor connector.
3. Release the axis brake manually using the brake release button on the IRC5 cabinet. Support the robot arm mechanically — do not rely on the brake alone.
4. Disconnect the motor power cable and encoder cable at the joint. Note the cable routing and tie-wrap positions — reinstall exactly as found to avoid chafing.
5. Remove the motor mounting bolts (typically M6 or M8, torque spec per ABB service manual for your IRB model). Extract the motor straight out — do not lever against the encoder housing.
6. Install the new 3HAWC116592 / 3HAWC116593-/00. Torque mounting bolts to ABB specification. Reconnect power and encoder cables — verify connector locking tabs are fully seated.
7. Perform Fine Calibration on the replaced axis using the IRC5 FlexPendant and the calibration pin/tool for your IRB model. Do not skip this step — the robot will not achieve rated repeatability without it.
8. Run a slow-speed jog test on the replaced axis through full range of motion before resuming production. Monitor the IRC5 event log for any residual encoder errors during the first 10 cycles.

Configuration Notes: The 3HAWC116593-/00 suffix denotes the standard variant. No DIP switch settings or firmware flashing are required for this motor — it is a passive electromechanical device. The drive unit and IRC5 controller handle all commutation parameters. However, if you are replacing a motor on a robot that has had its calibration data corrupted, you will need to perform a full axis calibration sequence, not just fine calibration.

Reliability in Harsh Conditions

ABB designed the 3HAWC116593 series for the realities of industrial production floors — not laboratory conditions. The motor’s Class F insulation system handles sustained thermal cycling without derating, critical in foundry and die-casting environments where ambient temperatures regularly exceed 40 °C. The IP54 enclosure blocks coolant mist, metal swarf, and airborne particulates that are standard in machining and welding cells.

Vibration resistance is built into the rotor balancing spec — the motor maintains encoder accuracy under the continuous vibration loads generated by high-speed robot motion profiles. In automotive body-in-white lines, where robots run 20+ hours per day at high cycle rates, this motor’s bearing preload and winding construction are engineered for multi-year service intervals. The integrated encoder is potted and sealed against humidity ingress, making it suitable for wash-down adjacent environments in food and pharmaceutical automation where condensation is a daily reality.

Units supplied by siemensplc.com are sourced from verified OEM and authorized surplus channels. Each motor undergoes connector integrity verification, encoder continuity testing, and visual inspection for mechanical damage before dispatch. Anti-static foam insert, moisture-barrier bag, and rigid outer carton protect the unit through international freight handling.

Global Express Logistics

Our warehouse is located in Xiamen, China — one of the country’s primary industrial export hubs with direct access to DHL, FedEx, and UPS international express networks. When you place an order before 14:00 CST, same-day dispatch is standard for in-stock units.

• DHL Express Worldwide: Xiamen → Europe / North America in 3–5 business days. Door-to-door with full tracking and customs clearance documentation provided.
• FedEx International Priority: Xiamen → Southeast Asia / Middle East in 2–4 business days. Ideal for urgent plant shutdowns where every hour counts.
• UPS Expedited: Available for bulk orders or destinations with specific carrier requirements.
• Export Documentation: Commercial invoice, packing list, and HS code declaration (HS 8501.52) prepared for every shipment. Customers in the EU receive EORI-compliant documentation. Customers in the US receive FDA/CBP-compliant commercial invoices.
• Emergency Freight: For critical plant shutdowns, contact us directly via WhatsApp for same-day courier booking and real-time tracking updates.

We have shipped ABB servo motors to automotive plants in Germany, semiconductor fabs in Taiwan, food processing facilities in Australia, and oil & gas installations in the Middle East. The logistics process is proven. Your part arrives intact, on time, with paperwork ready for your receiving department.
