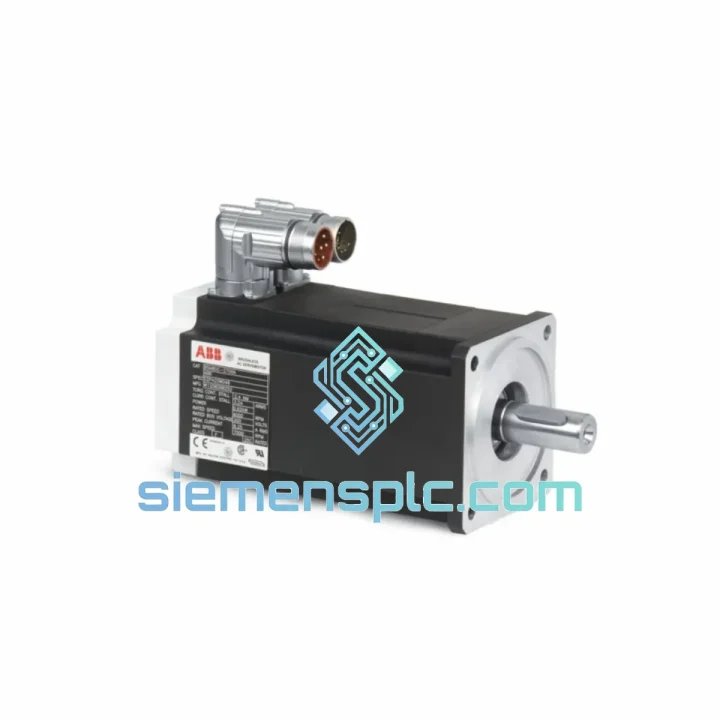

ABB 4600 KR16 50601-0126 Servo Motor – IRB 4600 Series

ABB 4600 KR16 50601-0126 — Axis Servo Drive Unit for IRB 4600 Industrial Robot Systems

The ABB 4600 KR16 50601-0126 is a factory-original servo motor assembly engineered specifically for the IRB 4600 six-axis industrial robot platform. Within the kinematic chain of a high-payload articulated arm, each axis servo unit bears direct responsibility for positional accuracy, torque repeatability, and closed-loop feedback integrity. The 50601-0126 designation identifies this unit as an axis-specific drive component matched to the KR16 payload configuration — a 16 kg rated arm reach variant widely deployed in automotive body-in-white assembly, arc welding cells, and precision material handling lines.

Unlike generic replacement motors, this unit is designed to operate within ABB’s IRC5 motion control architecture. The IRC5 controller communicates with each axis motor through a dedicated drive module (DSQC series), exchanging torque commands and encoder feedback at a cycle rate synchronized to the controller’s 4 ms interpolation period. Any deviation in encoder resolution or motor winding impedance from OEM specification directly degrades path accuracy — a critical parameter in seam-tracking welding or tight-tolerance assembly. The 50601-0126 maintains full electrical and mechanical compatibility with the original axis configuration, preserving the robot’s rated ±0.06 mm repeatability.

The motor integrates a multi-turn absolute encoder, eliminating the need for homing routines after power cycling. This architecture reduces restart time in production environments where unplanned stops carry measurable cost. The encoder data is transmitted via the robot’s serial measurement board (SMB), which retains axis position data through battery backup — a design that the 50601-0126 is fully compatible with, requiring no SMB reconfiguration upon replacement.

Mechanically, the unit employs a flange-mount interface with precision-ground mating surfaces, ensuring concentricity between the motor shaft and the robot’s harmonic drive reducer. Misalignment at this interface introduces backlash and accelerates wear in the strain wave gear — a failure mode that the OEM flange geometry is specifically designed to prevent. The housing is constructed from die-cast aluminum alloy with an IP54-rated sealing standard, providing adequate protection against metal particulate and coolant mist in typical machine-tending environments.

Thermal management is handled through the motor’s internal winding design and the robot’s ambient temperature monitoring. The IRC5 controller continuously monitors drive module temperatures and will issue a warning (event log code 50296) before thermal derating occurs. The 50601-0126’s winding insulation class is rated for sustained operation within the robot’s specified ambient range of 0°C to +45°C, with short-term excursions handled by the controller’s thermal model rather than mechanical cutouts.

For maintenance engineers, the replacement procedure follows ABB’s standard axis motor exchange protocol: axis calibration data stored in the SMB must be verified post-installation using RobotStudio or the FlexPendant calibration wizard. The 50601-0126 ships with the motor resolver/encoder pre-set to factory zero, but fine calibration against the robot’s physical reference marks is required to restore full path accuracy. This is a documented, repeatable procedure that does not require specialized tooling beyond a standard calibration pendulum or electronic level.

Stock is maintained at our Xiamen, China facility with export documentation prepared for DHL Express, FedEx International Priority, and air cargo consolidation. Lead time from order confirmation to dispatch is typically 1–2 business days for in-stock units.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IRB 4600’s motion control architecture distributes torque computation across the IRC5 drive modules, with each axis motor operating as a closed-loop actuator within a cascaded PID structure. The outer position loop runs in the IRC5 main computer at the 4 ms interpolation cycle; the inner current loop executes within the DSQC drive module at a significantly higher rate — typically sub-millisecond — to suppress torque ripple and maintain smooth velocity profiles during path interpolation.

The 50601-0126’s multi-turn absolute encoder eliminates the single-turn limitation of incremental encoders, which require a reference pulse on every power cycle. In a production environment where emergency stops and power interruptions are routine, the absolute position retention — backed by the SMB battery — means the robot can resume operation without a full homing sequence. This directly reduces mean time to recovery (MTTR) after unplanned stops.

EMC performance is addressed at the motor level through shielded cable terminations and the robot’s internal cable management system, which routes motor power and encoder cables through separate conduits to minimize capacitive coupling. The IRC5 drive modules include hardware filters on the DC bus to attenuate switching noise from the IGBT inverter stages, preventing conducted emissions from propagating back to the motor windings. This is particularly relevant in welding cells where high-frequency interference from welding power sources is a persistent concern.

The flange-mount interface geometry is held to tight tolerances at the OEM manufacturing stage. Concentricity between the motor output shaft and the harmonic drive input is critical: the strain wave generator in the harmonic reducer operates with a radial clearance measured in microns. An off-spec motor flange — even within a few hundredths of a millimeter — introduces a periodic torque disturbance at the gear mesh frequency, which manifests as a velocity ripple detectable in the robot’s path accuracy measurements. The 50601-0126’s OEM flange geometry eliminates this risk.

System Integration Benefits

• Zero-homing restart: Multi-turn absolute encoder retains axis position through power loss via SMB battery backup, eliminating homing cycles and reducing post-stop restart time to under 30 seconds in standard IRC5 configurations.
• Preserved path accuracy: OEM winding impedance and encoder resolution maintain the IRC5 motion controller’s calibrated torque-to-position mapping, sustaining the robot’s rated ±0.06 mm repeatability without recalibration of controller parameters.
• Direct drive module compatibility: Electrical interface matches DSQC series drive module pin-out and signal levels, requiring no adapter harnesses or firmware parameter changes beyond standard axis calibration.
• Thermal transparency: Motor thermal characteristics are within the IRC5 controller’s thermal model parameters, ensuring accurate drive module temperature warnings (event 50296) without false positives or masked overtemperature conditions.
• Diagnostic integrity: The SMB-compatible encoder interface preserves full access to ABB’s axis diagnostic data, including position error trending and encoder fault codes, through the FlexPendant event log and RobotStudio monitoring tools.
• Reduced mechanical wear propagation: OEM flange concentricity prevents the periodic torque disturbance that accelerates harmonic drive wear in non-OEM replacements, extending the service interval of the downstream reducer.
• Welding cell EMC compliance: Shielded terminations and OEM cable routing compatibility maintain the robot’s CE-marked EMC performance in environments with high-frequency welding interference sources.
• Simplified commissioning: Post-installation calibration follows ABB’s documented axis motor exchange procedure using standard FlexPendant tools — no specialized test equipment required, reducing maintenance labor time.

Quality Assurance & Global Logistics

Every 50601-0126 unit dispatched from our Xiamen facility is sourced through verified ABB supply channels and undergoes a pre-shipment inspection covering label authenticity, connector integrity, housing condition, and OEM markings. Units are stored in ESD-safe, climate-controlled conditions to prevent moisture ingress and electrostatic damage to encoder electronics during storage.

Export documentation is prepared as standard for each shipment: commercial invoice, packing list, and certificate of origin. HS code classification and export compliance review are completed prior to dispatch. For destinations requiring import permits or specific customs declarations for industrial robot components, our logistics team provides pre-shipment documentation support.

Shipping options from Xiamen, China:

• DHL Express / FedEx International Priority: 3–5 business days to most destinations in Europe, North America, Southeast Asia, and the Middle East.
• Air cargo consolidation: Available for multi-unit orders; 5–10 business days depending on destination and airline schedule.
• Sea freight: Available for bulk procurement orders; lead time 20–35 days depending on port of destination.

All units carry a 12-month warranty from the date of shipment against manufacturing defects. Warranty claims are processed with full traceability to the original shipment documentation. Technical support for installation and commissioning is available via email and WhatsApp throughout the warranty period.
