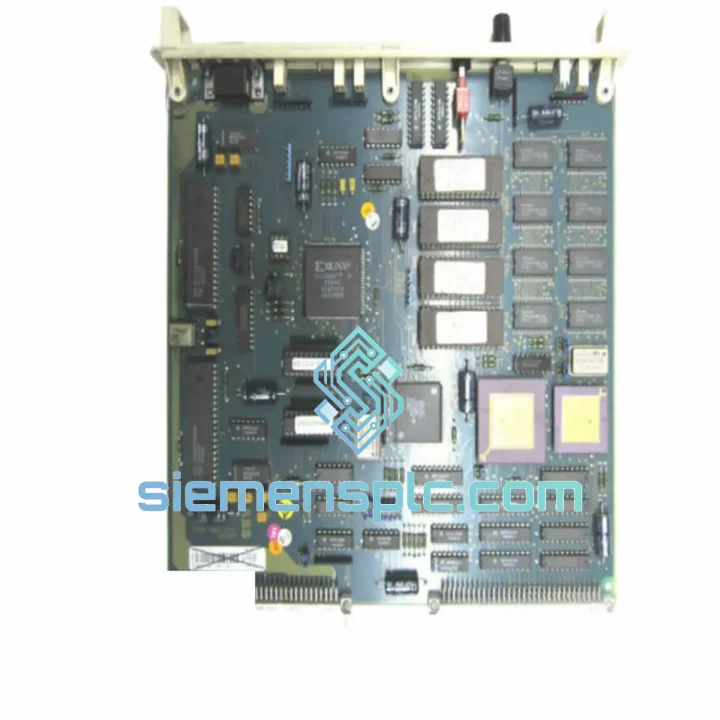

ABB 57310001-PK Encoder Interface Board – DCS 800 Series

ABB 57310001-PK (SDCS-PIN-51): Incremental Encoder Pulse Interface Board for DCS 800 DC Drive Closed-Loop Speed Control

The ABB 57310001-PK, designated SDCS-PIN-51, is a factory-engineered option board designed to extend the encoder feedback capability of the ABB DCS 800 fully digital DC drive platform. In any closed-loop speed regulation architecture, the quality and integrity of the speed feedback signal directly determines the achievable control bandwidth, steady-state speed accuracy, and dynamic torque response. The SDCS-PIN-51 occupies this critical position in the DCS 800 signal chain: it receives raw incremental encoder signals from the motor shaft, conditions them to the logic levels required by the SDCS-CON-4 main control board, and delivers pulse data to the drive’s firmware speed measurement engine with minimal latency and no signal degradation.

Without a dedicated encoder interface board, the DCS 800 operates in open-loop armature voltage feedback mode, where speed estimation is derived from back-EMF calculations. This approach introduces speed regulation errors of typically ±2–5% under load transients. The SDCS-PIN-51 eliminates this error source entirely by providing direct shaft speed measurement, enabling speed regulation accuracy of ±0.01% of rated speed under steady-state conditions — a requirement in paper machine winder drives, steel rolling mill stands, and precision extruder lines where web tension or dimensional tolerances are process-critical.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The SDCS-PIN-51 board architecture addresses three distinct engineering challenges inherent to encoder signal interfacing in industrial drive environments: signal level translation, noise immunity, and timing accuracy.

Dual-Voltage Input Stage: Industrial encoder installations span two dominant electrical standards — 5 V TTL (RS-422 differential) and 24 V HTL (single-ended or push-pull). The SDCS-PIN-51 accommodates both via a jumper-selectable input stage (JP1). In TTL mode, the board’s differential line receiver (functionally equivalent to an AM26LS32 or SN75175 topology) rejects common-mode noise up to ±7 V, which is essential in environments where encoder cables run parallel to motor power cables carrying dV/dt transients of several kV/μs. In HTL mode, the input stage incorporates a voltage divider and Schmitt-trigger buffer to translate 24 V logic to the 3.3 V or 5 V internal logic rail of the SDCS-CON-4 ASIC, with hysteresis thresholds that prevent false triggering from cable-induced noise spikes.

EMC Design and Optical Isolation Boundary: The board implements galvanic isolation between the encoder input circuitry and the SDCS-CON-4 internal logic bus. This isolation boundary — implemented via high-speed digital optocouplers rated for propagation delays below 50 ns — prevents ground potential differences between the encoder housing (mechanically coupled to the motor frame) and the drive control electronics from introducing common-mode currents into the signal path. In steel mill and paper mill environments, motor frame ground potentials can deviate by several volts from the drive cabinet ground reference due to stray currents in the building ground network. Without this isolation, encoder signal corruption and SDCS-CON-4 ASIC latch-up events are documented failure modes.

Z-Channel (Zero Pulse) Processing: The Z-channel input receives the encoder’s once-per-revolution index pulse. The SDCS-PIN-51 routes this signal to the DCS 800 firmware’s position reference register, enabling homing sequences and absolute position initialization within the drive’s parameter set (Group 50.04: Zero Pulse). This is architecturally significant for winder applications where reel diameter calculation requires accurate shaft revolution counting from a known reference position.

Backplane Bus Timing: The SDCS-PIN-51 delivers conditioned pulse data to the SDCS-CON-4 via the option slot’s internal parallel bus. The SDCS-CON-4’s dedicated encoder counter ASIC samples this bus synchronously with the drive’s 3.3 ms speed controller task cycle. At 200 kHz input frequency, the counter accumulates up to 660 pulses per task cycle, providing a speed measurement resolution of approximately 0.15% of full-scale at 3000 RPM with a 1000 PPR encoder — sufficient for the DCS 800’s PI speed controller to maintain ±0.01% steady-state speed accuracy.

System Integration Benefits

• Closed-Loop Speed Accuracy ±0.01%: Direct shaft encoder feedback eliminates back-EMF estimation errors, achieving steady-state speed regulation an order of magnitude tighter than open-loop operation — critical for multi-stand rolling mill synchronization where inter-stand tension is speed-differential dependent.
• Zero External Signal Conditioning Hardware: The board’s integrated dual-voltage input stage and isolation circuitry eliminate the need for external encoder signal converters, DIN-rail signal conditioners, or custom interface relays, reducing panel component count and potential failure points.
• Native Firmware Parameter Integration: The SDCS-PIN-51 is fully recognized by DCS 800 parameter Group 50 (Speed Measurement) without custom firmware modifications. Parameters 50.01 through 50.07 configure encoder PPR, speed filter time constant, and zero pulse behavior directly from the drive’s keypad or fieldbus.
• Deterministic Speed Feedback Latency: Encoder data is sampled synchronously with the 3.3 ms speed controller task, providing deterministic feedback latency with no jitter introduced by asynchronous serial communication — a requirement for high-bandwidth torque control loops in test bench dynamometer applications.
• Galvanic Isolation Protects Control Electronics: The isolation boundary between encoder input and SDCS-CON-4 bus prevents ground loop currents from corrupting speed measurement data or damaging the main control board’s ASIC — extending MTBF in electrically noisy environments such as arc furnace auxiliary drives.
• Supports Homing and Position Reference Functions: Z-channel processing enables shaft position initialization sequences within the DCS 800 firmware, supporting applications such as winder reel diameter tracking and crane hoist absolute position reference without external PLC intervention.
• Compact Slot-Mount Form Factor: The board installs directly into the SDCS-CON-4 option slot without requiring additional enclosure space, DIN rail, or cable duct allocation — preserving panel layout integrity in retrofit and upgrade projects where enclosure space is constrained.
• Broad Encoder Compatibility: Support for both TTL (RS-422) and HTL (24 V push-pull) encoder types via JP1 jumper selection allows the SDCS-PIN-51 to interface with the majority of industrial incremental encoders from Heidenhain, Sick, Baumer, and Leine & Linde without hardware modification.
• Diagnostic Transparency via Drive Parameters: The DCS 800 firmware exposes encoder pulse count, calculated speed, and zero pulse detection status as readable parameters via the drive’s fieldbus interface (PROFIBUS, Modbus, or DDCS), enabling remote diagnostic monitoring from the plant SCADA system without additional instrumentation.

Quality Assurance & Global Logistics

Every ABB 57310001-PK unit supplied by siemensplc.com is sourced as genuine ABB-manufactured hardware. Each board undergoes a structured pre-dispatch inspection protocol: visual examination of PCB surface and solder joints for mechanical damage, connector pin integrity verification on the D-Sub X31 and internal slot connector, and confirmation of ABB part label and date code traceability where present on the board. Units are packaged in anti-static shielding bags with humidity indicator cards, placed in foam-lined cartons rated for international air freight handling per ISTA 2A transit test standards.

Dispatch is from our warehouse in Xiamen, China. Xiamen’s port and air freight infrastructure — served by Xiamen Gaoqi International Airport and Xiamen Port — provides direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express services. Transit times to major industrial hubs are typically 3–5 business days to Europe, 4–6 business days to North America, and 2–4 business days to Southeast Asia. All shipments include door-to-door tracking, commercial invoice, and packing list documentation suitable for customs clearance. Export classification and HS code documentation are provided upon request for regulated procurement processes.

A 12-month warranty covers functional defects from the dispatch date. Warranty claims are processed via email with photographic evidence of the defect; replacement or credit is issued within 5 business days of claim verification. Technical commissioning support — including DCS 800 parameter configuration guidance for encoder feedback setup — is available at no additional charge via email or WhatsApp for the duration of the warranty period.
