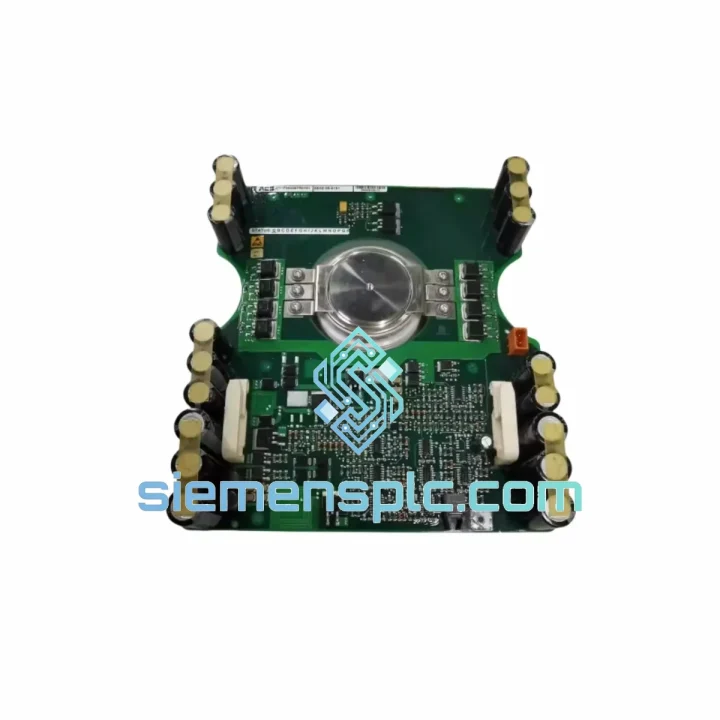

ABB 5SHX 0445D0001 3BHL000382P0101 IGBT Gate Drive Board

ABB 5SHX 0445D0001 / 3BHL000382P0101 — Stop the Clock on Your Downtime

Every minute your drive is offline, the losses compound. A tripped ACS800 or ACS6000 in a steel mill, a petrochemical compressor train, or a marine propulsion system doesn’t wait for a slow supply chain. The ABB 5SHX 0445D0001 (OEM cross-reference: 3BHL000382P0101) IGBT gate drive board is the single component standing between you and full production recovery — and we have it on the shelf in Xiamen, ready to move today.

This is not a catalog listing. This is a field-ready spare, pre-inspected, anti-static packed, and staged for same-day DHL/FedEx dispatch. If you’re reading this at 2 AM during a breakdown, skip to the contact block below and call us now.

URGENT REQUIREMENT?
📧 Email: [email protected]
📱 WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 5SHX 0445D0001 fails in predictable patterns. Knowing them cuts your diagnostic time from hours to minutes.

Most Common Failure Modes:

• Fault Code F-0022 / F-0023 (IGBT Overcurrent / Short Circuit): Often triggered by a failed gate drive board rather than the IGBT module itself. Before condemning the expensive IGBT stack, swap the drive board first. It’s a $300 test that can save a $15,000 module.
• Intermittent F-0001 (DC Overvoltage) with no actual bus spike: Degraded gate drive timing causes incomplete IGBT turn-off, leading to false overvoltage trips. Replace the drive board and re-baseline the DC bus voltage reference.
• Fiber-optic signal loss (PPCC / RDCO link fault): Check the plastic fiber connectors on the drive board first — they crack under thermal cycling. If the fiber itself tests clean, the board’s receiver circuit has failed.
• Asymmetric phase output / motor vibration at low speed: One gate drive channel degraded. Measure gate-emitter voltage on each IGBT leg under no-load conditions. A weak or missing pulse on one channel points directly to this board.

Step-by-Step Replacement Procedure:

1. De-energize the drive fully. Verify DC bus voltage is below 50 V with a calibrated meter — do not rely on the drive’s own display after a fault.
2. Discharge the DC bus capacitors per ABB service manual (minimum 5-minute wait after isolation, or use the manual discharge resistor if fitted).
3. Label and photograph all fiber-optic connections before removal. The TX/RX orientation is not always obvious on reassembly.
4. Remove the drive board by releasing the PCB standoffs. Handle only by edges — the gate drive output traces carry residual charge.
5. Install the new 5SHX 0445D0001. Verify the PCB revision matches your drive’s firmware version (check the drive’s parameter r7.01 or equivalent).
6. Reconnect fiber-optic cables in the exact original routing. Tight bends below 25 mm radius will cause signal attenuation.
7. Power up in local control mode. Run the IGBT self-test routine (ACS800: parameter 99.13 = IGBT TEST) before connecting the motor.
8. Monitor gate drive status parameters for the first 30 minutes of loaded operation. Log any transient fault codes for baseline comparison.

Configuration Notes:

• No DIP switch settings on this board — configuration is handled via the drive’s DDCS fiber-optic link.
• Firmware matching: If upgrading from an older board revision, check ABB Service Bulletin SB-ACS800-0044 for firmware compatibility matrix.
• Do not mix board revisions within a multi-drive system sharing a common DC bus — timing skew between revisions can cause cross-tripping.

Reliability in Harsh Conditions

The 5SHX 0445D0001 was not designed for a climate-controlled server room. It was engineered for the environments where drives actually live — and fail.

ABB’s qualification testing for this board series includes continuous operation at ambient temperatures up to 55°C inside the drive cabinet, vibration endurance per IEC 60068-2-6 (sinusoidal, 5–150 Hz, 1 g), and humidity cycling per IEC 60068-2-78 (40°C / 93% RH, non-condensing). The conformal coating on the PCB provides additional protection against conductive dust and moisture ingress — a critical factor in cement plants, paper mills, and coastal marine installations where humidity and particulate contamination are constant threats.

The fiber-optic gate signal interface eliminates ground loop interference that plagues conventional copper-wired gate drives in high-EMI environments. In steel mill applications where the drive cabinet sits adjacent to arc furnace transformers, this isolation is not a feature — it’s a survival requirement.

Thermal management on this board is passive by design. The component layout prioritizes heat dissipation through the PCB substrate and the drive cabinet’s forced-air cooling path. There are no active cooling components to fail. In our experience, boards that fail prematurely in harsh environments almost always show evidence of contamination or mechanical damage — not component wear-out. Proper installation and periodic cabinet cleaning extend service life well beyond the rated 10-year design life.

Global Express Logistics

Our Xiamen warehouse operates on a same-day dispatch model for in-stock items ordered before 15:00 CST. Here’s what the logistics chain looks like from the moment you confirm your order:

• Order Confirmation → Picking & Inspection: Within 2 hours of payment confirmation, the unit is pulled from shelf stock, visually inspected, and photographed for your records.
• Export Documentation: Commercial invoice, packing list, and certificate of conformance are prepared simultaneously. For customers requiring CITES, CE, or RoHS documentation, allow an additional 4 hours.
• Packaging: Anti-static bag, foam-lined rigid carton, humidity indicator card, and shock-watch label. The board arrives in the same condition it left.
• Carrier Handoff: DHL Express or FedEx International Priority, depending on destination and your preference. Both carriers offer next-business-day delivery to most of Europe, North America, and Southeast Asia from Xiamen.
• Tracking: AWB number sent via email and WhatsApp within 1 hour of carrier pickup. Real-time tracking link included.
• Customs Clearance: We declare accurate HS codes (8537.10 / 8504.40 as applicable) and provide all documentation required for smooth customs clearance. For customers in the EU, we can provide EORI-compatible documentation. For customers in the US, we support HTS-compliant entry documentation.

Typical transit times: Europe 1–3 business days, North America 2–4 business days, Southeast Asia 1–2 business days, Middle East / Africa 3–5 business days. These are DHL/FedEx published transit times from Xiamen — not estimates.

For genuine emergencies, contact us on WhatsApp before placing the order. We can arrange airport-to-airport freight or courier-on-board options for critical situations where standard express is not fast enough.
