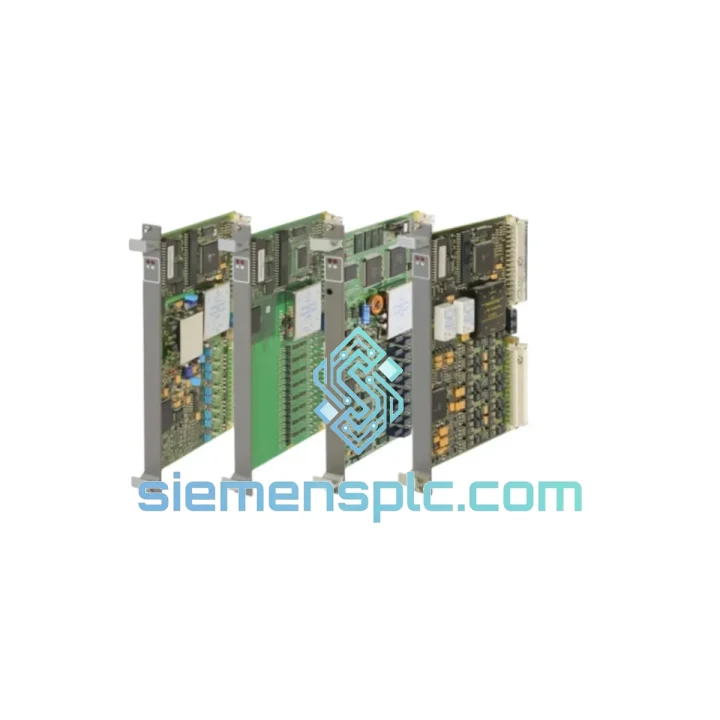

ABB 88TU01E GJR2344300R1000 PROFIBUS DP Module – AC500 Series

ABB 88TU01E GJR2344300R1000 — PROFIBUS DP Master/Slave Interface for AC500 Modular PLC Architecture

The ABB 88TU01E (factory part number GJR2344300R1000) is a dedicated PROFIBUS DP communication module designed for integration within the AC500 modular PLC platform. Its function is singular and non-negotiable in distributed control architectures: it serves as the physical and logical gateway between the AC500 CPU backplane and the PROFIBUS DP field network, handling cyclic data exchange, acyclic parameter access, and network diagnostics without burdening the CPU’s primary processing cycle.

In a typical process plant or discrete manufacturing cell, the AC500 CPU handles ladder logic, function block execution, and HMI data serving simultaneously. Offloading PROFIBUS DP communication to a dedicated module like the 88TU01E means the CPU scan cycle remains deterministic regardless of network load — a design principle that directly reduces jitter in time-critical control loops. The GJR2344300R1000 part number is the ABB factory identifier confirming original specification, full firmware compatibility, and supply chain traceability for MRO and OEM procurement teams.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 88TU01E is built around a dedicated PROFIBUS DP ASIC — a purpose-designed silicon layer that handles the entire DP state machine independently of the AC500 CPU. This architectural separation is the module’s most consequential design decision. The ASIC manages token passing, slave polling cycles, and error retry sequences at the hardware level, meaning the CPU is only interrupted when a complete data frame is ready for consumption or when a diagnostic event requires attention. Under maximum network load (125 slaves, 12 Mbit/s), the CPU’s contribution to PROFIBUS overhead is reduced to a memory-mapped register read — a deterministic, sub-microsecond operation.

EMC Architecture: The module’s PROFIBUS DB9 connector interface incorporates galvanic isolation between the field bus side and the backplane logic side. Optical isolators rated for ≥2.5 kV isolation voltage decouple ground loops that are endemic in large industrial installations where cable runs exceed 50 m and multiple earthing points exist. The bus termination resistor network (390 Ω / 220 Ω / 390 Ω per IEC 61158) is integrated on-board, eliminating the need for external termination plugs at the module end of the segment.

Redundancy Arbitration: In AC500 redundant CPU configurations (PM595 paired systems), the 88TU01E participates in the hot-standby arbitration protocol. The active CPU holds the DP master token; upon failover, the standby CPU assumes master status within one DP bus cycle — typically under 10 ms at 1.5 Mbit/s — without slave devices detecting a master loss event. This is achieved through synchronized shadow registers maintained across both CPUs via the AC500 inter-CPU synchronization bus.

Diagnostic Transparency: The module exposes a 244-byte diagnostic buffer per slave, accessible via DP-V1 acyclic read services. Each buffer entry contains station status bytes, manufacturer-specific diagnostic data, and extended diagnostic blocks (ExtDiag) that map directly to ABB Automation Builder’s online diagnostic view. Engineers can identify a failing slave, its last valid data timestamp, and the specific DP error code without interrupting the running control program.

System Integration Benefits

• Zero-Impact CPU Loading: The dedicated PROFIBUS ASIC handles all DP protocol processing autonomously. CPU scan time remains constant regardless of network slave count or baud rate, preserving deterministic PLC cycle execution for time-critical control loops.
• DP-V0 / V1 / V2 Multi-Profile Support: Supports all three PROFIBUS DP conformance classes. DP-V0 covers standard cyclic I/O; DP-V1 enables acyclic parameter read/write for drive parameterization (e.g., ABB ACS880 via FENA-21 adapter); DP-V2 supports isochronous mode for synchronized motion axes.
• GSD File Compatibility: The module ships with a validated GSD (General Station Description) file, enabling third-party DP masters to integrate the AC500 as a DP slave without custom configuration. This is critical in multi-vendor SCADA architectures where the AC500 must respond to a Siemens S7 or Schneider Quantum master.
• Plug-and-Play Engineering Workflow: Full integration with ABB Automation Builder (Control Builder Plus PS501). The module appears as a hardware object in the project tree; I/O mapping is drag-and-drop. No manual address offset calculation is required — the engineering tool generates the process image automatically.
• Live Network Diagnostics: Online mode in Automation Builder displays real-time DP bus status, per-slave communication health, cycle time measurements, and error counters. Maintenance engineers can identify intermittent cable faults or failing slave transceivers without a separate PROFIBUS analyzer tool.
• Hot-Standby Failover Participation: In PM595 redundant configurations, the module synchronizes master state with the standby CPU, enabling sub-10 ms failover without DP slave data loss — a requirement in continuous process industries where a master loss event triggers emergency shutdowns.
• Segment Expansion via Repeaters: A single 88TU01E master port can drive multiple PROFIBUS segments through RS-485 repeaters, extending physical reach beyond the standard 1,200 m (at 93.75 kbit/s) limit. The module’s token management logic handles multi-segment timing transparently.
• Mixed I/O Topology Support: The module coexists on the same AC500 backplane with Ethernet/IP, Modbus TCP, and HART communication modules. Each communication module operates on its own backplane slot with independent process image areas, allowing engineers to partition field device networks by protocol without CPU arbitration conflicts.

Quality Assurance & Global Logistics

Every ABB 88TU01E GJR2344300R1000 unit dispatched from our Xiamen facility undergoes a structured pre-shipment verification protocol. Label integrity is cross-checked against ABB’s factory part number database — the GJR2344300R1000 identifier encodes the product family, hardware revision, and regional certification variant, and any discrepancy in label format is grounds for rejection. Connector pins on the DB9 PROFIBUS port and the backplane edge connector are inspected under magnification for oxidation, mechanical deformation, or solder bridge defects.

Units are packed in anti-static ESD shielding bags (surface resistance <10⁹ Ω per IEC 61340-5-1), placed in foam-lined cartons rated for 1.2 m drop impact, and sealed with tamper-evident tape. Each shipment includes a packing list, commercial invoice with HS code 8537.10, and certificate of origin. For projects requiring it, a certificate of conformity referencing the specific serial number batch is available on request.

Logistics from Xiamen, China covers DHL Express (2–4 business days to Europe/North America), FedEx International Priority, UPS Worldwide Expedited, and sea freight consolidation for bulk orders. Export documentation complies with Chinese customs regulations and destination country import requirements. Customers in the EU receive shipments with EORI-compliant documentation; customers in the US receive FDA/FCC-exempt industrial goods declarations where applicable.

A 12-month warranty from shipment date covers manufacturing defects and functional failures under normal operating conditions as defined by ABB’s AC500 system documentation. Warranty claims are processed with a replacement-first policy — a replacement unit ships before the defective unit is returned, minimizing plant downtime for critical installations.
