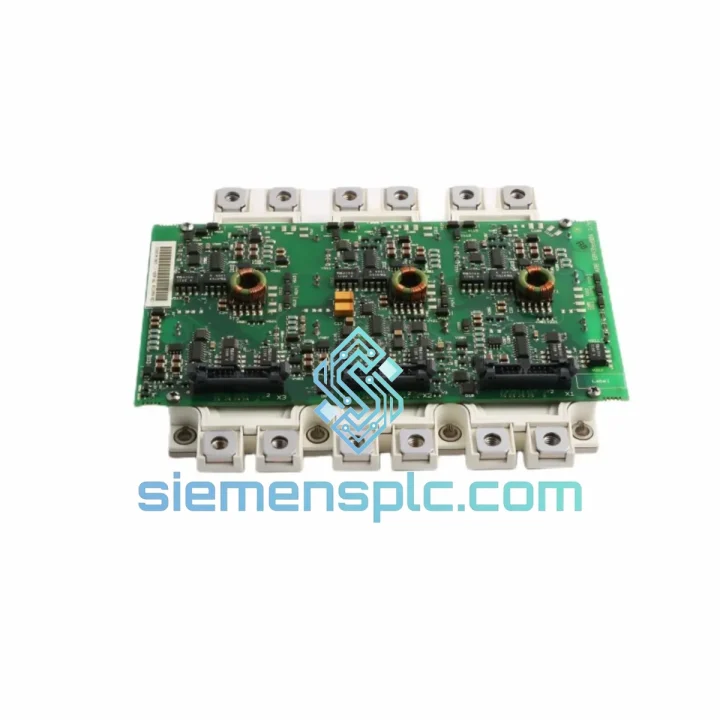

ABB AGDR-71C 68436770 IGBT Gate Driver Board

ABB AGDR-71C 68436770 — Stop the Clock on Your ACS800 Downtime

Every minute your ACS800 drive sits dead, your production line is bleeding money. The AGDR-71C gate driver board is the single most common cause of unrecoverable drive faults in the ACS800 platform — and it’s also the fastest fix when you have the right part on hand. We stock it. We ship it today. From Xiamen to your plant floor, DHL or FedEx, tracked door-to-door.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The AGDR-71C fails in predictable patterns. Here’s what ten years of field calls have taught me:

Fault Code F-0001 / F-0002 (IGBT Overcurrent / Short Circuit): Nine times out of ten, the IGBT itself is intact — the gate driver has lost its desaturation threshold calibration or the optocoupler on the feedback path has degraded. Before you condemn the IGBT module, swap the AGDR-71C first. It’s a 20-minute job versus a 4-hour IGBT replacement.

Fault Code F-0022 (DC Bus Overvoltage during decel): If the drive trips on decel but the braking chopper tests fine, check the gate driver’s turn-off timing. A degraded AGDR-71C can slow the IGBT turn-off edge, causing voltage spikes that the DC bus capacitors can’t absorb fast enough.

Intermittent F-0003 (Earth Fault) with no wiring fault found: Galvanic isolation breakdown inside the AGDR-71C creates phantom earth fault signals. The drive’s insulation resistance test will pass — the fault is inside the driver board, not the motor cable.

Replacement Procedure — Step by Step:

1. Isolate the drive from mains supply. Lock out / tag out. Wait minimum 5 minutes for DC bus capacitors to discharge below 50 VDC — verify with a calibrated meter before touching anything inside the power stack.
2. Photograph the existing AGDR-71C connector orientation and fiber-optic routing before disconnecting. You will thank yourself during reassembly.
3. Disconnect the gate signal connectors (typically X1, X2) and the fiber-optic fault feedback cables. Label each one — polarity matters on the fiber links.
4. Remove the four M4 mounting screws. Lift the board straight out — do not flex it against the IGBT module gate pins.
5. Inspect the IGBT gate pins for mechanical damage or carbon tracking before installing the new AGDR-71C.
6. Seat the replacement board, torque M4 screws to 1.5 Nm. Reconnect connectors in reverse order. Fiber-optic TX/RX orientation must match — a reversed fiber link will cause immediate fault on power-up.
7. No DIP switch or address configuration is required on the AGDR-71C — it is not a self-addressing module. Firmware on the AINT/RDCU control board does not need updating for a like-for-like driver board swap.
8. Power up with motor disconnected. Run the drive’s internal self-test routine (parameter 99.13 on ACS800). Confirm no gate driver faults before reconnecting the motor.

Critical Configuration Note: If your ACS800 uses parallel IGBT modules (high-current variants above 400A), each phase leg has two AGDR-71C boards. Replace both boards in the affected phase simultaneously — mismatched gate drive timing between old and new boards causes unequal current sharing and will destroy the IGBTs within hours.

Reliability in Harsh Conditions

The ACS800 platform was built for the worst environments on earth — and the AGDR-71C was designed to match. The board’s PCB substrate uses high-Tg FR4 laminate with conformal coating on production variants, providing resistance to condensation and airborne contaminants common in cement, mining, and chemical plant installations.

Vibration resistance meets IEC 60068-2-6 test profile Fc — the board survives the continuous 2–9 Hz, 3.5 mm displacement and 9–200 Hz, 10 m/s² acceleration cycles that characterize compressor skid and marine propulsion installations. The gate drive transformer and optocouplers are potted or mechanically secured to prevent resonance-induced solder joint fatigue.

Thermal cycling performance is validated across the -10°C to +55°C operating range with 95% RH non-condensing humidity tolerance. In practice, we’ve seen AGDR-71C boards pulled from drives in Malaysian palm oil mills and Siberian mining operations — both extremes — that tested fully functional after cleaning. The failure mode is almost always electrical overstress from upstream faults, not environmental degradation.

All units we ship are inspected under 10x magnification for solder joint integrity, PCB delamination, and component date codes. We do not ship boards with evidence of prior thermal runaway, arc damage, or reworked solder joints.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct DHL and FedEx gateway access. Here’s exactly what happens after you place your order:

• Same-day dispatch for orders confirmed before 15:00 CST. Parts are pulled, inspected, ESD-bagged, foam-packed, and handed to the courier the same afternoon.
• DHL Express Worldwide: Southeast Asia 1–2 days, Europe 2–3 days, Americas 3–4 days. Real-time tracking from our warehouse door to yours.
• FedEx International Priority: Available as an alternative for destinations where FedEx has stronger last-mile coverage — Middle East, South Asia, parts of Africa.
• Export documentation: Commercial invoice, packing list, and certificate of origin are standard with every shipment. HS Code 8537.10 declared. For customers requiring Form E (ASEAN FTA) or other preferential origin certificates, contact us before shipment.
• ESD-safe packaging: Anti-static bag + foam-lined double-wall carton. The board arrives in the same condition it left our bench.
• Emergency freight: For genuine production-down situations, we can arrange next-flight-out courier booking. Contact us directly on WhatsApp for fastest response.

We’ve shipped to steel mills in Turkey, paper plants in Finland, petrochemical facilities in Saudi Arabia, and mining operations in Chile. The logistics process is the same every time — fast, documented, and traceable.
