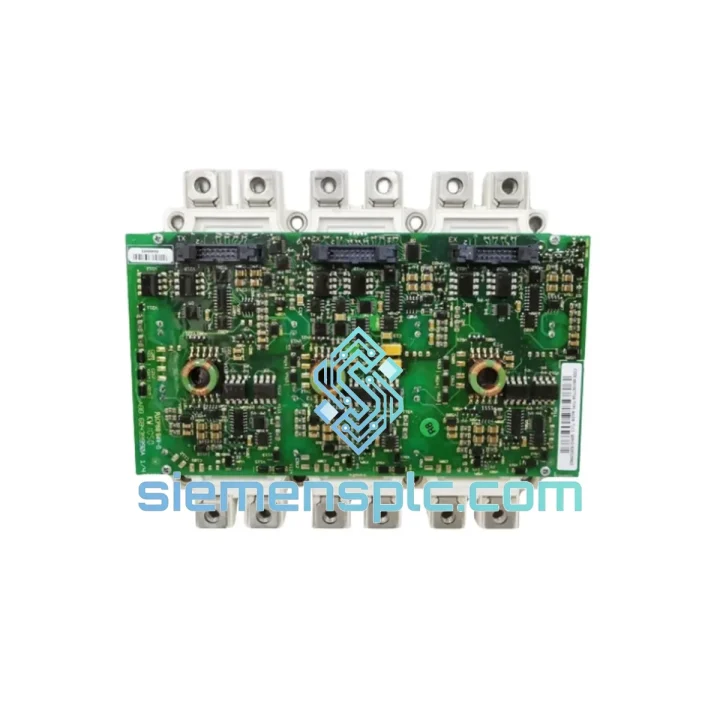

ABB AGDR-71CS FS450R17KE3 IGBT Module

ABB AGDR-71CS FS450R17KE3 IGBT Gate Driver Kit — Stop the Clock on Your ACS800 Downtime

Every minute an ACS800 drive sits dead on the floor, your production line is bleeding money. A failed IGBT stage or a blown gate driver board is one of the most common — and most brutal — failure modes in medium-voltage ABB drives. We stock the AGDR-71CS gate driver board and the Infineon FS450R17KE3 IGBT power module as a matched kit, ready to pull from the shelf and ship the same day you call. No lead-time negotiations. No factory back-order queues. Just the part you need, moving toward your site within hours of your order confirmation.

This is not a refurbished unit. This is not a grey-market pull. Every kit in our inventory is sourced through documented supply channels, physically inspected on arrival, and stored in climate-controlled ESD-safe racking. When your maintenance team cracks open the box, they get a part that behaves exactly as the OEM intended — because it is the OEM part.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The AGDR-71CS / FS450R17KE3 combination fails in predictable patterns. Knowing them cuts your diagnostic time from hours to minutes.

Fault Code F-0022 / F-0023 (IGBT Overcurrent / Short Circuit): Nine times out of ten this is a hard failure of the FS450R17KE3 module itself — collector-emitter junction shorted, usually triggered by a DC bus transient that exceeded the module’s 1700 V rating. Before you condemn the IGBT, measure DC bus voltage under load. If it spiked above 1650 V repeatedly, your braking chopper or line reactor may also need attention. Replace the IGBT module first; if the fault returns within one power cycle, the AGDR-71CS gate driver has likely sustained secondary damage from the shoot-through event and must also be swapped.

Fault Code F-0001 (DC Undervoltage) after IGBT replacement: This is almost always a gate driver power supply issue. The AGDR-71CS draws its isolated gate bias from an internal DC/DC converter. If the replacement driver board does not power up correctly, verify the 24 VDC auxiliary supply rail at the board connector — tolerance must be within ±5%. A sagging auxiliary PSU will cause the gate driver to latch off and report a false undervoltage on the DC bus.

Replacement Procedure — Key Steps:

• De-energize the drive completely. Verify DC bus capacitors are discharged below 50 V using a calibrated meter — do not rely on the drive’s own display.
• Document the existing AGDR-71CS DIP switch positions before removal. The address switches configure the board’s position within the AINT interface chain. Incorrect settings after replacement will cause a communication fault (F-0080 series) on first power-up.
• When seating the new FS450R17KE3, apply fresh thermal compound to the baseplate — do not reuse the old compound. Torque the module mounting screws to the specified 6 Nm; under-torquing causes thermal resistance creep and premature re-failure.
• After installation, perform a gate signal check with an oscilloscope before closing the drive cabinet. Confirm clean switching waveforms with no ringing above 20% of V_CE.
• Run the drive’s auto-tuning routine (ID Run) after replacement to re-establish motor model parameters. Skipping this step on vector-controlled applications will cause torque instability.

Firmware Note: If the replacement AGDR-71CS carries a different firmware revision than the original, download the current ACS800 firmware package from ABB’s service portal and flash the control board before commissioning. Mismatched firmware between the RDCU control unit and the gate driver interface can cause intermittent F-0080 communication faults that are extremely difficult to trace without version documentation.

Reliability in Harsh Conditions

The FS450R17KE3 is an Infineon PrimePACK module built for exactly the kind of environment where drives fail most often — steel mills, cement plants, offshore platforms, and chemical processing facilities. The module’s pressure-contact technology eliminates bond-wire fatigue, which is the primary failure mechanism in conventional wire-bonded IGBTs under thermal cycling. The ceramic substrate maintains dielectric integrity at junction temperatures up to 150°C, and the module’s internal NTC thermistor gives the AGDR-71CS real-time thermal feedback to implement overtemperature protection before damage occurs.

The AGDR-71CS gate driver board is conformal-coated from the factory, providing protection against condensation, industrial dust, and mild chemical vapors. The board’s fiber-optic interface to the AINT control board eliminates ground loop noise — a critical feature in environments with heavy motor cabling and variable-frequency interference. In vibration-intensive installations such as compressor drives or marine propulsion systems, the board’s through-hole component construction outperforms surface-mount alternatives in long-term mechanical reliability.

Our storage conditions match the demands of the product: all IGBT kits are held in temperature-controlled (18–22°C), humidity-monitored (<50% RH) ESD-safe racking. Shelf life from our warehouse is effectively unlimited for properly stored power semiconductors — you are not buying old stock that has been sitting in a damp container.

Global Express Logistics

Our dispatch hub is located in Xiamen, Fujian Province — one of China’s primary export ports with direct DHL and FedEx gateway access. Here is exactly what happens after you confirm your order:

• Order Confirmation → Same Day: Your order is picked, inspected, and packed in double-layer ESD anti-static packaging with foam cushioning. A commercial invoice, packing list, and HS code 8541.10 declaration are prepared simultaneously.
• Day 1: Shipment handed to DHL Express or FedEx International Priority. Tracking number issued to your email within 2 hours of pickup scan.
• Day 2–3 (Europe / Middle East): Typical transit time to Frankfurt, Dubai, Rotterdam, and Istanbul hubs. Customs clearance documentation is pre-prepared to minimize broker delays.
• Day 2–4 (North America): Direct routing through DHL’s Cincinnati or FedEx’s Memphis gateway. We pre-file EEI/AES export declarations for US-bound shipments to eliminate customs holds.
• Day 3–5 (Southeast Asia / Australia): Singapore, Kuala Lumpur, Sydney, and Melbourne typically clear within 3 business days of dispatch.

For orders requiring air freight consolidation or sea freight for bulk quantities (10+ units), we coordinate directly with our freight forwarder to provide a door-to-door quote within 4 hours of your inquiry. All shipments are fully insured at declared value. Import duty and VAT documentation — including EUR.1 movement certificates for applicable trade agreements — are available on request.

Contact Information

Ready to place an order or need a formal quotation for your procurement team?

📧 Email: [email protected]
💬 WhatsApp: +86 18359268345
