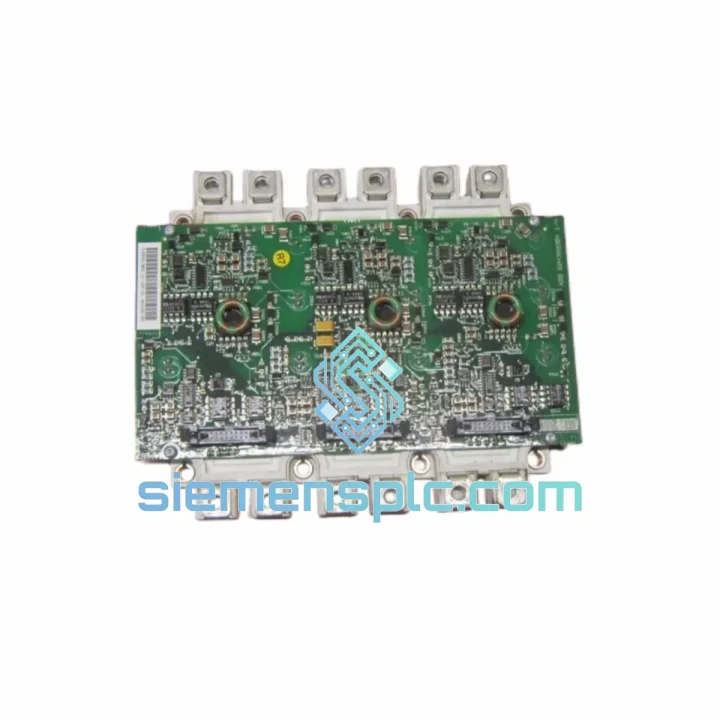

ABB AGDR-72C 68436788A Gate Driver Board – ACS800 Series

ABB AGDR-72C 68436788A — IGBT Gate Driver Board for High-Power Drive Systems

The ABB AGDR-72C (internal reference 68436788A) is a dedicated IGBT gate driver board engineered for deployment within ABB’s ACS800 and ACS880 series variable-frequency drive platforms. Its primary function is to translate low-level PWM control signals from the drive’s inverter control board into high-current, galvanically isolated gate pulses capable of switching large IGBT modules reliably across the full operating envelope of the drive. In multi-phase topologies — including 3-phase 2-level and 3-level NPC inverters — one AGDR-72C board is assigned per IGBT switch position, meaning a standard 3-phase 2-level inverter requires six boards operating in synchronized pairs per phase leg.

The board occupies a critical position in the power conversion chain: any degradation in gate drive timing, isolation integrity, or protection response directly translates into IGBT switching losses, thermal runaway risk, or uncontrolled shoot-through events. The AGDR-72C addresses these failure modes through a layered hardware protection architecture described in detail below.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Optocoupler Isolation Architecture: The AGDR-72C employs high-speed optocouplers on the PWM signal input path to achieve reinforced galvanic isolation between the low-voltage control domain (typically 5 V logic from the inverter control board) and the high-voltage gate drive domain (±15 V referenced to the IGBT emitter). This isolation barrier must withstand repetitive common-mode voltage transients (dV/dt) exceeding several kV/μs during IGBT switching events. The selected optocouplers are characterized for propagation delay matching across the six gate driver channels — timing skew between channels is a primary contributor to shoot-through current in phase legs, and the AGDR-72C’s matched propagation delay specification keeps inter-channel skew within the IGBT’s safe operating area (SOA) margin.

Desaturation Detection and Active Clamp: When an IGBT enters a short-circuit condition, its collector-emitter voltage (V_CE) rises above the saturation threshold. The AGDR-72C monitors V_CE through a high-voltage diode network connected to the IGBT collector. Upon detecting V_CE exceeding the desaturation threshold (typically 7–9 V), the board initiates a controlled soft turn-off sequence — ramping the gate voltage down at a controlled rate rather than abruptly removing the gate signal. This soft turn-off limits the rate of current collapse (di/dt), suppressing the inductive voltage spike (L × di/dt) that would otherwise exceed the IGBT’s V_CE(max) rating. The entire detection-to-shutdown sequence is completed in under 10 μs, well within the IGBT’s short-circuit withstand time (t_SC, typically 10 μs for modern 1,700 V IGBT modules).

Under-Voltage Lockout (UVLO): The auxiliary power supply (±15 V) is monitored continuously by a hardware comparator circuit. If the positive rail drops below approximately +12 V — a condition that would result in insufficient gate drive voltage and partial IGBT turn-on, dramatically increasing conduction losses and junction temperature — the UVLO circuit immediately disables the gate output and asserts the fault signal. This prevents the IGBT from operating in a linear (non-saturated) mode, which is the primary cause of thermal runaway in gate driver failures.

EMC Design: The board layout follows a split-ground plane strategy: the control-side ground (referenced to the inverter control board) and the gate-side ground (referenced to the IGBT emitter) are separated at the isolation barrier. Decoupling capacitors are placed at the auxiliary supply pins with a combination of bulk electrolytic and high-frequency ceramic capacitors to suppress supply-rail noise generated by adjacent switching events. Gate resistors (R_G) are mounted directly on the board, allowing ABB to tune the gate charge/discharge rate for each specific IGBT module type used in the drive stack, balancing switching loss against EMI emission and dV/dt stress on motor insulation.

System Integration Benefits

• Deterministic fault response: Hardware-level desaturation detection operates independently of the drive’s DSP control loop, ensuring short-circuit shutdown occurs within the IGBT’s t_SC window regardless of software state or CPU load.
• Matched propagation delay across channels: Factory-characterized optocoupler matching minimizes inter-channel timing skew, reducing shoot-through risk in phase legs and maintaining inverter output waveform symmetry.
• Fault transparency to the control system: The open-collector fault output provides a direct, low-latency signal to the inverter control board, enabling the drive’s protection logic to log fault events with timestamp resolution and distinguish gate driver faults from overcurrent or overvoltage events.
• Plug-and-play replacement in ACS800 / ACS880 chassis: The board uses the same connector footprint and guide-rail dimensions across the AGDR-7xC family, allowing field replacement without chassis modification or re-wiring.
• Tunable gate resistance: On-board R_G components allow system integrators to adjust switching speed for specific IGBT module types, enabling the same board to be used across different power ratings within the ACS800 platform.
• Reinforced isolation margin: The isolation barrier is rated for repetitive high dV/dt transients, maintaining signal integrity in drive systems with long motor cables where reflected wave phenomena generate additional common-mode stress.
• Thermal stability: The board operates across a −10 °C to +55 °C ambient range with no derating of protection thresholds, ensuring consistent fault response in both cold-start and high-ambient industrial environments.
• Reduced commissioning overhead: As an OEM-matched component, the AGDR-72C requires no parameter adjustment or firmware configuration upon installation — the drive’s existing parameter set remains valid, eliminating the re-commissioning step required when substituting non-OEM driver boards.
• Diagnostic transparency: The fault signal architecture allows the drive’s event log to capture gate driver fault events with sufficient resolution to distinguish nuisance trips (caused by supply noise) from genuine IGBT fault events, supporting root-cause analysis without oscilloscope access.

Quality Assurance & Global Logistics

Every AGDR-72C unit supplied by siemensplc.com is sourced through verified ABB distribution channels and industrial OEM supply networks. Prior to dispatch, each board undergoes a structured inspection protocol: visual examination of PCB surface, solder joints, and component integrity; functional bench verification of auxiliary supply rails and fault output continuity; and ESD-safe handling throughout the process in accordance with IEC 61340-5-1.

Units are packaged in anti-static shielding bags, placed in foam-padded cartons with corner protection, and sealed for international transit. From our warehouse in Xiamen, China, we dispatch via DHL Express, FedEx International Priority, and UPS Worldwide Expedited — with typical transit times of 3–7 business days to Europe, North America, Southeast Asia, and the Middle East. For time-critical plant shutdowns, same-day dispatch is available for in-stock units confirmed before 14:00 CST.

All new OEM units carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with a target response time of 48 hours, and replacement units are dispatched before the defective unit is returned where stock permits, minimizing plant downtime.

Export documentation — including commercial invoice, packing list, certificate of origin, and ECCN classification — is prepared for all international shipments. HS Code 8537.10 applies to this product category for customs classification purposes.
