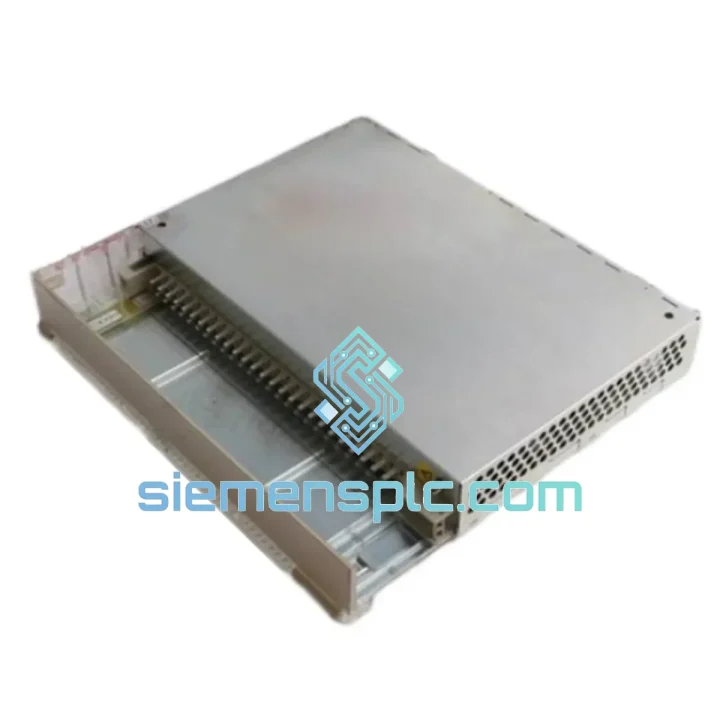

ABB AI610 3BHT300000R1 Analog Input Module – AC 800M S800 I/O

ABB AI610 3BHT300000R1 — 8-Channel Analog Input Module for AC 800M Distributed Control Architecture

The ABB AI610, identified by catalog number 3BHT300000R1, is a dedicated analog signal acquisition module engineered for deployment within ABB’s AC 800M controller platform and the S800 I/O subsystem. Its primary function within a control loop is to serve as the front-end signal conditioner and digitizer: it receives 4–20 mA current signals or 0–10 V / ±10 V voltage signals from field-mounted transmitters, applies per-channel scaling, and delivers calibrated process values to the AC 800M CPU’s process database at deterministic scan intervals. Without accurate, low-latency analog acquisition at this stage, downstream PID controllers, alarm management systems, and historian servers all operate on degraded data. The AI610 eliminates that risk through a 16-bit successive-approximation ADC architecture, providing 65,536 discrete resolution steps across the full input span—sufficient for tight regulatory control in pressure, temperature, flow, and level loops where ±0.1% full-scale accuracy is a baseline requirement.

📦 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The AI610’s internal architecture centers on a multiplexed 16-bit SAR (Successive Approximation Register) ADC shared across all eight input channels. A precision analog multiplexer sequences through each channel under firmware control, feeding the selected signal into a programmable-gain instrumentation amplifier (PGIA) before the ADC stage. This PGIA stage is critical: it normalizes the wide input range spread (4–20 mA through ±10 V) to the ADC’s reference voltage window without introducing nonlinearity at range boundaries—a common failure point in lower-grade modules that use fixed-gain front ends.

Galvanic isolation between the field-side analog circuitry and the S800 ModuleBus backplane is implemented via DC-DC converter isolation for power and optocoupler-based signal paths for data. This two-stage isolation topology provides a minimum 500 V DC withstand voltage between field wiring and the controller bus, directly addressing IEC 61000-4-5 surge immunity requirements. In environments with long cable runs—common in oil & gas or power plant installations—this isolation prevents ground potential differences (which can reach tens of volts) from corrupting ADC readings or damaging the module’s input stage.

EMC performance is reinforced through a multi-layer PCB design with dedicated ground planes separating analog and digital domains. Decoupling capacitors are placed at each power rail entry point, and the module housing provides shielding continuity when seated on the carrier. The result is compliance with EN 61326-1 for industrial electromagnetic environments, including radiated immunity up to 10 V/m and conducted immunity per IEC 61000-4-6. For installations near variable-frequency drives or high-current switchgear—both common in process plants—this EMC architecture is not optional; it is the difference between stable 4–20 mA readings and noise-induced false alarms.

The optical ModuleBus interface eliminates galvanic coupling between the I/O station and the AC 800M CPU module entirely. Data is transmitted as optical pulses at a fixed baud rate, making the communication path immune to the common-mode voltage transients that affect RS-485 or CAN-based fieldbus implementations. This is particularly relevant in large installations where I/O cabinets may be located 100+ meters from the controller cabinet.

System Integration Benefits

• Per-channel signal type configuration: Each of the eight channels can be independently assigned to current or voltage input mode through ABB Control Builder M software, eliminating the need for hardware jumper changes or module variants when field instrument types are mixed within a single I/O station.
• Deterministic scan latency: The AI610 delivers process values to the AC 800M CPU at a configurable, fixed scan interval. This determinism is essential for cascade control loops where the inner loop’s derivative action depends on consistent sample timing—jitter in analog acquisition directly degrades PID tuning stability.
• Integrated open-circuit and over-range diagnostics: The module continuously monitors each channel for wire-break conditions (4–20 mA below 3.6 mA threshold) and over-range inputs. Fault status is propagated to the AC 800M event log and to the 800xA HMI alarm system in real time, enabling operators to distinguish between a genuine process excursion and a field instrument failure without leaving the control room.
• Hot-swap replacement on TB840A carriers: When mounted on a TB840A dual-carrier in a redundant I/O configuration, the AI610 can be physically removed and replaced while the process is running. The redundant module maintains signal acquisition continuity, and the replacement module is automatically commissioned by the AC 800M firmware upon insertion—zero-downtime maintenance in critical continuous processes.
• Engineering unit scaling in hardware: Scaling from raw ADC counts to engineering units (e.g., 0–100 bar, −50 to +200°C) is configured in Control Builder and executed within the AC 800M CPU’s I/O processing task, not in application code. This separation keeps application programs clean and ensures scaling consistency across all consumers of the process value.
• Compatibility across the full AC 800M CPU range: The AI610 operates with PM851, PM856, PM860, PM861, PM864, and PM866 CPU modules running Control Builder M 5.0 and above. This broad compatibility simplifies spare parts management in multi-generation installations where different CPU variants may coexist.
• Low power consumption per channel: The module draws power exclusively from the S800 ModuleBus carrier, with total module consumption well within the carrier’s power budget. This allows high-density I/O configurations—multiple AI610 modules on a single TB820V2 chain—without requiring additional power supply modules.
• Traceable firmware and hardware revision documentation: Each AI610 unit carries a hardware revision label and firmware version accessible via Control Builder’s hardware inventory function. This traceability supports IEC 62443 cybersecurity asset management requirements and simplifies spare parts qualification audits in regulated industries.

Quality Assurance & Global Logistics

Every ABB AI610 3BHT300000R1 unit supplied through siemensplc.com is sourced as genuine OEM hardware through verified industrial procurement channels. Prior to listing, each module undergoes a structured inspection protocol: physical condition assessment covering housing integrity, connector pin condition, and label authenticity; hardware revision verification against ABB’s published revision history; and serial number format validation to screen for non-genuine units with inconsistent marking patterns.

Shipments originate from our warehouse in Xiamen, China—a major logistics hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Standard transit times are 3–5 business days to Europe and North America, 2–4 business days to Southeast Asia and the Middle East, and 1–2 business days to Hong Kong, Taiwan, and South Korea. For time-critical plant shutdowns or emergency MRO requirements, same-day dispatch is available on in-stock units for orders confirmed before 14:00 CST.

Export documentation issued with every shipment includes a commercial invoice with HS code 8537.10, a detailed packing list, and a Certificate of Conformance. For orders requiring it, an Inspection Report and third-party test certificate can be arranged. All shipments are fully insured against transit damage and loss. EXW Xiamen terms are available for customers using their own freight forwarders.
