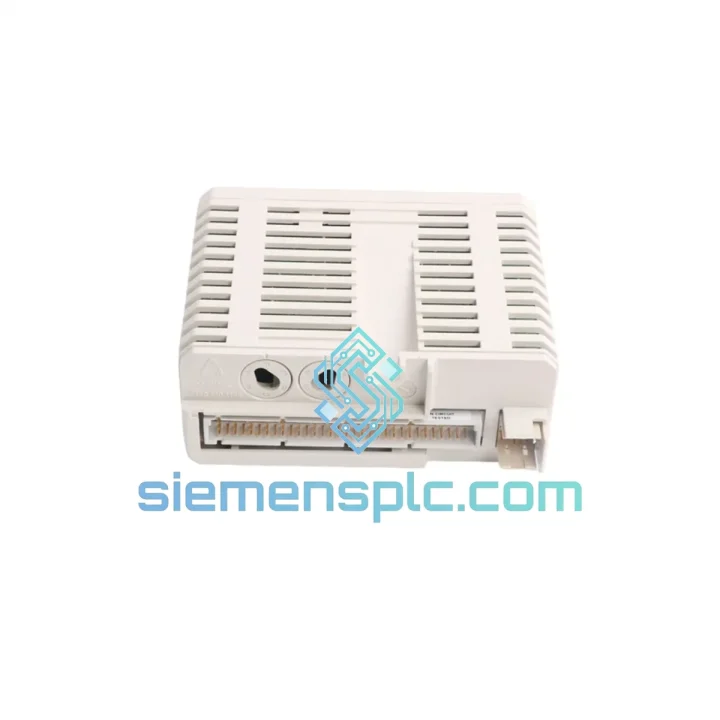

ABB AI830 3BSE008518R1 Analog Input Module

ABB AI830 3BSE008518R1 — Stop the Bleed: Every Hour of RTD Signal Loss Costs You More Than This Module

Your reactor is running blind. Eight temperature loops just went dark. The DCS alarm stack is climbing and your shift supervisor is already on the phone. You know the fault — the AI830 RTD input module has failed — and you know what it takes to get back online. What you need right now is not a datasheet. You need the part, on a plane, today.

The ABB AI830 (3BSE008518R1) is the 8-channel RTD analog input module for the S800 I/O platform, the field I/O backbone of ABB’s AC800M DCS. When this card drops out, you lose temperature visibility across an entire baseplate slot — Pt100 loops, heat exchanger monitoring, reactor jacket control, all of it. In a refinery or chemical plant, that is not a maintenance event. That is a production loss event measured in thousands per hour.

We stock the AI830 3BSE008518R1 in Xiamen and ship globally via DHL Express and FedEx International Priority. Most orders clear customs and land on your bench within 48–72 hours of payment confirmation. We have done this for plants in Germany, Saudi Arabia, Malaysia, and Brazil. The process is the same every time: confirm stock, issue proforma, ship same day or next morning.

This is not a marketplace listing. This is a direct line to a team that understands what a failed S800 I/O card means at 2 AM during a turnaround.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Most common failure modes on the AI830:

1. All 8 channels read 32767 (overflow) or -32768 (underflow) simultaneously. This is almost never a field wiring fault. It points to the module itself — either the analog front-end ASIC has failed or the ModuleBus communication has dropped. Check the module status LED first. A solid red or alternating red/green pattern confirms the module is not communicating with the baseplate. Swap the module before chasing wiring.

2. Single-channel open-circuit alarm (Diagnostic code 0x8010 or equivalent in 800xA). Pull the MTU terminal block on that channel. Measure resistance across the RTD leads directly at the terminal. If the RTD reads correctly at the terminal but the channel still faults after reconnection, the input multiplexer for that channel has failed internally. The module needs replacement — there is no field repair for this.

3. Intermittent channel drift — readings wander ±5°C with no process change. Classic symptom of a degraded reference resistor on the analog front-end. Often triggered by thermal cycling in high-ambient enclosures. If the drift correlates with enclosure temperature, the module is failing. Do not recalibrate — replace.

Replacement procedure checklist:

• Confirm the baseplate slot address. The AI830 uses automatic slot addressing via the S800 ModuleBus — no DIP switch setting required on the module itself. The address is determined by physical slot position on the baseplate (TB820V2, TB840A, etc.).
• In 800xA, note the I/O channel configuration (sensor type, wiring mode, filter time) before pulling the old module. These parameters are stored in the controller project, not on the module — but confirm they are correct in the engineering tool before going live.
• The AI830 is hot-swappable. You do not need to power down the baseplate or the controller. Pull the old module, insert the new one. The AC800M will detect the new module within seconds and resume scanning.
• After insertion, verify all 8 channels return to expected values in the 800xA operator display. Check the module diagnostic object in Control Builder for any residual faults.
• If the replacement module was stored for an extended period, allow 15–20 minutes of warm-up time before trusting the readings in precision applications.
• Firmware: The AI830 does not carry user-upgradeable firmware in the field. Firmware is factory-loaded. Ensure your replacement module revision (R1 for 3BSE008518R1) matches your existing installation to avoid any compatibility edge cases with older AC800M firmware versions.

Reliability in Harsh Conditions

The S800 I/O platform was not designed for climate-controlled server rooms. It was designed for the kinds of environments where modules get coated in hydrocarbon mist, where enclosure temperatures swing from 5°C at night to 55°C during summer shutdowns, and where vibration from compressors and pumps is a constant background condition.

The AI830 3BSE008518R1 is built to IEC 61131-2 environmental requirements. The PCB assembly uses conformal coating to resist moisture ingress and condensation — a critical feature in coastal refineries and offshore platforms where humidity regularly exceeds 95% RH. The module’s mechanical design locks positively into the S800 baseplate with a retention latch that resists vibration-induced loosening, a failure mode that plagues cheaper I/O platforms in high-vibration installations near rotating machinery.

Thermal performance is equally robust. The analog front-end maintains measurement accuracy across the full operating temperature range without requiring field recalibration. In practice, this means a module installed in a hot enclosure in a Middle Eastern plant will deliver the same measurement quality as one in a temperate European facility — provided the enclosure stays within the rated ambient range.

Every unit we ship has been inspected for physical integrity: connector pins, latch mechanism, PCB condition, and label authenticity. Modules showing any sign of prior thermal stress, connector damage, or counterfeit labeling are rejected before they reach your hands.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express gateways. This is not a drop-ship arrangement. Stock is physically on our shelves.

Standard express timeline from order confirmation:

• Day 0 (payment confirmed before 14:00 CST): Module picked, packed in anti-static + moisture-barrier packaging, and handed to DHL/FedEx same day.
• Day 1: Airfreight departs Xiamen or connects via Shanghai/Hong Kong hub.
• Day 2–3: Delivery to most destinations in Europe, Middle East, Southeast Asia, and North America. Remote locations may add 24 hours.

All shipments include a commercial invoice, packing list, and certificate of origin — the documentation set your customs broker needs to clear the shipment without delay. For plants with strict incoming inspection requirements, we can provide a certificate of conformity and inspection report on request.

We have shipped to refineries in the Netherlands, petrochemical complexes in Saudi Arabia and Kuwait, paper mills in Scandinavia, and pharmaceutical plants in India and Singapore. The logistics process is the same regardless of destination: fast, documented, and traceable from our door to yours.

For shipments requiring export licensing or special customs handling (certain countries require end-user declarations for industrial control equipment), contact us before placing the order. We handle this regularly and will advise on the correct documentation path.

Contact Information

Email: [email protected]
WhatsApp: +86 18359268345
