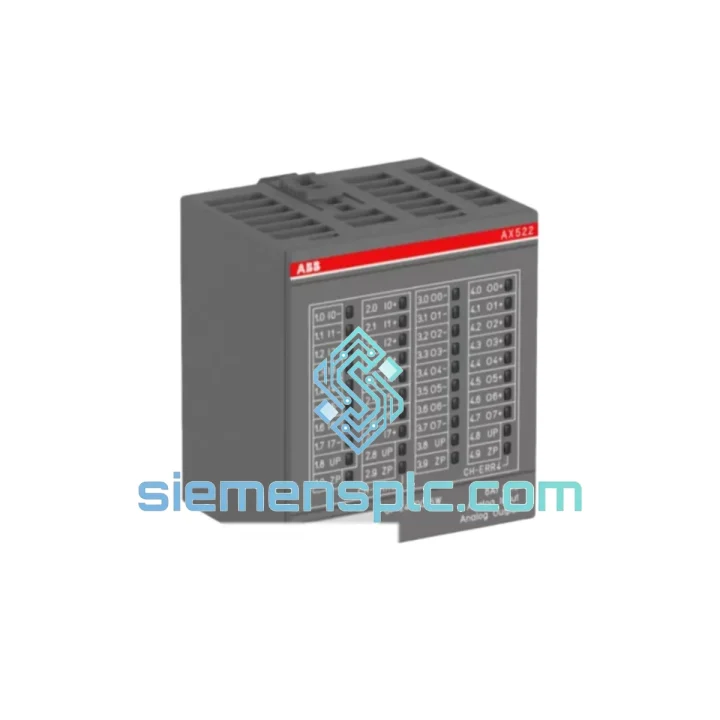

ABB AX522 PROFIBUS DP Communication Module

ABB AX522 Down? Every Minute of Downtime Costs You Money — Ship Today from Xiamen

Your AC500 line is stopped. The HMI is throwing a PROFIBUS fault. Maintenance is on the phone. You’ve already isolated the AX522 as the failed node — now you need a verified replacement in your hands, not a 6-week lead time from a regional distributor. We stock the ABB AX522 and ship globally via DHL/FedEx Express. Orders confirmed before 18:00 CST dispatch same day. This is the module. This is the source.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures that point to a dead AX522:

• Automation Builder / PS501 reports “PROFIBUS DP: Bus fault” or “Module not responding” on the communication slot.
• BF (Bus Fault) LED on the AX522 front panel is solid red — not blinking. A blinking BF indicates a configuration mismatch; solid red means hardware-level failure.
• All downstream DP slaves drop to safe state simultaneously with no change in field wiring — classic sign of a dead DP Master.
• CPU diagnostic buffer logs Event ID 0x0D00 or 0x0D01 (communication module hardware error).

Step-by-step hot-swap replacement procedure:

1. Verify CPU firmware compatibility. AX522 requires AC500 CPU firmware ≥ V2.4.0 for full hot-swap support. Check via Automation Builder → CPU Properties → Firmware Version. If below this version, a controlled CPU stop is required before module removal.
2. Export current DP configuration. In Automation Builder, right-click the AX522 node → Export → save the .dp configuration file. This preserves all slave GSD assignments, I/O mapping, and watchdog settings. You will import this into the replacement module.
3. No DIP switches on AX522. Unlike older Siemens CP modules, the AX522 has no physical address switches. The DP Master address (default: 0) is set entirely in software via Automation Builder. Confirm the address assignment before downloading to the replacement unit.
4. Slot matters. The AX522 must occupy the left-side communication slot (COM1) on the AC500 CPU. Inserting into COM2 (if present) will result in the module being unrecognized. Verify slot labeling on the CPU faceplate.
5. GSD file for slave mode. If your AX522 is configured as a DP Slave (subordinate to an upstream Siemens S7 or other DP Master), the upstream master’s configuration tool requires the ABB AX522 GSD file (file: ABB_AX522.gsd). Download from ABB Library before reconfiguring the upstream master.
6. Bus termination check. After module swap, verify that the PROFIBUS segment termination resistors (220 Ω pull-up / 390 Ω pull-down network) are active at both physical cable ends. A missing terminator after a rushed swap is the #1 cause of intermittent BF faults post-replacement.
7. Download and cold-restart. After importing the saved DP configuration, perform a full download to the CPU and execute a cold restart (not warm). This forces the AX522 to re-initialize the DP bus and re-establish communication with all slaves from scratch.

Firmware mismatch warning: If the replacement AX522 carries a different hardware revision (check the label: HW Rev printed below the ABB logo), verify compatibility with your CPU firmware version in the ABB AC500 Firmware Compatibility Matrix before powering up. A revision mismatch will not damage hardware but will prevent the module from initializing.

Reliability in Harsh Conditions

The AX522 is not a lab instrument — it was designed for the floor. ABB subjects AC500 communication modules to IEC 61131-2 environmental qualification testing before release. What that means in practice:

• Vibration: Tested to IEC 60068-2-6 (sinusoidal, 5–150 Hz, 1g) and IEC 60068-2-27 (shock, 15g / 11 ms half-sine). The module withstands the vibration profile of a running compressor station or a press line without connector fatigue or PCB trace cracking.
• Thermal cycling: Rated for continuous operation at +60 °C ambient — not derated. In a sealed control cabinet with poor ventilation running at 55 °C, the AX522 keeps communicating. Storage down to -40 °C means it survives unheated warehouses and cold-climate commissioning without component stress.
• Humidity and condensation: Conformal coating on the PCB provides protection against humidity up to 95 % RH non-condensing. In coastal or tropical installations — water treatment plants, port facilities, food processing — the module does not corrode or short under normal humidity swings.
• EMC immunity: Compliant with IEC 61000-4-2 (ESD, 4 kV contact / 8 kV air), IEC 61000-4-4 (EFT/Burst, 2 kV), and IEC 61000-4-5 (surge, 1 kV). In environments with large motor drives, welding equipment, or frequent switching transients, the AX522 maintains communication integrity without nuisance resets.
• ATEX Zone 2 / IECEx certification: For installations in potentially explosive atmospheres (gas group IIC, temperature class T4), the AX522 carries the necessary certifications for Zone 2 use — relevant for oil & gas wellhead panels and chemical plant junction boxes.

Units shipped from our Xiamen warehouse are inspected for physical integrity, label authenticity (ABB holographic seal, date code, revision marking), and powered-on functional verification. We do not ship modules that have not passed this gate.

Global Express Logistics

Downtime does not wait for sea freight. Our logistics process is built around one objective: get the module to your site before your next production shift.

• Warehouse location: Xiamen, Fujian, China — direct access to Xiamen Gaoqi International Airport (XMN) and Xiamen Port, with daily DHL and FedEx Express pickup schedules.
• Same-day dispatch: Orders confirmed and paid before 18:00 CST (UTC+8) are packed, photographed, and handed to the carrier the same evening. Tracking number delivered to your inbox within 2 hours of pickup.
• Transit times (DHL/FedEx Express):
  • Southeast Asia (SG, MY, TH, VN): 1–2 business days
  • Middle East (AE, SA, QA): 2–3 business days
  • Europe (DE, NL, PL, TR): 3–4 business days
  • North America (US, CA, MX): 3–5 business days
  • South America (BR, CL, CO): 5–7 business days
  • Africa (ZA, NG, EG): 4–6 business days
• Packaging: Anti-static bag → foam-lined rigid carton → outer corrugated box with fragile labeling. The AX522 arrives at your site in the same condition it left our shelf.
• Export documentation: Commercial invoice, packing list, certificate of origin, and HS code declaration (HS 8537.10) included with every international shipment. Customs clearance support available on request for high-duty markets.
• Insurance: Full declared-value cargo insurance available on request. Recommended for high-value urgent orders.
