ABB BZCU-12L Drive Control Card

ABB BZCU-12L ACS800 Control Card: Stop the Clock on Your Downtime — Ships Today from Xiamen

Your ACS800 drive just tripped. The line is cold. Every minute costs real money — whether it’s a bottleneck in a paper mill, a stalled pump in a water treatment plant, or a dead conveyor in an automotive body shop. The BZCU-12L is the brain of the ACS800 control architecture, and when it fails, nothing else matters until it’s replaced. We stock it. We ship it. We’ve done this hundreds of times.

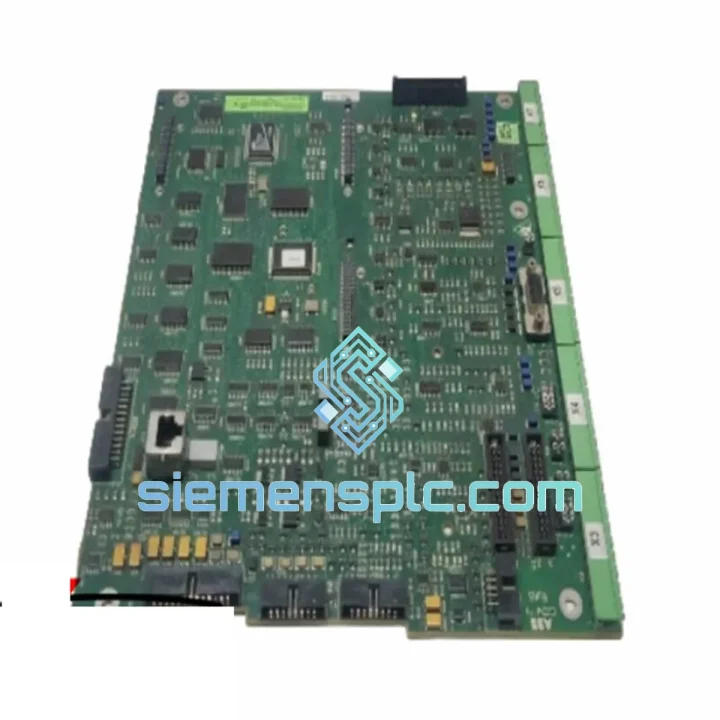

This listing is for the ABB BZCU-12L — the main control card used across the ACS800 single-drive and multidrive cabinet platforms. Every unit we dispatch is 100% original ABB, sourced through traceable industrial supply chains, and physically inspected before it leaves our warehouse in Xiamen, China.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling BZCU-12L failures across pulp mills, chemical plants, and automotive lines, here are the patterns that show up again and again:

Common Fault Codes Pointing to BZCU-12L Failure:

• F-0001 / F-0002 (Overcurrent / DC Overvoltage): If these faults appear without a load-side cause and the IGBT gate signals check out, suspect the control card’s measurement circuitry. Swap the BZCU-12L before condemning the power stage.
• F-0022 (Control Board Temp): Often a false reading caused by a degraded NTC sensor circuit on the control card itself — not actual overtemperature.
• A-2015 / F-2015 (Panel Loss): If the CDP312R panel is fine but communication drops intermittently, the DDCS fiber transceiver on the BZCU-12L is a known weak point after 5–8 years of operation.
• Drive powers up but outputs no PWM: The ASIC on the BZCU-12L responsible for generating gate pulses has failed. No parameter change will fix this — the card must be replaced.
• Random resets with no fault log: Electrolytic capacitor aging on the 5V/15V rails of the control card. Measure rail voltages under load before assuming a firmware issue.

Replacement Procedure — Field Notes:

• 1. Parameter backup first. Use DriveWindow or the CDP312R panel to upload a full parameter backup before powering down. The BZCU-12L holds the parameter set in non-volatile memory — a new card ships with factory defaults.
• 2. Discharge the DC bus. Wait a minimum of 5 minutes after main power isolation before touching the control card. Verify DC bus voltage with a meter — do not rely on the charge indicator LED alone.
• 3. Note the RDCO slot configuration. If a RDCO-02 or RDCO-03 communication module is fitted, photograph its position and fiber connections before removal. Reconnect to the same slot on the new card.
• 4. Check DIP switch settings. The BZCU-12L has address DIP switches (SW1) used in multidrive configurations. Match the switch positions from the old card exactly — mismatch causes DDCS communication failure on first power-up.
• 5. Firmware version matching. If your ACS800 runs a non-standard application (e.g., crane control, winder, or pump/fan), confirm the application program version. The new card may need the application loaded via DriveWindow before commissioning.
• 6. First power-up sequence. Restore parameters from backup, run the motor ID run (if DTC mode), and verify all analog/digital I/O signals before releasing the drive to production.

Reliability in Harsh Conditions

The ACS800 platform was engineered for environments that would destroy consumer-grade electronics in days. The BZCU-12L reflects that design philosophy. The PCB uses conformal coating on critical signal traces, providing resistance to condensation and airborne contaminants common in paper mills, wastewater plants, and coastal industrial facilities. The fiber optic DDCS interface eliminates ground loop interference that plagues copper-based communication in high-noise drive rooms.

Vibration tolerance is validated to IEC 60068-2-6 standards — the card stays seated and functional on equipment subject to continuous mechanical vibration from compressors, presses, and heavy rotating machinery. Thermal cycling performance is equally robust: the onboard power supply regulators are rated for continuous operation at ambient temperatures up to 55°C, with short-term excursions handled by the thermal management design of the ACS800 enclosure.

Every BZCU-12L we stock is stored in climate-controlled conditions with ESD protection. Long-term storage in humid or thermally variable environments degrades electrolytic capacitors and oxidizes connector contacts — we rotate stock and inspect before dispatch to ensure you receive a card that performs from the first power-up, not one that fails six months into service.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian, China — one of the most connected export ports in Asia, with direct DHL and FedEx gateway access. Here’s how a typical urgent order moves:

• Order confirmed before 14:00 CST: Same-day dispatch. The unit is pulled, inspected, packed in anti-static ESD packaging with foam protection, and handed to the courier the same afternoon.
• DHL Express Worldwide: Southeast Asia 1–2 days, Europe 3–4 days, Americas 3–5 days, Middle East 2–3 days. Door-to-door with full tracking.
• FedEx International Priority: Available as an alternative for destinations where FedEx has stronger last-mile coverage. Transit times comparable to DHL.
• Export documentation: Commercial invoice, packing list, and certificate of origin are prepared for every international shipment. HS code 8537.10 is used for customs classification. We declare accurate values — no undervaluation that creates customs problems on your end.
• Bulk orders: For quantities of 3+ units or combined BOM orders, we can consolidate into a single shipment to reduce per-unit freight cost. Contact us for a freight quote before ordering.

We’ve shipped to Germany, Australia, Brazil, Saudi Arabia, South Korea, and over 40 other countries. If your plant is running, we can reach it.
