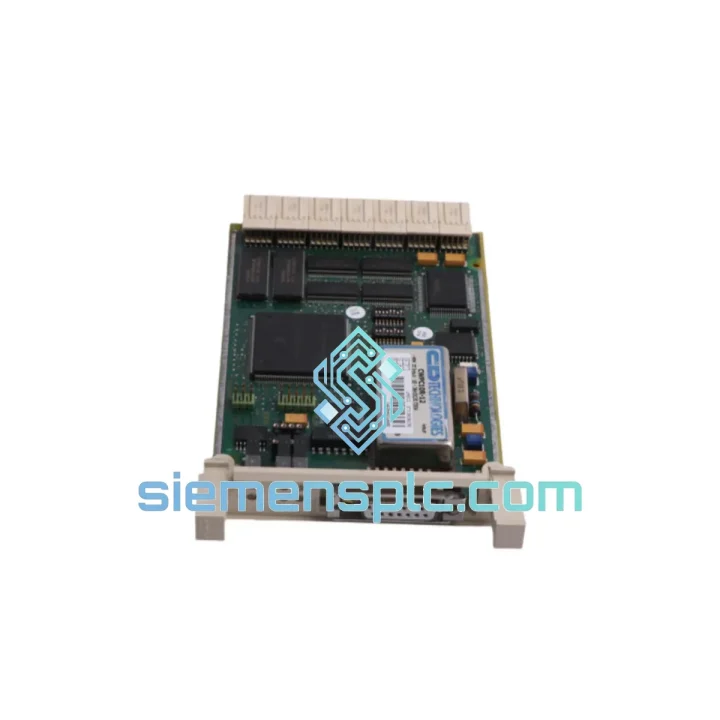

ABB CI547 3BNP004429R1 PROFIBUS DP Communication Module – AC500 Series

ABB CI547 3BNP004429R1 — PROFIBUS DP Master/Slave Communication Module for AC500 PLC Architecture

The ABB CI547, carrying the hardware part number 3BNP004429R1, is a dedicated PROFIBUS DP communication module engineered for integration into the ABB AC500 programmable logic controller platform. Its primary function within a control loop is to serve as the fieldbus gateway between the AC500 CPU backplane and a distributed PROFIBUS DP network — handling both Class 1 master cyclic data exchange and Class 2 acyclic DP-V1 parameter access without burdening the CPU’s main processing cycle.

In a typical process or discrete manufacturing architecture, the CI547 occupies a communication slot on the AC500 CPU module (PM5xx series), communicating internally via the AC500 high-speed parallel backplane bus. This internal bus operates at a fixed clock rate that decouples fieldbus timing from the CPU scan cycle, ensuring that PROFIBUS token rotation and GSD-defined I/O refresh intervals remain deterministic regardless of application program load. The module autonomously manages the PROFIBUS token ring, slave address assignment, and diagnostic frame collection — presenting pre-processed I/O images directly into the CPU’s process data memory map.

For engineers specifying fieldbus topology in multi-drop RS-485 segments, the CI547 supports baud rates from 9.6 kbit/s up to 12 Mbit/s, with automatic baud rate detection during network commissioning. At 12 Mbit/s, the maximum cable segment length is 100 m per segment (per IEC 61158-2 RS-485 physical layer specification), extendable via repeaters. The module supports up to 125 slave nodes in master mode, with configurable watchdog timers per slave to enforce fault isolation without cascading network failure.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Backplane Bus Decoupling Architecture: The CI547 implements a dual-port RAM (DPRAM) interface between the PROFIBUS DP ASIC and the AC500 backplane bus controller. This architecture means the PROFIBUS communication cycle and the CPU scan cycle operate asynchronously — the PROFIBUS ASIC writes refreshed slave I/O data into the DPRAM at the end of each DP bus cycle, while the CPU reads a consistent snapshot at the start of each scan. This eliminates mid-scan data corruption that would otherwise occur in tightly coupled single-bus designs.

EMC and Signal Integrity Design: The RS-485 transceiver stage on the CI547 incorporates galvanic isolation between the fieldbus connector and the module’s internal logic ground. This isolation barrier — typically implemented via optocouplers or digital isolators rated at ≥2.5 kV — prevents ground loop currents from coupling noise into the backplane. In industrial environments with variable-frequency drives (VFDs) or large inductive loads on the same cabinet ground rail, this isolation is a critical design requirement, not an optional feature. The D-Sub connector shell is bonded to the cable shield, providing a low-impedance path for high-frequency common-mode noise to the panel earth.

Watchdog and Fault Isolation Logic: Each configured DP slave entry in the CI547’s GSD-based configuration carries an independent watchdog timeout value. If a slave fails to respond within its watchdog window, the CI547 sets that slave’s status to FAIL in the diagnostic data area and substitutes the configured substitute values (typically zero or last-valid) for that slave’s input data — without halting the token rotation for the remaining healthy slaves. This per-slave fault isolation prevents a single failed field device from degrading the entire network’s data integrity.

DP-V1 Acyclic Channel: Beyond the standard DP-V0 cyclic I/O exchange, the CI547 supports DP-V1 Class 2 services, enabling the CPU application program to issue parameterization read/write requests to intelligent slave devices (e.g., ABB ACS series drives, HART gateways, or smart valve positioners) without interrupting the cyclic data stream. The acyclic channel uses a separate logical connection with its own timeout and retry management, handled entirely within the CI547 firmware.

System Integration Benefits

• Deterministic I/O refresh: The DPRAM-based backplane interface guarantees that the CPU always reads a complete, consistent I/O image — no partial updates mid-scan — supporting time-critical control loops with cycle times down to the millisecond range.
• Zero CPU overhead for bus management: Token rotation, slave polling, and diagnostic frame handling are executed entirely within the CI547’s onboard PROFIBUS ASIC, freeing the AC500 CPU’s processing capacity for application logic.
• Scalable network topology: With support for up to 125 slave nodes and repeater-extended RS-485 segments, a single CI547 can address large distributed I/O architectures spanning multiple cabinet rows or plant sections.
• Transparent diagnostics: The CI547 maps per-slave diagnostic data (station status bytes, manufacturer-specific diagnostic extensions) directly into the CPU’s process image, making fault localization available to the application program without requiring separate diagnostic tools during runtime.
• DP-V1 parameterization access: Enables online parameter adjustment of intelligent field devices (drives, positioners, analyzers) from the PLC application layer, reducing the need for separate handheld configuration tools during commissioning and maintenance.
• Plug-and-play GSD-based configuration: The module is configured via standard GSD (General Station Description) files within ABB Automation Builder (Codesys-based), eliminating proprietary configuration overhead and supporting third-party PROFIBUS slave integration.
• Broad slave interoperability: PROFIBUS International (PI) certification ensures interoperability with any PI-certified DP slave device, including drives, remote I/O, encoders, and process instruments from any manufacturer.
• Redundancy-ready architecture: In AC500 systems configured with CPU redundancy (hot-standby), the CI547 participates in the redundancy switchover protocol, maintaining fieldbus communication continuity during CPU failover events.

Quality Assurance & Global Logistics

Every ABB CI547 3BNP004429R1 unit supplied by siemensplc.com is sourced through verified industrial distribution channels with full traceability to ABB’s manufacturing and serialization records. Units are inspected against the following criteria before dispatch: label and part number integrity (CI547 / 3BNP004429R1 match), housing and connector condition, firmware version compatibility with current AC500 CPU firmware releases, and ESD packaging integrity.

Shipments originate from our warehouse in Xiamen, China — a major export hub with direct access to international express carriers including DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard export documentation (commercial invoice, packing list, HS code 8537.10 classification) is prepared for every international order. For project orders requiring consolidated shipments or specific Incoterms (EXW, FOB, CIF), our logistics team coordinates directly with freight forwarders to meet project delivery schedules.

All units are shipped in anti-static ESD bags within foam-lined cartons, with moisture barrier desiccant packs for sea freight consignments. A 12-month warranty covers manufacturing defects from the date of shipment. Dead-on-arrival (DOA) claims are processed within 7 business days of receipt notification, with replacement units dispatched via express courier at no additional freight cost.
