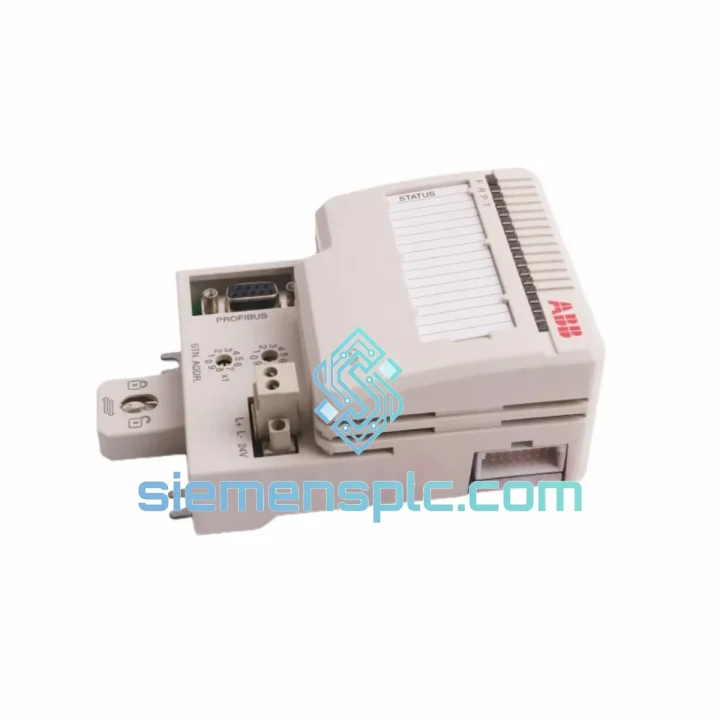

ABB CI801 3BSE022366R1 Profibus Communication Module

ABB CI801 3BSE022366R1 Profibus DP-V1 Master — Segment Down? We Ship the Same Day You Call.

When a CI801 fails, it doesn’t take one loop offline — it drops the entire Profibus DP-V1 segment. Every slave on that trunk goes dark: variable-speed drives, HART field devices, remote I/O stations, valve positioners. In a continuous process plant, that’s not a maintenance ticket. That’s a production stoppage with a clock running. We carry the ABB CI801 3BSE022366R1 in bonded stock at our Xiamen facility, sourced directly from ABB’s authorized distribution chain, and we dispatch the same business day on confirmed orders received before 15:00 CST. No waiting on a distributor’s back-order queue. No gray-market substitutes. The module ships with its original ABB production label, batch traceability code, and firmware revision sticker intact — documentation your quality team can verify on arrival.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Why CI801 Modules Fail — Field Pattern Analysis
After handling CI801 callouts across refinery DCS upgrades, batch plant expansions, and emergency shutdowns, three failure modes dominate: backplane connector degradation from repeated reseating (gold contacts oxidize or deform after 40–60 insertion cycles); firmware stack lockup triggered by AC 800M CPU OS upgrades performed without validating CI801 firmware compatibility; and surge damage from unprotected Profibus cable runs sharing conduit with VFD output wiring. Identifying the failure mode before ordering the replacement determines whether a module swap resolves the issue or whether additional corrective action is required.

Fault Pattern 1 — Bus Silent After Module Swap (Most Frequent)
New CI801 seated, powered up, LED solid green — but zero slave communication. The module is alive; the Profibus stack is not. The CI801 holds no local configuration. Every slave address assignment, GSD file binding, and bus timing parameter lives in the AC 800M project database in Control Builder M. Open CBM, connect to the controller, and execute a full project download. Watch the download log for hardware configuration mismatch warnings — these indicate the slot position in the CBM hardware tree does not match the physical slot where the replacement was installed. Correct the slot assignment in CBM before assuming the module is defective.

Fault Pattern 2 — Cyclic Slave Dropouts on Loaded Segments
Bus runs for 20–90 minutes, then slaves begin dropping out in sequence. This is a timing margin problem, not a hardware failure. On segments at 1.5 Mbps or higher with 20+ slaves, default T_slot and Ttr values in CBM may be too tight for actual cable length and slave response latencies. Pull Profibus diagnostics from CBM → Hardware → CI801 → Diagnostics. Incrementing Retry counters on specific slave addresses identify the devices with marginal timing. Increase T_slot by 10–15% and re-download. If retries stop, timing was the root cause. If they persist, inspect bus termination — an active termination resistor on an intermediate node is the most common post-replacement instability trigger.

Fault Pattern 3 — DP-V1 Acyclic Requests Failing
Cyclic I/O is healthy, but HART-over-Profibus reads or acyclic parameter writes to positioners and drives are timing out. The CI801 supports Class 2 master services, but acyclic token bandwidth must be explicitly reserved in the bus parameters. In CBM, increase Min Slave Interval and allocate a dedicated acyclic slot. Also verify the target slave’s GSD file declares DP-V1 support — older GSD revisions that only declare DP-V0 silently block all acyclic requests regardless of master configuration.

Fault Pattern 4 — Controller OS Version Mismatch
CI801 requires AC 800M Controller OS 5.0 as a hard minimum. On PM8xx CPUs running OS 4.x, the module appears in the hardware scan but the Profibus stack never initializes. Symptom: persistent red LED with event log entry “CI801: Communication stack initialization failed.” Upgrading the CPU OS requires a planned window and a CBM version that supports the target OS. Confirm compatibility in ABB document 3BSE036351 before scheduling.

Step-by-Step Replacement Procedure

1. If the AC 800M is in redundant mode (PM866 pair), initiate a controlled switchover to the standby CPU before touching the primary rack. The backplane bus remains energized in RUN state.
2. Place the target controller in STOP mode via CBM. Confirm the STOP indicator on the CPU front panel before proceeding.
3. Disconnect the DB9 Profibus cable. Tag the cable with segment ID and termination status (terminated / pass-through) — this is critical for correct reconnection.
4. Release the CI801 locking lever (orange tab, push down) and extract with a straight pull. No rocking — the backplane connector does not tolerate lateral stress.
5. Inspect the replacement 3BSE022366R1: verify firmware revision label matches or exceeds the failed unit. Check backplane connector pins for shipping deformation. Install into the identical slot position — CBM references physical slot number, not module serial number.
6. Reconnect the DB9 cable. Verify bus termination: the 220 Ω / 390 Ω termination network must be active only at the two physical endpoints of the segment. Termination on an intermediate node is the leading cause of post-replacement bus instability.
7. Return controller to RUN mode. Execute a full CBM project download. Monitor CI801 LED: solid green = all slaves in cyclic exchange; slow green flash = bus active with slave faults; red = configuration error or stack failure.
8. Confirm all slave devices return to cyclic exchange. Clear latched diagnostic messages in the AC 800M event log. Obtain process control room sign-off before releasing the system.

Reliability in Harsh Conditions

The CI801 3BSE022366R1 was qualified for environments where the control cabinet ambient peaks at 50 °C, the floor vibrates from compressor foundations, and the cable trays carry 690 V VFD output conductors alongside instrumentation wiring. ABB’s conformal coating process on the CI801 PCB provides protection against condensation, salt fog, and low-concentration corrosive atmospheres — the conditions found in offshore platforms, coastal chemical plants, and pulp mills where uncoated boards develop trace corrosion within 18 months of installation.

Mechanical qualification follows IEC 60068-2-6 sinusoidal vibration profiles across the 5–150 Hz range at 1 g acceleration — the envelope covering compressor houses, pump stations, and steel mill drive rooms. The backplane connector’s positive-locking mechanism maintains contact integrity under sustained vibration that causes conventional card-edge connectors to develop intermittent faults over a 3–5 year service life.

EMC immunity is a functional requirement in racks that share cable infrastructure with high-current bus bars and arc furnace control wiring. The CI801’s shielded architecture, combined with the DB9 metal shell and the requirement for shielded twisted-pair Profibus cable, provides the conducted and radiated immunity margins needed to maintain deterministic bus timing in electrically aggressive environments. Emissions comply with EN 55011 Class A without requiring external line filters on the backplane supply rail.

Every CI801 we ship carries full traceability documentation — original ABB production label, batch code, and firmware revision sticker. No refurbished units with unknown service histories. No counterfeit modules with cloned labels. The module you receive is the module ABB manufactured and tested, with the documentation chain intact from factory to your receiving dock.

Global Express Logistics

Our Xiamen warehouse operates a 15:00 CST same-day cut-off. Orders confirmed and paid before that threshold are picked, inspected, anti-static bagged, and packed in double-wall export cartons with die-cut foam inserts before carrier pickup. Each urgent replacement order moves as a standalone priority shipment — we do not batch or consolidate emergency orders.

DHL Express Worldwide Transit Estimates: Hong Kong / Macau — next business day. Singapore, Malaysia, Thailand, Vietnam — 2–3 business days. Germany, Netherlands, United Kingdom, France — 3–5 business days. United States, Canada — 4–6 business days. UAE, Saudi Arabia, Qatar — 3–4 business days. Australia, New Zealand — 4–5 business days.

FedEx International Priority is available for destinations where your company holds a preferred FedEx account or where DHL coverage is restricted. Carrier selection can be specified at order confirmation — we work with your logistics team’s requirements.

Every shipment includes a commercial invoice, packing list, and certificate of origin. HS Code 8537.10 is pre-declared on all export documentation. For destinations requiring an import license, end-user certificate, or dual-use export compliance review, contact us before placing the order. We have processed export documentation for industrial automation hardware to over 60 countries.

Tracking numbers are issued within 2 hours of carrier pickup and delivered via email and WhatsApp simultaneously. We monitor active shipments and intervene proactively with the carrier on customs holds, routing exceptions, or delivery failures — you are not left chasing the carrier yourself during a production emergency.
