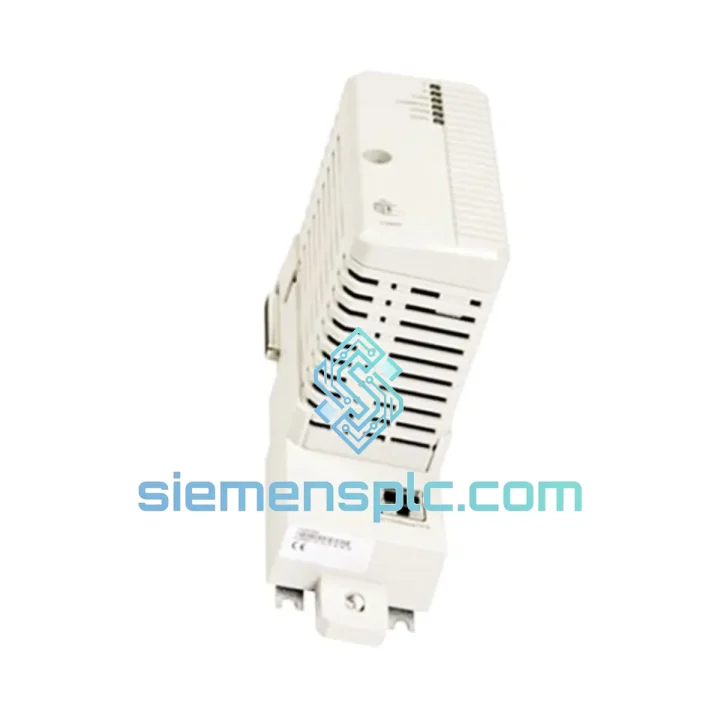

ABB CI860 3BSE032444R1 Communications Module

ABB CI860 / 3BSE032444R1 — Stop the Clock on Your Downtime: PROFIBUS DP Master In Stock, Ships Today

Your AC 800M controller just lost its PROFIBUS DP link. Field devices are blind. The process is frozen. Every minute costs real money — and you already know that a slow supply chain is not an option. The CI860 (3BSE032444R1) is on our shelf in Xiamen right now. We’ve handled enough emergency callouts to know that what you need is not a brochure — you need the part, the specs, and a tracking number. Here’s all three.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping a CI860 under pressure is not complicated — but there are four things that will burn you if you skip them.

1. Confirm the firmware revision before you pull the old card. Open ABB Control Builder M, navigate to the controller hardware tree, and note the CI860 firmware version currently running. The replacement unit must match or exceed that version. A firmware mismatch between the CI860 and the AC 800M CPU firmware baseline is the single most common cause of a failed hot-swap — the controller will flag a hardware mismatch fault (event code HW_MISMATCH or similar in the event log) and refuse to bring the module online.

2. Check the slot address assignment. The CI860 does not use physical DIP switches for addressing — its slot position in the AC 800M rack is its address. Verify that the replacement module goes into the exact same slot as the failed unit. If you’re forced to use a different slot (e.g., the original slot has backplane damage), you must update the hardware configuration in Control Builder M and perform a full download before the module will communicate.

3. Inspect the DB9 PROFIBUS connector before reinserting. Bent pins on the DB9 female socket are a frequent secondary fault — the original module failure may have been caused by a surge event that also damaged the connector. Use a magnifier. A single bent pin will give you intermittent DP communication faults that look like a bad module but are actually a connector issue.

4. Verify bus termination at both segment ends. After reinserting the CI860, if the DP segment comes up but slaves are reporting intermittent diagnostic errors (Diag.ExtDiag or Station_Non_Existent), the first thing to check is termination. At 12 Mbps, an unterminated segment will cause reflections that corrupt cyclic data frames. Confirm that the first and last physical devices on the segment have their termination resistors enabled (the switch on the PROFIBUS connector body).

Common fault codes associated with CI860 failure:

• DP_BUS_FAULT — Loss of PROFIBUS DP segment; check cable continuity and termination first, then suspect the CI860 if cable checks out.
• SLAVE_LOST — One or more DP slaves dropped off the network; can indicate CI860 degradation or a cable fault upstream of the affected slaves.
• MODULE_FAULT / HW_ERROR — Internal CI860 hardware failure; module requires replacement.
• COMM_ERROR on AC 800M event log — Backplane communication failure between CI860 and CPU; reseat the module first, replace if fault persists after reseating.

Reliability in Harsh Conditions

The CI860 was engineered for process industries where the control room is not air-conditioned and the cabinet is mounted 10 meters from a furnace. ABB designed the module to operate continuously at 55 °C ambient — not as a peak rating, but as a sustained operating condition. The galvanic isolation barrier between the PROFIBUS DP fieldbus and the AC 800M backplane is not a marketing feature; it is the reason this module survives ground loop events that destroy cheaper fieldbus interfaces.

Vibration tolerance meets IEC 60068-2-6 test Fc requirements — the module will not develop intermittent connector faults from the mechanical vibration typical of compressor halls, pump stations, or steel mill environments. Humidity tolerance up to 95% RH non-condensing means the module handles coastal and tropical installations without derating. The conformal coating on the PCB provides additional protection against airborne contaminants — sulfur compounds, chlorine, and particulate matter that accelerate corrosion on uncoated boards.

Every unit we ship has been stored in a climate-controlled warehouse and inspected for corrosion, label integrity, and connector condition before dispatch. We do not ship modules that have been sitting in uncontrolled storage — the failure rate on those units in the first 90 days of service is unacceptable, and we’ve seen enough warranty claims from that practice to have eliminated it entirely from our sourcing process.

Global Express Logistics

Our dispatch warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international express networks. For urgent replacement orders, we operate a same-day dispatch cutoff of 16:00 CST for orders confirmed with payment before that time.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK, France): 3–5 business days via DHL Express Worldwide
• North America (USA, Canada): 4–5 business days via FedEx International Priority
• South America (Brazil, Chile, Colombia): 5–7 business days via DHL or FedEx
• Australia & New Zealand: 3–4 business days via DHL Express

All shipments include a commercial invoice with accurate HS code classification (HS 8537.10 for programmable controller modules), packing list, and certificate of origin where required for customs clearance. We have handled export documentation for controlled industrial electronics for over a decade — your shipment will not be held at customs due to paperwork errors. Real-time tracking is provided via DHL/FedEx tracking number issued within 2 hours of dispatch. For orders requiring formal export licenses or end-user certificates, contact us in advance and we will advise on documentation requirements for your jurisdiction.
