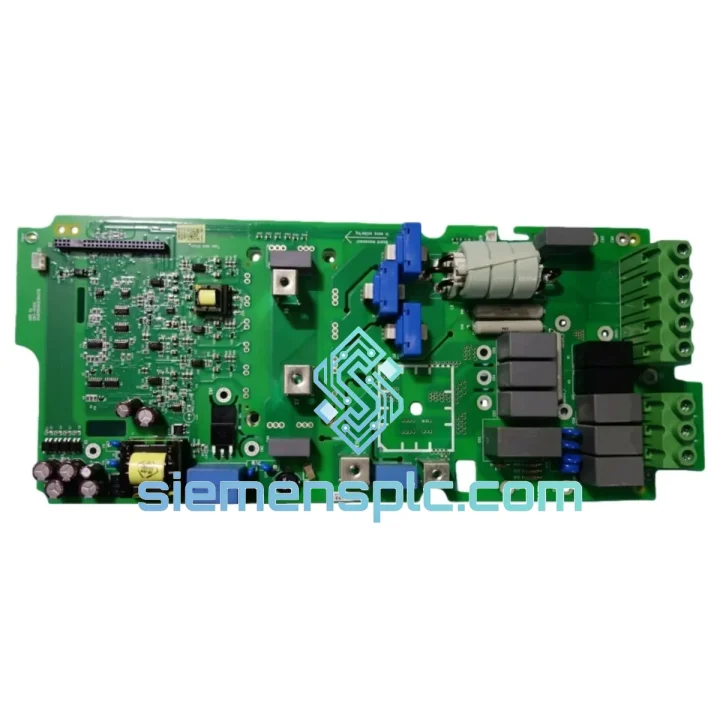

ABB CINT-4421C Gate Driver Card

ABB CINT-4421C Gate Driver Card — Stop the Bleeding, Get Your ACS800 Back Online

Every minute your ACS800 drive sits dead on the floor, the clock is running — lost throughput, idle labor, delayed shipments. The CINT-4421C gate driver card is the single most common failure point in the ACS800 inverter section, and it is the one part you cannot afford to wait weeks for. We stock it in Xiamen, we ship it today, and we have done this enough times to know exactly what you need to get back to full production without a second unplanned stop.

This is not a refurbished pull or a grey-market clone. Every CINT-4421C we dispatch is a genuine ABB OEM board, sourced through verified distribution channels, inspected against factory reference standards, and ready to drop straight into your drive frame. No firmware surprises. No compatibility guesswork. Just a working drive.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling hundreds of ACS800 field failures, these are the patterns that show up again and again when the CINT-4421C is the culprit:

Fault codes that point directly at the gate driver:

• FF-52 / FF-53 (Short Circuit) — IGBT shoot-through triggered by a degraded gate signal. Before condemning the IGBT module itself, swap the CINT-4421C first. A weak gate drive signal causes the same fault signature as a shorted power device, and the card is a fraction of the cost.
• FF-54 (Earth Fault) — Can be a genuine ground fault in the motor cable, but a leaking gate driver that partially fires the wrong IGBT leg will produce an identical fault. Isolate the motor, clear the fault, and watch whether it returns immediately on restart — if it does, the driver card is suspect.
• FF-01 (Overcurrent) — Intermittent overcurrent with no load change is a classic sign of asymmetric gate timing. One phase fires late, current spikes, drive trips. The CINT-4421C controls all six gate signals; a single degraded optocoupler on the board is enough to cause this.
• Drive powers up, fans run, but no output voltage on any phase — The RDCU control board is alive, the DC bus is charged, but nothing fires. Nine times out of ten this is a dead CINT-4421C with no gate signals reaching the IGBTs.

Step-by-step replacement procedure:

1. Isolate the drive from mains supply and verify DC bus voltage is below 50 V with a calibrated meter before touching any internal component. ACS800 bus capacitors hold lethal charge for several minutes after power-off.
2. Document the drive’s parameter set via the CDP control panel or DriveWindow before any hardware work. A board swap should not affect parameters, but having a backup takes 30 seconds and saves hours if something goes wrong.
3. Photograph the existing CINT-4421C connector positions and cable routing before disconnecting anything. The fiber-optic cables in particular are easy to mix up — label them with tape if needed.
4. Release the board retaining clips, disconnect all connectors and fiber-optic links, and slide the card out of its guide rails. Handle by the edges only — the gate driver section is ESD-sensitive.
5. Seat the new CINT-4421C, reconnect all connectors in documented order, and verify the fiber-optic cables are fully clicked home. A half-seated fiber link causes intermittent faults that are extremely difficult to diagnose.
6. Power up with the motor disconnected first. Confirm the drive reaches READY state and no fault codes appear. Then reconnect the motor and run a low-speed test before returning to full load.
7. No DIP switch or address configuration is required on the CINT-4421C — it is not a fieldbus adapter. The board is passive from a configuration standpoint; it takes gate signals from the RDCU and drives the IGBTs. If the drive still faults after replacement, the fault source is elsewhere (RDCU, RMIO, or the IGBT module itself).

Firmware note: The CINT-4421C is hardware-only — no firmware resides on this board. There is no flash procedure required after installation. Drive firmware version compatibility is determined by the RDCU control board, not the gate driver card.

Reliability in Harsh Conditions

The ACS800 platform was designed for the roughest industrial environments on the planet — pulp mills, offshore platforms, mining concentrators, cement kilns. The CINT-4421C reflects that design philosophy. The board’s conformal coating protects the PCB and component leads against condensation, salt fog, and airborne process dust that would corrode an unprotected board within months. The gate driver ICs are rated for continuous operation across the full ACS800 ambient temperature range, and the fiber-optic isolation between the control section and the high-voltage gate outputs means that a catastrophic IGBT failure does not propagate back into the control electronics.

In vibration-intensive applications — compressors, crushers, large pump sets — the through-hole construction of the critical gate driver components provides mechanical robustness that surface-mount-only designs cannot match. ABB’s manufacturing process for this board includes vibration and thermal cycling qualification per IEC 60068 environmental test standards, ensuring the solder joints and connector retention forces remain within specification after years of continuous service in a panel that shakes.

When you are sourcing a replacement for a drive that lives in a 45 °C switchroom with no air conditioning, or a coastal installation where salt air gets into everything, the OEM board is not a luxury — it is the only choice that gives you a predictable service life.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international courier consolidation centers for DHL Express and FedEx International Priority. This is not a drop-ship arrangement. Stock is physically on our shelves, inspected, and ready to pack.

Standard export process for a CINT-4421C order:

• Order confirmed before 14:00 CST — same-day dispatch in most cases
• Commercial invoice & packing list — prepared with correct HS code (8537.10) and declared value for smooth customs clearance
• DHL Express — typical transit: Southeast Asia 1–2 days, Middle East / Europe 3–5 days, North America 4–6 days
• FedEx International Priority — available as alternative carrier; same-day booking cutoff applies
• Tracking number — sent to your email within 2 hours of dispatch
• Bulk orders (5+ units) — consolidated packing with full ESD protection; sea freight available for non-urgent large quantities

We have shipped automation components to over 40 countries. If your country has specific import documentation requirements — FORM E certificates, import licenses, specific invoice formats — tell us at order time and we will prepare the paperwork correctly the first time.
