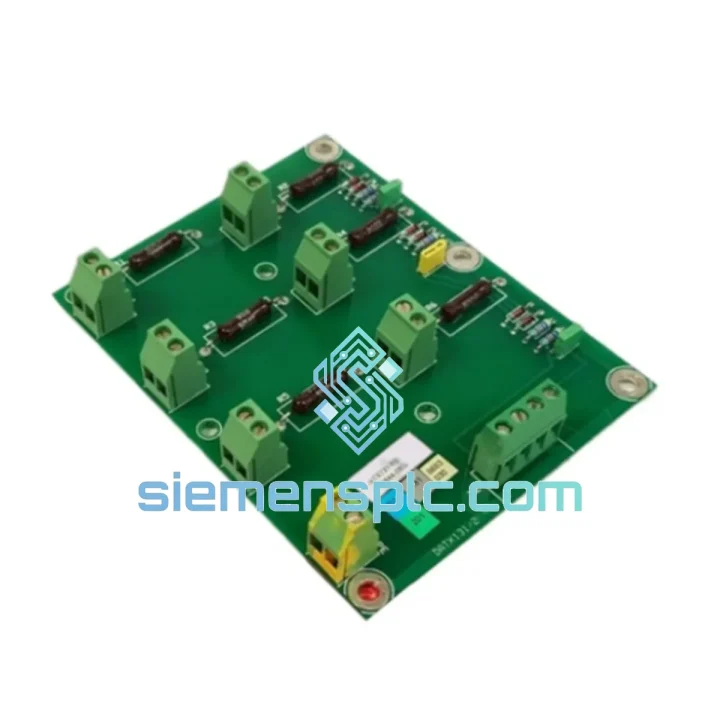

ABB DATX131 3ASC25H215 Digital I/O Interface Module

ABB DATX131 3ASC25H215 — Stop the Clock on Your Excitation System Downtime

Your UNITROL 5000 excitation system just dropped offline. The generator is dark. Every minute the turbine sits idle, your facility is bleeding revenue — and your maintenance window is already closing. The DATX131 (ABB part number 3ASC25H215) is the digital I/O interface module that bridges the excitation controller to every field device, protection relay, and supervisory interlock in your plant. Without it, voltage regulation is gone, synchronization signals are dead, and your generator stays offline. We stock this module in Xiamen and ship same-day via DHL Express or FedEx Priority — because waiting two weeks for a factory order is not an option when the turbine hall is silent.

The UNITROL 5000 is ABB’s flagship static excitation platform, deployed across thousands of thermal, hydro, gas turbine, and nuclear power stations worldwide. The DATX131 sits at the heart of its I/O architecture, handling discrete digital signals for fault annunciation, remote start/stop commands, and protection interlock logic. It is not a generic I/O card — it is a platform-specific module with firmware dependencies and hardware addressing that must be matched precisely to your system revision. That specificity is exactly why sourcing it fast, from a supplier who understands the architecture, matters.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for the DATX131:

• Fault code F1230 / F1231 (I/O Communication Loss): The UNITROL 5000 controller loses handshake with the DATX131 over the internal bus. First step — reseat the module firmly in its slot and check the backplane connector for bent pins or oxidation. If the fault persists after a cold restart, the module itself has failed.
• Intermittent discrete input dropout: Typically caused by capacitor degradation on the input filter stage. Symptoms appear as spurious fault trips or missed remote commands. A refurbished DATX131 with recapped input circuits resolves this permanently.
• No response to remote start/stop commands: Before condemning the DATX131, verify the 24 VDC field supply to the input terminals is within spec (18–30 VDC). If supply is confirmed good and the controller shows no input state change, the DATX131 input optocouplers have failed.
• Output relay chatter or failure to energize: Output relay coils on the DATX131 can fail open after extended operation in high-vibration environments. Check with a multimeter across the relay output terminals — no continuity on a commanded output confirms relay failure.

Replacement procedure — critical configuration steps:

1. Record the existing module address: Before pulling the failed DATX131, note the rotary address switch setting on the module face. The UNITROL 5000 uses hardware addressing to assign I/O channels — a mismatch will cause the controller to map signals to the wrong physical terminals.
2. Match the firmware revision: Check the firmware label on the existing module (printed on the PCB or module face). The replacement DATX131 must carry the same or a compatible firmware revision. Mismatched firmware can cause I/O channel count discrepancies or communication protocol errors. Contact us with your existing firmware version — we will confirm compatibility before shipping.
3. DIP switch configuration: Some DATX131 variants include DIP switches for input voltage range selection (24 VDC vs. 48 VDC field supply) and output relay type (normally open vs. normally closed default). Photograph the existing switch positions before removal and replicate them exactly on the replacement module.
4. Cold restart sequence: After installing the replacement module, perform a full cold restart of the UNITROL 5000 controller — do not use a warm reset. The controller must re-enumerate all I/O modules on startup to correctly assign channel addresses. A warm reset may leave stale I/O maps in memory.
5. I/O channel verification: After restart, use the UNITROL 5000 diagnostic display or ABB’s CMT (Commissioning and Maintenance Tool) to verify all discrete input and output channels are reporting correctly. Force-test each output relay and confirm field device response before returning the excitation system to service.

Reliability in Harsh Conditions

Power generation environments are unforgiving. The DATX131 is engineered to operate continuously inside excitation cubicles where ambient temperatures routinely reach 50 °C, where transformer harmonics induce conducted EMI on every signal cable, and where the mechanical vibration from turbine operation never stops. ABB designed the UNITROL 5000 platform — and every module within it — to IEC 60068 environmental test standards, covering thermal cycling, vibration endurance, and humidity resistance.

The module’s PCB uses conformal coating on critical signal traces, protecting against condensation during seasonal temperature swings in outdoor or semi-outdoor switchgear installations. Input optocoupler isolation provides 2.5 kV galvanic separation between field wiring and the controller backplane, preventing ground loop interference from corrupting discrete signal states. Output relays are rated for 100,000 mechanical operations minimum — but in practice, the relay coil driver circuitry fails before the relay contacts in high-cycle applications, which is why the coil driver stage is the first thing our technicians inspect and replace during refurbishment.

Every refurbished DATX131 we ship has been bench-tested under simulated load conditions: all input channels exercised with a 24 VDC test source, all output relays cycled 500 times under rated load, and backplane communication verified against a live UNITROL 5000 controller. We do not ship modules that have only passed a visual inspection — functional verification is non-negotiable.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes. When you place an urgent order before 14:00 CST, the module ships the same business day. Here is what the logistics chain looks like from our shelf to your site:

• Day 0 (Order Confirmed): Module pulled from stock, ESD-bagged, foam-cushioned, and boxed. Export documentation prepared — commercial invoice, packing list, and HS code declaration (HS 8537.10 for programmable controllers and I/O modules).
• Day 0–1 (Customs Clearance): Shipment tendered to DHL Express or FedEx International Priority. China export customs clearance typically completes within 4–6 hours for pre-declared industrial electronics shipments.
• Day 1–3 (Transit — Asia/Europe/Middle East): DHL Express delivers to most European destinations in 2–3 business days from Xiamen. FedEx International Priority covers Southeast Asia in 1–2 days and North America in 3–4 days.
• Tracking: Full AWB tracking number provided within 2 hours of pickup. We monitor shipments proactively — if a delay is detected, we notify you immediately and coordinate with the carrier.
• Import Documentation: We provide all documents required for customs clearance in your country, including country of origin certificates on request. For EU imports, we can provide EUR.1 movement certificates where applicable.

For genuine emergencies — plant shutdown, safety system offline — call or WhatsApp us directly. We have arranged same-day courier handoffs and airport-to-airport freight for critical situations. The module reaches you faster than a factory order acknowledgment email.
