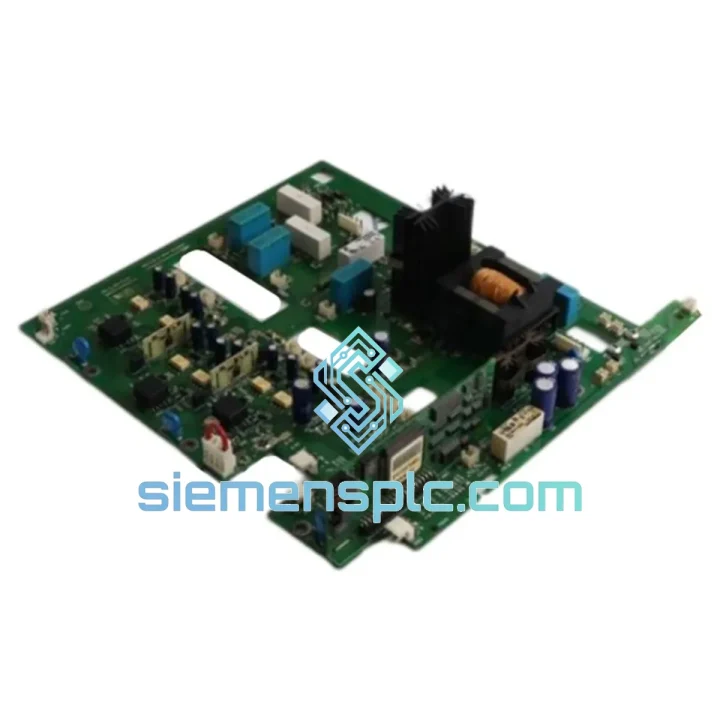

ABB DI685 3BDS005833R1 Digital Input Module

ABB DI685 3BDS005833R1 — Every Minute of Downtime Costs You Money. We Ship Today.

Your AC 800M system is down. The DI685 is the culprit — 16 channels gone dark, field signals lost, production halted. You’ve already pulled the module, confirmed the fault, and now you need a replacement in hand before the next shift. That’s exactly why we stock the ABB DI685 3BDS005833R1 in Xiamen, verified, tested, and ready to leave the warehouse the same day you call.

We don’t deal in refurbished gambles or grey-market unknowns. Every unit on our shelf is 100% original ABB, sourced through verified supply channels, with factory labels and serial numbers intact. When your process can’t wait, neither can we.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Step 1 — Confirm the fault before you pull the module. On the AC 800M, open Control Builder and check the hardware tree. A red X on the DI685 node with a “Module Missing” or “Communication Error” alarm is your confirmation. Don’t swap based on LED alone — a dead 24 VDC field supply can mimic a failed module. Verify bus voltage at the baseplate TB820V2 terminals first.

Step 2 — ModuleBus address is automatic. Don’t touch the baseplate switches. The S800 I/O system uses automatic slot addressing via the ModuleBus. The DI685 inherits its address from its physical position on the baseplate. If you’re replacing a module in the same slot, the AC 800M will recognize it immediately on reinsertion — no reconfiguration needed. If you’re moving it to a different slot, update the hardware configuration in Control Builder and download before insertion.

Step 3 — Hot-swap procedure. Grip the module by the extraction handle. Pull straight out — do not rock side to side, as the ModuleBus connector pins are fragile. Inspect the baseplate connector for bent pins or corrosion before inserting the replacement. Slide the new DI685 in until you feel the positive click of the locking tab. The AC 800M will auto-initialize within 3–5 seconds; watch for the green RUN LED on the module.

Step 4 — Common fault codes to know.

• “Module Type Mismatch” — You’ve inserted a different DI module variant. Verify the exact order code on the label matches 3BDS005833R1.
• “Communication Timeout” on all 16 channels simultaneously — Points to ModuleBus failure, not the DI685 itself. Check the CI module (CI801/CI830/CI857) and fiber/cable connections first.
• Single-channel stuck at Logic 0 — Field wiring issue or failed field device. Use the per-channel LED on the DI685 face to isolate. If LED is ON but Control Builder reads 0, suspect a firmware mismatch — check module firmware version in the hardware catalog.
• “Baseplate Error” — TB820V2 backplane fault. Swap the baseplate, not the module.

Step 5 — Firmware matching. The DI685 firmware is embedded and non-user-upgradeable. However, ensure your Control Builder hardware library (ABB Library for AC 800M) is at a revision that includes the DI685 device description. Older library versions may flag a “Device Description Not Found” warning. Update the library from ABB’s software portal if needed — this does not require a controller restart.

Reliability in Harsh Conditions

Industrial environments don’t forgive weak hardware. The DI685 was engineered for exactly the conditions that destroy lesser modules.

Vibration: The S800 I/O mechanical design uses a positive-locking baseplate connector and a rigid aluminum housing. The DI685 meets IEC 60068-2-6 vibration testing — 10–150 Hz, 1g — making it suitable for compressor skids, pump stations, and mobile offshore platforms where structural vibration is constant.

Thermal cycling: Rated to 55 °C continuous, the DI685 handles the heat generated inside densely packed control cabinets without derating. The galvanic isolation barrier is designed to maintain dielectric integrity through repeated thermal expansion and contraction cycles — a common failure mode in cheaper alternatives.

Humidity and condensation: Conformal coating on the PCB provides protection against humidity up to 95% RH non-condensing. In coastal or tropical installations — refineries in Southeast Asia, LNG terminals in the Middle East — this matters. Modules that lack conformal coating develop dendritic growth on PCB traces within 18 months in high-humidity environments. The DI685 doesn’t.

EMI/RFI immunity: Full galvanic isolation between field side and bus side means that transients from inductive loads — solenoid valves, motor contactors, relay coils — are blocked at the isolation barrier. The DI685 meets IEC 61000-4-4 (EFT) and IEC 61000-4-5 (surge) immunity standards, protecting your controller bus from field-side electrical noise.

Global Express Logistics

Our warehouse is in Xiamen, China — one of the country’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. When you confirm your order before 14:00 CST, your DI685 ships the same business day.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK): 3–5 business days via DHL Express Worldwide
• North America (USA, Canada): 4–5 business days via FedEx International Priority
• Australia / New Zealand: 3–4 business days via DHL Express

Every shipment includes a commercial invoice, packing list, and certificate of origin for customs clearance. For projects requiring ATEX documentation, SDS sheets, or third-party inspection certificates, notify us at order placement — we’ll prepare the paperwork in parallel with packing.

We ship EXW Xiamen as standard. CIF (Cost, Insurance, Freight) to your destination port is available on request. For orders above USD 5,000, we absorb the DHL express freight cost — ask for details when you contact us.

Tracking numbers are issued within 2 hours of dispatch. We monitor shipments proactively and will alert you to any customs holds or carrier delays before you have to chase us.
