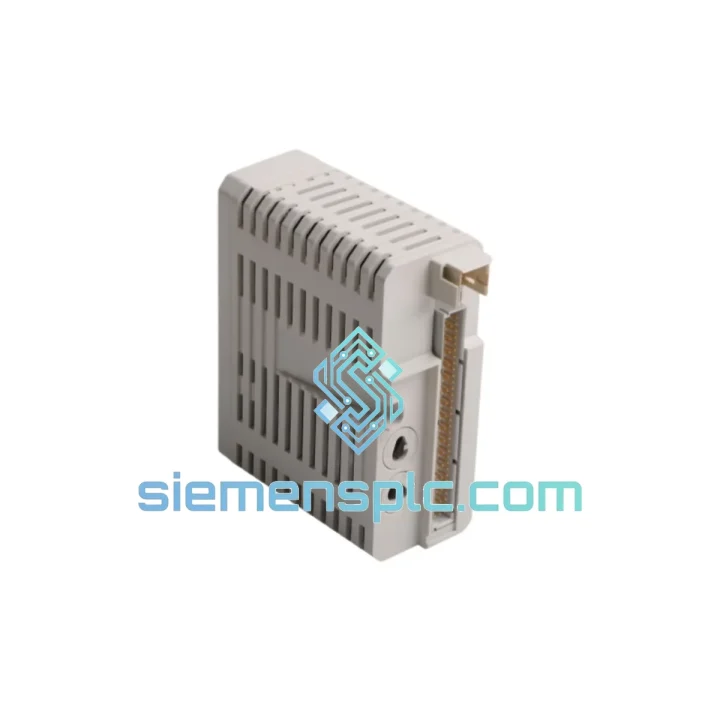

ABB DI811 3BSE008552R1 Digital Input Module

ABB DI811 3BSE008552R1 — Stop the Bleed: Every Minute of Downtime Has a Price Tag

Your S800 I/O station just threw a fault. The AC 800M controller is logging channel errors. The field device states are gone — valves, motors, interlocks — all dark. You’ve isolated it to the DI811. You need a replacement module on-site before the next shift, not in three weeks. That’s exactly why this page exists.

We stock the ABB DI811 (Part No. 3BSE008552R1) in Xiamen and ship globally via DHL Express and FedEx Priority. From the moment you confirm the order, our logistics team moves. No middlemen, no warehouse delays, no “we’ll check with our supplier” runaround. If it’s on the shelf, it ships today.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault Scenario: AC 800M reports “Module Missing” or “Hardware Fault” on the DI811 slot.

Before you pull the module, run through this sequence. Swapping hardware without ruling out software or wiring causes is how you end up ordering a second module unnecessarily.

Step 1 — Confirm the fault is module-side, not field-side. Check the per-channel LEDs on the DI811 face. If all 8 channel LEDs are off but the module status LED is green, the problem is upstream in the field wiring — not the module itself. If the module status LED is red or absent, proceed to replacement.

Step 2 — Check ModuleBus communication. The DI811 communicates via the S800 ModuleBus through the base unit (TB820V2 or TB840A). A failed base unit or a loose module-to-base connection will generate the same fault signature as a dead DI811. Reseat the module firmly. If the fault persists after reseating, swap the base unit first — they fail more often than the modules.

Step 3 — Hot-swap procedure. The DI811 supports hot insertion and removal within the S800 I/O station. You do not need to power down the I/O station or the AC 800M controller. However, confirm in Control Builder M that the module slot is configured before insertion — the controller will auto-recognize the module type upon insertion, but the channel configuration (signal type, filter time, inversion) must already exist in the project. If the slot was previously configured, the controller will resume normal operation within seconds of module insertion.

Step 4 — No address switches to set. Unlike older Siemens or Rockwell I/O platforms, the S800 DI811 has no physical DIP switches or rotary address selectors. Module addressing is handled entirely by the ModuleBus position within the I/O station. Slot position = module address. Confirm the replacement module is inserted into the same physical slot as the failed unit.

Step 5 — Firmware. The DI811 does not carry user-upgradeable firmware in the field. If the AC 800M reports a firmware mismatch after module insertion, verify that your Control Builder M project version is compatible with the hardware revision of the replacement module. Hardware revision is printed on the module label (e.g., “Rev. C”). Contact ABB technical support if a revision mismatch is confirmed — this is rare but documented in older S800 installations.

Common fault codes associated with DI811 failure:

• ERR 0x8001 — Module not responding on ModuleBus. Check base unit and cable continuity.
• ERR 0x8010 — Hardware type mismatch. Verify part number on replacement matches project configuration.
• ERR 0x8020 — Channel diagnostic fault. Indicates field-side wiring issue on one or more channels, not module failure.
• ERR 0x8030 — Power supply fault to module. Check 24VDC supply rail at the I/O station.

Reliability in Harsh Conditions

The S800 I/O platform was engineered for process industries where “harsh” is the baseline, not the exception. The DI811 is not a light-duty module dressed up with industrial marketing language — it is a module that has been deployed in North Sea offshore platforms, Southeast Asian petrochemical complexes, and Scandinavian pulp mills for over two decades.

Galvanic isolation between the field side and the system side is not optional on this module — it is built into the hardware architecture. This means a ground fault or voltage transient on the field wiring does not propagate into the ModuleBus or the AC 800M backplane. In environments where field cables run alongside high-voltage motor drives or welding equipment, this isolation is the difference between a nuisance fault and a controller failure.

The DI811 is rated for continuous operation at ambient temperatures up to 55°C without derating. In practice, this covers the vast majority of industrial control cabinet installations, even in tropical climates without air conditioning. The module’s conformal coating on the PCB provides additional protection against humidity and airborne contaminants — relevant in coastal facilities, chemical plants, and food processing environments where moisture ingress is a persistent concern.

Vibration resistance meets IEC 60068-2-6 standards, qualifying the module for installation on machinery skids, compressor packages, and marine vessels where structural vibration is continuous. Shock resistance per IEC 60068-2-27 covers transportation and installation handling without requiring special precautions beyond standard ESD protection.

The module’s per-channel LED indicators are not cosmetic — they are a diagnostic tool. During commissioning and fault-finding, the ability to visually confirm signal state at the module face without opening a laptop or navigating controller diagnostics saves significant time. In a live plant environment, that matters.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — one of the primary export hubs for industrial automation components in Asia. Xiamen Gaoqi International Airport handles daily DHL Express and FedEx Priority freight, with direct connections to major hubs in Hong Kong, Singapore, Dubai, Frankfurt, and Memphis.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia, Vietnam): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx Priority
• Europe (Germany, Netherlands, UK, France): 3–5 business days via DHL Express
• North America (USA, Canada): 4–6 business days via FedEx Priority International
• Australia / New Zealand: 3–5 business days via DHL Express
• South America (Brazil, Chile, Colombia): 5–7 business days via FedEx International Priority

Every shipment includes full tracking from pickup to delivery. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared same-day for orders confirmed before 14:00 CST. For orders requiring urgent customs clearance, we provide HS code classification support and can prepare additional documentation (MSDS, test reports) upon request.

Modules are packed in anti-static bags, placed in foam-lined boxes, and outer-packed in double-wall corrugated cartons rated for international air freight handling. We do not use bubble wrap as primary protection for electronic modules — it generates static. Every unit leaves our warehouse in the same condition it arrived.

For emergency orders where same-day shipment is required, contact us directly via WhatsApp before 12:00 CST. We will confirm stock, prepare documentation, and hand off to the courier within 4 hours of order confirmation.
