ABB DI86-32 57275782D Digital Input Module – Advant OCS

ABB DI86-32 57275782D — 32-Channel Optically Isolated Digital Input Module for High-Density DCS I/O Architectures

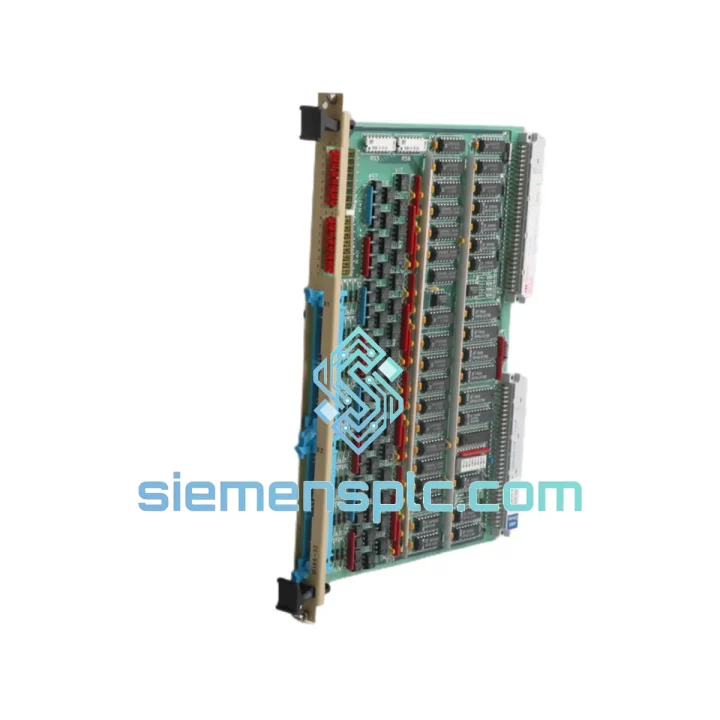

The ABB DI86-32 (catalog reference 57275782D) is a 32-channel digital input board engineered for deployment within ABB’s legacy Advant OCS and MOD 300 distributed control system platforms. In a process control loop, this module occupies the field-interface tier: it receives discrete 24 VDC signals from field instruments — valve limit switches, motor run/stop contacts, pressure switch outputs, and interlock relay states — and converts them into backplane-readable logic states that the DCS controller uses for sequence logic, alarm management, and safety interlock evaluation. Its 32-channel density per single rack slot makes it one of the most I/O-efficient boards in its generation, directly reducing cabinet footprint, wiring termination count, and per-point hardware cost in large-scale process installations.

Unlike modular I/O systems that distribute channel density across multiple sub-modules, the DI86-32 consolidates all 32 input channels onto a single PCB assembly with a unified backplane connector. This architecture eliminates inter-module communication latency within the channel group and simplifies spare-parts inventory management for maintenance teams operating under tight shutdown windows.

📦 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Opto-Isolation Architecture: Each channel group on the DI86-32 employs photocoupler-based galvanic isolation between the field wiring and the backplane logic domain. The photocoupler’s LED side is driven by the field 24 VDC signal through a current-limiting resistor network, while the phototransistor side interfaces directly with the module’s CMOS logic array. This two-domain separation means that ground loops, common-mode transients, and surge events originating in the field cable runs — common in environments with large motor starters, arc furnaces, or high-voltage switchgear — are absorbed at the isolation barrier rather than propagating into the controller’s logic circuitry. The isolation withstand rating of 500 VAC provides adequate margin for IEC 61000-4-5 surge immunity requirements applicable to industrial process environments.

Input Threshold Hysteresis: The module’s input comparator circuit incorporates a defined hysteresis band (logic HIGH ≥ 15 VDC, logic LOW ≤ 5 VDC) that prevents false state toggling caused by slow-rising field signals or contact bounce from mechanical relay outputs. This is particularly relevant in applications where field devices are located at the end of long cable runs (resistance-induced voltage drop) or where relay contacts exhibit bounce durations of 5–20 ms.

Backplane Bus Interface: The DI86-32 communicates with the Advant OCS controller via a parallel backplane bus architecture. The module presents its 32-channel state register as a memory-mapped I/O address block, which the controller reads during each scan cycle. This direct-mapped architecture eliminates the serialization latency inherent in fieldbus-connected I/O and ensures deterministic read timing — a critical property for interlock logic where input state must be current within a defined scan window.

EMC Design Considerations: The PCB layout routes field-side traces with controlled impedance and physical separation from backplane logic traces. Decoupling capacitors are placed at each photocoupler power supply pin to suppress high-frequency switching noise. The module’s metal faceplate and rack-mount frame provide a continuous Faraday enclosure that attenuates radiated emissions from adjacent high-current switching devices in the same cabinet.

Thermal Management: The DI86-32 operates within a 0–60 °C ambient range without forced cooling, relying on natural convection through the rack’s ventilation slots. Power dissipation per module is low (dominated by photocoupler LED drive current across 32 channels), making it thermally compatible with fully populated racks in standard industrial enclosures without requiring supplemental cooling infrastructure.

System Integration Benefits

• Deterministic scan-cycle alignment: As a memory-mapped backplane device, the DI86-32’s channel states are captured synchronously with the controller’s I/O scan, ensuring that all 32 inputs reflect a consistent snapshot at the same point in the control cycle — eliminating inter-channel time skew that can cause false logic conditions in interlocked sequences.
• High channel density per rack slot: 32 DI channels in a single slot reduces the number of I/O cards required for large discrete input counts, directly lowering rack hardware cost, wiring termination labor, and the number of potential failure points in the I/O subsystem.
• Native platform compatibility: Designed for the Advant OCS / MOD 300 backplane, the module requires no additional signal conditioning, protocol converters, or configuration adapters — it is recognized and addressed by the controller firmware without manual mapping.
• Galvanic isolation per channel group: Opto-isolation prevents field-side fault currents from reaching the controller backplane, protecting the CPU and other I/O modules from damage caused by field wiring faults, insulation breakdown, or inadvertent contact with higher-voltage circuits.
• Simplified spare-parts management: A single module type covers 32 input points, meaning maintenance teams need to stock fewer unique part numbers to maintain full I/O redundancy coverage across a large plant installation.
• Diagnostic transparency: The module reports its operational status via the backplane status register, allowing the DCS operator station to display module-level fault alarms without requiring physical inspection of the I/O rack — reducing mean time to diagnose (MTTD) during process upsets.
• Long-term platform support: The DI86-32 remains available as a genuine OEM spare and through qualified distributors, supporting plants that have standardized on the Advant OCS platform and require like-for-like replacement without system migration.
• ESD-hardened field interface: Input protection circuitry at each channel terminal suppresses electrostatic discharge events from field cable handling during maintenance, reducing the risk of latent damage to the photocoupler array during hot-swap or re-termination operations.
• Consistent signal conditioning across all 32 channels: Uniform resistor networks and matched photocouplers across all channels ensure that input threshold characteristics are consistent, eliminating per-channel calibration requirements and simplifying commissioning verification procedures.
• Rack-level grounding continuity: The module’s metal frame maintains electrical continuity with the rack chassis ground, ensuring that the module’s EMC shielding is bonded to the plant’s equipotential bonding network — a requirement under IEC 61000-5-2 for industrial installations.

Quality Assurance & Global Logistics

Every ABB DI86-32 57275782D unit supplied through siemensplc.com is sourced as genuine OEM hardware. Units undergo a structured pre-shipment verification process at our Xiamen, China facility: visual inspection for PCB damage, connector pin integrity check, power-on functional test with simulated 24 VDC field inputs across all 32 channels, and backplane communication verification where test equipment permits. Traceability documentation — including inspection records and photographic evidence — is available upon request for quality-critical procurement processes.

Packaging follows IEC 61340-5-1 ESD protection requirements: each module is sealed in a conductive anti-static bag, placed in foam-lined inner packaging, and shipped in a double-wall corrugated outer carton. For international shipments, cartons are labeled with HS code 8537.10 and accompanied by a commercial invoice and packing list compliant with customs requirements in major destination markets including the EU, USA, Southeast Asia, and the Middle East.

Standard dispatch from Xiamen is within 1–3 business days for in-stock units. Express courier options (DHL, FedEx, UPS) support delivery to most global destinations within 3–7 business days. For urgent plant shutdown requirements, same-day dispatch can be arranged for orders confirmed before 14:00 CST. All shipments include tracking and are covered by a 12-month warranty from the date of shipment.
