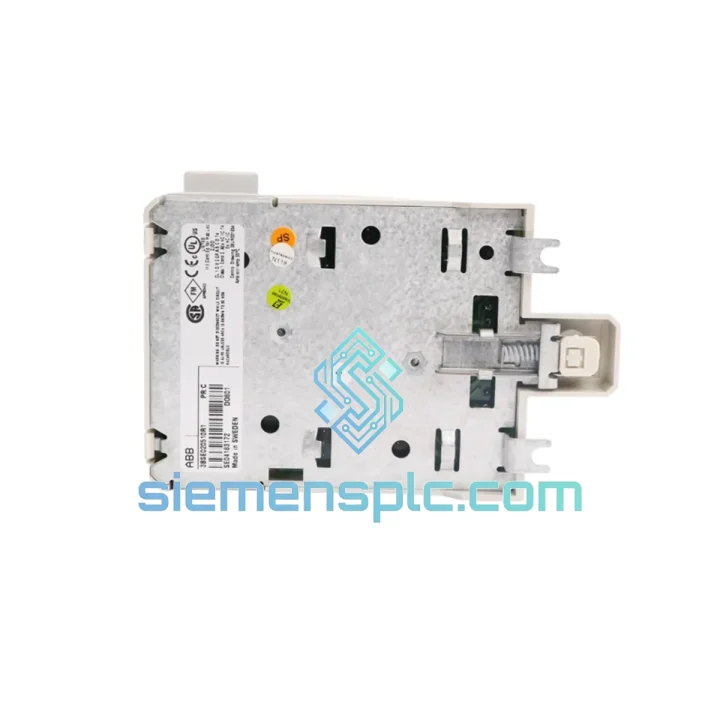

ABB DO801 3BSE020510R1 Digital Output Module

ABB DO801 3BSE020510R1 — Stop the Clock on Your Downtime

Every minute a digital output module stays dead, your process bleeds money. Valve commands go unacknowledged. Conveyor drives sit idle. Safety interlocks hold the line in fault state. The ABB DO801 (order code 3BSE020510R1) is the exact 8-channel 24 VDC solid-state output module your S800 rack needs — and we have it on the shelf right now, tested, packed, and ready to leave Xiamen today.

We have shipped this module to refineries in the Middle East, paper mills in Scandinavia, and compressor stations across Southeast Asia. The pattern is always the same: the plant calls at 2 AM, we confirm stock, and DHL has it at the gate before the next shift change. That is the only metric that matters when you are staring at a red fault light on your AC800M rack.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common fault signatures that point to a failed DO801:

• AC800M Control Builder reports “Module Missing” or “Communication Error” on the affected slot — the ModuleBus optical link has dropped, or the module’s internal processor has locked up.
• All 8 output LEDs extinguished simultaneously while the controller is in RUN — classic sign of an internal power rail failure inside the module, not a field wiring fault.
• Intermittent channel faults cycling through multiple outputs — often caused by a degraded baseplate connector or a module that has suffered a transient overvoltage on the field side.
• Fault code 0x8001 or 0x8002 in the AC800M event log against the DO801 slot — these map to “Module hardware fault” and “Module configuration mismatch” respectively.

Step-by-step replacement procedure (hot-swap, controller in RUN):

1. Verify hot-swap is enabled. In ABB Control Builder, confirm the affected I/O station has “Module Supervision” set to “Supervised” and that the controller application handles module absence without forcing a STOP. If not, coordinate a controlled stop before proceeding.
2. Document the slot position. The DO801 is slot-addressed automatically via the S800 ModuleBus — there are no DIP switches or rotary address selectors on this module. Slot identity is determined purely by physical position on the baseplate. Confirm the slot number in Control Builder before pulling the module.
3. Isolate field power. De-energize the 24 VDC field supply feeding the baseplate’s output terminals. Do not rely on the module’s internal short-circuit protection as a substitute for proper isolation during replacement.
4. Extract the faulty module. Press the release lever at the top of the module, tilt forward, and slide out. The optical ModuleBus connector disengages automatically — no fiber cables to disconnect manually.
5. Inspect the baseplate connector. Check the 48-pin backplane connector on the baseplate for bent pins, corrosion, or debris. A damaged baseplate connector is a common secondary cause of repeat module failures.
6. Insert the replacement DO801. Align the module with the baseplate guide rails, press firmly until the release lever clicks. The module self-identifies on the ModuleBus within 3–5 seconds.
7. Firmware compatibility check. If your AC800M firmware is below version 5.1, verify the DO801 hardware revision (printed on the module label) is compatible. Revision R0 modules require firmware ≥ 4.0; revision R1 and later are backward-compatible to firmware 3.x.
8. Restore field power and verify. Re-energize the 24 VDC field supply. In Control Builder online view, confirm the slot shows green, all 8 channels report “OK”, and the application resumes normal output cycling. Force-test one output channel from the online diagnostic panel before releasing the loop to automatic control.

Configuration note — no address switches required: Unlike older Siemens ET200 or Rockwell 1756 I/O, the S800 DO801 uses automatic slot-based addressing. There is nothing to configure on the module itself. If Control Builder shows a “Configuration Mismatch” after insertion, the issue is almost always a mismatched module type in the hardware configuration tree — verify the slot is defined as DO801, not a legacy DO810 or DO820.

Reliability in Harsh Conditions

The S800 I/O platform was engineered for environments where consumer-grade electronics simply fail. The DO801 carries ATEX Zone 2 certification, meaning it has been validated for use in atmospheres where flammable gases or vapors may be present — the standard for offshore platforms, gas compression stations, and chemical plant control rooms.

Vibration resistance is tested to IEC 60068-2-6: sinusoidal vibration at 10–150 Hz, 1 g acceleration, across all three axes. This covers the mechanical stress profile of pump skids, compressor packages, and rail-mounted control cabinets subject to continuous structural vibration. The optical ModuleBus connection is inherently immune to the electrical noise that destroys copper-based fieldbus links in high-vibration environments.

Thermal cycling endurance is validated across the full 0 °C to +55 °C operating range with storage down to -40 °C. Modules shipped to sites in northern Canada or Siberia have been stored unheated through winter and installed without issue — the wide storage temperature range is not a marketing claim, it is a tested specification.

Humidity performance at 95 % RH non-condensing covers tropical deployment in Southeast Asian petrochemical facilities and coastal installations where salt-laden humid air is a constant threat to electronics. The conformal coating applied to the DO801 PCB provides an additional barrier against moisture ingress beyond what the IP20 enclosure rating alone would suggest.

Every unit we dispatch undergoes a pre-shipment functional test: power-on self-test pass, all 8 output channels exercised under a resistive load, and optical ModuleBus communication verified against a live AC800M controller. We do not ship modules that have only been visually inspected.

Global Express Logistics

Our dispatch hub is located in Xiamen, Fujian Province — one of China’s primary export ports with direct DHL, FedEx, and UPS express lanes to major industrial hubs worldwide. Typical transit times from confirmed order to delivery:

• Europe (Germany, Netherlands, UK, Scandinavia): 3–5 business days via DHL Express Worldwide
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): 2–4 business days via FedEx International Priority
• Southeast Asia (Singapore, Malaysia, Thailand, Indonesia): 2–3 business days via DHL or FedEx
• North America (USA, Canada): 4–6 business days via FedEx International Priority
• Australia & New Zealand: 4–5 business days via DHL Express
• South America (Brazil, Chile, Colombia): 5–8 business days via FedEx or DHL

All shipments include full export documentation: commercial invoice, packing list, and certificate of origin. For projects requiring ATA Carnet, CITES exemption letters, or specific customs commodity codes (HS 8537.10 for programmable controllers and associated I/O modules), our logistics team prepares the paperwork before the shipment leaves the warehouse — not after customs queries it at the destination port.

ESD-safe packaging is standard: anti-static bag, foam-lined rigid carton, and fragile/electronic handling labels on all outer packaging. For air freight, we comply with IATA dangerous goods regulations where applicable and provide the shipper’s declaration if required by the carrier.

Tracking numbers are issued within 2 hours of dispatch. For urgent shipments, we provide the AWB number directly via WhatsApp so your logistics team can monitor the consignment in real time without waiting for an email.
