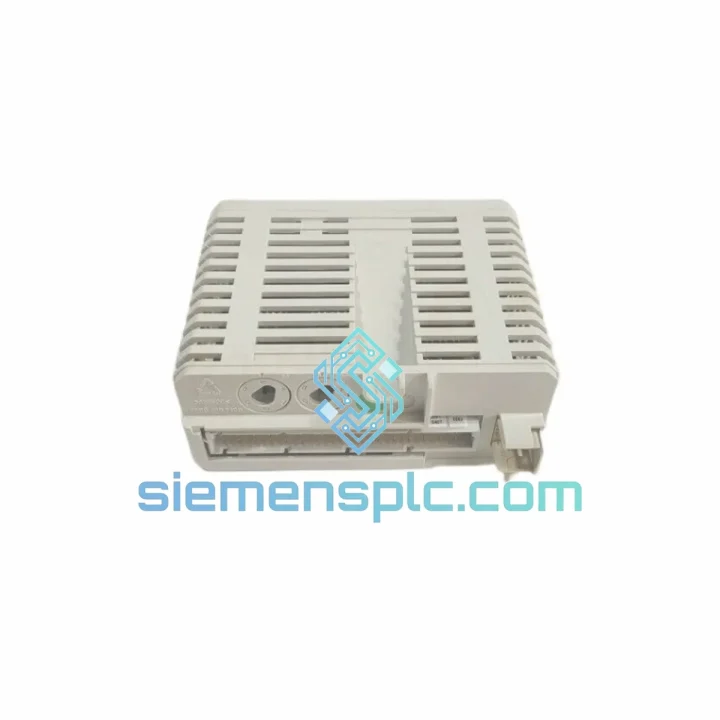

ABB DO810 3BSE008510R1 Digital Output Module

ABB DO810 3BSE008510R1 – Stop the Bleeding: Every Hour of Downtime Costs You More Than This Module

Your AC 800M system is down. The DO810 is the culprit. You’ve already lost production time and your maintenance window is closing fast. This page exists for one reason: to get a verified, ready-to-ship ABB DO810 3BSE008510R1 into your hands before the next shift starts.

We stock this module in Xiamen. It ships today via DHL Express or FedEx International Priority. No waiting on distributor lead times. No back-order excuses. If you’re reading this at 2 AM during an emergency shutdown, send the email below — someone responds.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The DO810 fails in predictable ways. Here’s what ten years of field calls have taught me about this module:

Fault Code 0x4210 – Channel Output Overload: One or more channels is drawing beyond 0.5 A. Before swapping the module, check your field wiring for a shorted solenoid or stuck contactor coil. Replacing the DO810 into a shorted load will kill the new module within minutes. Measure load impedance at the terminal block first. Anything below 48 Ω at 24 VDC is suspect.

Fault Code 0x4220 – ModuleBus Communication Loss: This is almost never the DO810 itself. Check the optical fiber connectors on both the DO810 and the TB820V2 bus extender. Dust contamination on the optical port is the #1 cause. Clean with IPA and a lint-free swab. If the fault persists after cleaning, swap the fiber jumper before condemning the module.

Self-Addressing After Replacement: The S800 I/O system uses automatic module addressing via the ModuleBus. When you seat the new DO810, the AC 800M controller will auto-detect it within one scan cycle — no DIP switch configuration required on this module. However, confirm the module position number in Control Builder M matches the physical slot. A mismatch causes a configuration mismatch alarm (0x4100) that looks like a hardware fault but is purely a software issue.

Firmware Compatibility: DO810 hardware revision R1 (3BSE008510R1) is compatible with AC 800M firmware 5.0 and above. If your controller is running firmware below 5.0, the module will enumerate but channel diagnostics may not report correctly. Check the PM8xx firmware version in Control Builder M under Controller Properties before installation.

Hot-Swap Procedure: The DO810 supports hot-swap within the S800 I/O system. Inhibit the affected I/O group in Control Builder M before extraction to prevent spurious output pulses during removal. Failure to inhibit can trigger downstream actuators — a serious safety risk in valve or motor starter applications. Seat the replacement module firmly until the locking tab clicks. Re-enable the I/O group and verify all 8 channel status LEDs cycle green within 10 seconds.

Common Misdiagnosis: A failed SD821/SD822 24 VDC field power supply will present as a DO810 failure — all channels show no output. Always verify field supply voltage at the terminal block before pulling the module. This saves you a replacement cycle and two hours of downtime.

Reliability in Harsh Conditions

The DO810 was designed for process industries where the environment is actively hostile. Pulp mills, offshore platforms, chemical plants — these are not climate-controlled server rooms. ABB engineered the S800 I/O series to operate continuously in conditions that would kill consumer-grade electronics.

The optical ModuleBus interface is the key differentiator. By transmitting I/O data over fiber rather than copper, the DO810 is inherently immune to the ground loops and common-mode noise that plague conventional backplane-connected modules. In a steel mill or arc furnace environment where EMI levels routinely exceed 10 V/m, this matters enormously.

Galvanic isolation between the field terminals and the system bus means a field-side wiring fault — a shorted solenoid, a lightning strike on a long cable run, a ground fault in a wet environment — cannot propagate back into the controller. The DO810 absorbs the hit. The AC 800M keeps running.

Solid-state transistor outputs eliminate the mechanical wear that kills relay output modules in high-cycle applications. A DO810 driving a pneumatic valve that cycles 200 times per shift will outlast a relay module by an order of magnitude. The absence of moving parts also means no contact bounce, no arcing, and no RF interference generated at the output stage.

Operating range of 0–55 °C covers the vast majority of industrial cabinet installations. For applications approaching the upper limit — outdoor cabinets in tropical climates, for example — verify cabinet thermal management is adequate. The DO810 does not throttle or derate; it operates at full specification until the thermal limit is exceeded, at which point it shuts down cleanly and logs a diagnostic event rather than failing silently.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes. This is not a drop-ship arrangement. The module you order is physically in our facility, inspected, and ready for same-day or next-business-day dispatch.

Standard Emergency Shipment Flow:

Order confirmed before 14:00 CST → picked, packed, and handed to DHL or FedEx same day → tracking number issued within 2 hours of dispatch → estimated transit times: Southeast Asia 1–2 days, Europe 3–4 days, North America 4–5 days, Middle East 3–5 days, Australia 3–4 days.

All shipments include a commercial invoice, packing list, and certificate of origin. For customers requiring an MSDS or material declaration for customs clearance, request it at the time of order. We classify DO810 3BSE008510R1 under HS Code 8537.10 — standard industrial control module, no export license required for most destinations.

For bulk orders (5+ units), sea freight consolidation from Xiamen Port is available with typical transit of 18–25 days to European ports and 20–28 days to US East Coast. Contact us for FCL/LCL pricing and Incoterms options (EXW, FOB, CIF, DAP).

We have shipped to over 80 countries. If your destination requires specific documentation — EUR.1 movement certificate, FORM A GSP certificate, or a specific customs declaration format — tell us at order time and we will prepare it before dispatch.
