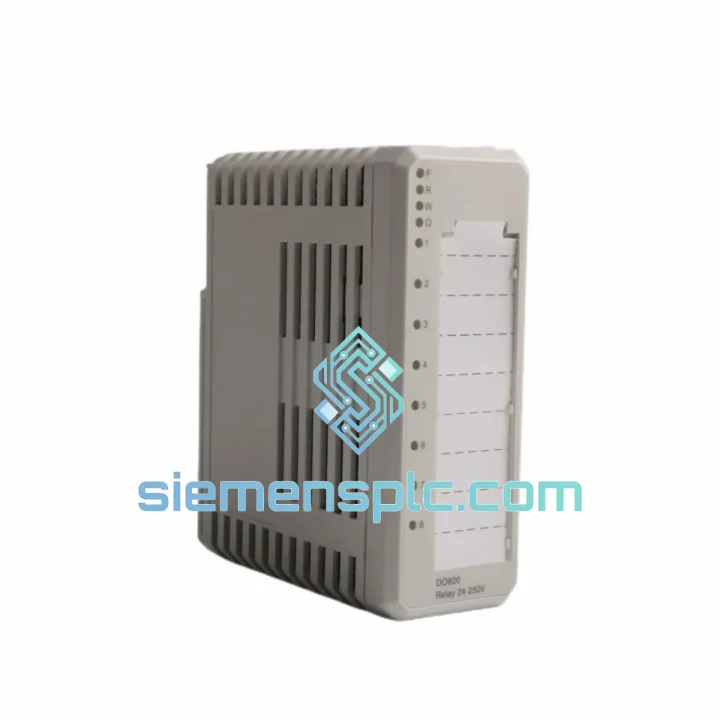

ABB DO820 3BSE008514R1 Digital Output Module

ABB DO820 3BSE008514R1 — Every Minute of Downtime Costs You. We Ship Today.

Your relay output card just failed. The AC800M is throwing a module fault. The process is down. You’ve already called your local distributor — lead time is 6 weeks. That’s not an option. We stock the ABB DO820 3BSE008514R1 in Xiamen, China, and we move fast. DHL Express to your door in 3–5 business days, anywhere on the planet. While your team is still diagnosing the fault, we’re already pulling the unit off the shelf.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common fault codes you’re probably staring at right now:

• “Module Missing” / “I/O Communication Fault” — The AC800M has lost contact with the DO820 over the S800 optical bus. First check the MTU seating and the fiber connection between the MTU and the I/O station. If the fiber is intact and the MTU LED is green, the DO820 itself has failed — swap the module.
• “Channel Fuse Blown” alarm in CBM — One or more field-side fuses have opened. This is almost always caused by a shorted field device or a wiring fault, not the module itself. Before inserting a new DO820, measure continuity on the affected channel’s field wiring. Replace the fuse (accessible on the TB820 terminal base) and re-test. If the fuse blows again immediately, the fault is in the field — not the card.
• “Output Discrepancy” / contact state mismatch — The controller commanded the relay to close, but the feedback signal disagrees. Check the field device’s auxiliary contact wiring back to the DI card. If the relay is clicking but the field device isn’t responding, the issue is downstream of the DO820.
• Intermittent channel faults after vibration events — Relay contact bounce or micro-welding on high-inrush loads. Verify the load current does not exceed 2 A resistive; add a snubber circuit (RC network) across inductive loads to suppress back-EMF.

Replacement procedure — what to check before you plug in the new card:

1. Power down the S800 I/O station or confirm hot-swap capability with your AC800M firmware version. Older firmware revisions (below 5.1) do not support hot-swap on relay output modules — check ABB TechNote 3BSE041434 before pulling the card live.
2. Photograph the TB820 terminal wiring before disconnecting anything. The DO820 uses a shared common-return architecture — incorrect re-termination will cause multiple channels to fail simultaneously.
3. Inspect the TB820 terminal base for burn marks, carbon tracking, or corroded screw terminals. A failed DO820 caused by a field fault will often damage the terminal base too. If the base is compromised, replace it before inserting the new module.
4. Seat the new DO820 firmly until the locking tab clicks. The S800 optical bus connector is friction-fit — a partially seated module will show as “Module Missing” in CBM even though it appears physically installed.
5. In CBM, navigate to the I/O hardware tree, right-click the DO820 node, and select “Reset Module” to clear any latched fault state. The module should come online within one scan cycle (typically <100 ms).
6. Force each of the 16 output channels ON/OFF from the CBM I/O test panel and verify field-side continuity with a multimeter before returning the loop to automatic control.

Configuration notes specific to DO820:

• The DO820 is auto-addressed by the S800 I/O station — no DIP switches, no rotary address selectors. Slot position determines the module address. If you’re replacing a card in slot 4, the new DO820 inherits slot 4’s address automatically.
• Firmware matching is not required for the DO820 itself — the module carries no user-programmable firmware. However, the AC800M controller firmware must be ≥ 4.0 to support the DO820’s extended diagnostic reporting. Older controllers will still drive the outputs but will not report channel-level fuse status.
• If migrating from a DO810 (transistor output) to DO820 (relay output) in the same slot, update the I/O type in CBM before downloading. The hardware tree will flag a “Module Type Mismatch” if the configuration does not match the physical card.

Reliability in Harsh Conditions

The DO820 was not designed for a climate-controlled server room. It was built for the environments where things actually break — offshore platforms with salt-laden air, steel-mill control rooms with 50 °C ambient, chemical plants where humidity swings from 20 % to 95 % RH between seasons.

The relay contact mechanism is rated for a minimum of 100,000 mechanical operations per channel under rated load. The coil driver circuitry is conformal-coated to resist moisture ingress and corrosive atmospheres. The module housing is designed to IEC 60068-2 vibration and shock profiles — it will survive the mechanical stress of a pump-room installation where the cabinet itself vibrates at 50 Hz.

Galvanic isolation between the S800 bus side and the field side is rated to withstand 1,500 V AC for 1 minute — this is not a marketing claim, it’s a type-test requirement in the ABB S800 I/O product standard. In practice, this means the DO820 will continue operating correctly even when field wiring picks up significant common-mode noise from adjacent VFD cables or high-voltage bus bars.

Individual channel fusing means a single field fault — a shorted solenoid, a wiring insulation failure — takes out one channel, not the entire card. The remaining 15 channels keep running. In a refinery ESD application, that distinction between a nuisance trip and a full process shutdown is worth more than the cost of the module itself.

Every unit we ship has been through incoming inspection: visual check of the housing, connector pins, and label authenticity; functional power-on verification; and ESD-safe packaging in anti-static bags inside foam-lined cartons. We do not ship modules that have been opened, repaired, or re-labeled.

Global Express Logistics

Our warehouse is in Xiamen, China — one of the country’s primary export hubs, with direct DHL Express and FedEx International Priority pickup routes operating 6 days a week. Here’s what the timeline actually looks like:

• Order confirmed + payment received before 14:00 CST: Same-day dispatch. The unit leaves Xiamen that evening.
• DHL Express Worldwide: 2–4 business days to Europe, North America, Southeast Asia, and the Middle East. 3–5 business days to South America, Africa, and remote regions.
• FedEx International Priority: Available as an alternative for destinations where FedEx has a stronger network advantage (e.g., certain US states, Canada, Mexico).
• Documentation included as standard: Commercial invoice, packing list, certificate of origin, and HS code declaration (HS 8537.10 for programmable controller I/O modules). For regulated destinations requiring an end-user certificate or import license, contact us before ordering.
• Tracking: AWB number sent to your email within 2 hours of dispatch. Real-time tracking link provided. We monitor shipments proactively — if a customs hold occurs, we contact you immediately with the documentation needed to clear it.
• Packaging for air freight: Double-boxed. Inner carton is foam-lined and sealed. Outer carton is reinforced corrugated with fragile labeling. The DO820 will arrive in the same condition it left our shelf.

We’ve shipped to refineries in Saudi Arabia, automotive plants in Germany, water treatment facilities in Australia, and power stations in South Africa. The logistics process is the same every time — fast, documented, and tracked end-to-end.
