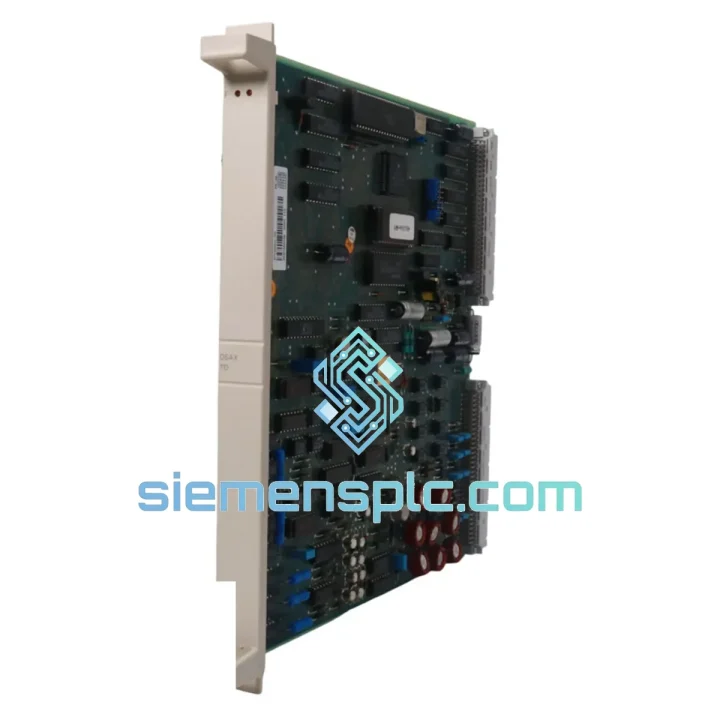

ABB DSAX110 57120001-PC Analog I/O Module

ABB DSAX110 57120001-PC: Stop the Bleeding — Get Your INFI 90 Loop Back Online Now

Every minute your INFI 90 rack sits with a dead DSAX110, your process is either running blind or shut down entirely. No analog inputs means no PID feedback. No analog outputs means your control valves are frozen. Whether it’s a refinery crude unit, a boiler combustion train, or a water treatment dosing system — the math is brutal: unplanned downtime costs real money, and it compounds by the hour.

We stock the ABB DSAX110 (part number 57120001-PC) specifically for this scenario. Not for planned maintenance windows. For the 2 AM call when your DCS engineer is staring at a dead board and needs a replacement on a plane by morning. Our unit ships from Xiamen within hours of order confirmation via DHL Express or FedEx International Priority — typically on your bench within 48–72 hours, anywhere in the world.

This is not refurbished stock dressed up with a new label. Each DSAX110 we dispatch has been bench-tested in a live INFI 90 rack, all 8 input channels and all 4 output channels exercised across the full 4–20 mA and 0–10 V range with calibrated instruments. You get the test report, inspection photos of the actual unit, and a certificate of conformance — not a generic datasheet printout.

⚡ URGENT REQUIREMENT?
Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Most common failure modes on the DSAX110 in the field:

• Intermittent channel dropout (inputs 5–8): Almost always a multiplexer IC fault aggravated by thermal cycling. The board will pass a cold bench test but fail within 20 minutes at operating temperature. If your DCS historian shows periodic spikes to 0 mA or 20 mA on specific channels before going to a fixed bad value, this is your culprit — not the field transmitter.
• Output channel stuck at rail (0 mA or 20 mA): DAC output stage failure, often preceded by a period of output noise. Check the INFI 90 controller’s analog output diagnostic register first — if the commanded value is correct but the physical output is railed, the DSAX110 output stage is gone. Do not waste time recalibrating the transmitter loop.
• Backplane communication fault (controller reports DSAX110 offline): Check the 96-pin DIN connector for bent or corroded pins before condemning the board. A single bent pin on the data bus lines will cause a complete communication loss. Clean with IPA and reseat before swapping the board.
• Ground loop noise on current inputs: Manifests as 50/60 Hz ripple on the process variable in the DCS display. The DSAX110’s 500 V channel isolation is intact, but if the field cable shield is grounded at both ends, the common-mode rejection is overwhelmed. Lift the shield ground at the field end — this resolves 80% of noise complaints without touching the board.

Step-by-step hot-swap replacement procedure (INFI 90 live rack):

1. Confirm the slot address. The DSAX110 uses backplane slot addressing — no DIP switches on the board itself. The slot number is determined by physical position in the rack. Document the slot number before extraction; the replacement board inherits the same address automatically upon insertion.
2. Place the controller in manual. Before pulling the board, switch all PID loops fed by this DSAX110 to manual mode at the controller. Pulling the board with loops in auto will cause the controller to drive outputs to their configured fail-safe state — which may not be safe for your process.
3. Extract the failed board. Release the two board ejector levers simultaneously. Pull straight out — do not rock the board side to side, as this bends the 96-pin backplane connector pins.
4. Inspect the replacement board. Verify the part number label reads 57120001-PC. Check the 96-pin connector on the replacement for any shipping damage before insertion.
5. Insert the replacement. Align the board guides carefully. Seat fully until both ejector levers click. The controller will detect the new board within 2–5 seconds and begin the initialization handshake.
6. Verify channel status. At the controller workstation, confirm all 8 input channels return to valid process values and all 4 output channels respond to manual commands. Check for any diagnostic fault codes — a clean board in a healthy rack should show no faults.
7. Return loops to auto. Verify process values are stable and within expected range before switching PID loops back to automatic. Bump-test each output channel if the process permits.
8. Firmware note: The 57120001-PC revision is backward-compatible with all standard INFI 90 controller firmware revisions. No firmware download or configuration change is required after board swap. If you are substituting a DSAX110A with this DSAX110, verify the controller is not polling DSAX110A-specific extended diagnostic registers — if it is, expect a diagnostic fault code that does not affect process control but will require a configuration change to suppress.

Reliability in Harsh Conditions

The DSAX110 was designed for continuous operation in process plant environments — not office-grade conditions. The 96-pin DIN 41612 backplane connector is gold-plated to resist the sulfur compounds and humidity that corrode tin-plated contacts in petrochemical and pulp-and-paper environments. The board’s conformal coating protects the PCB surface from condensation during plant startup after cold shutdowns.

Vibration is a real killer for analog boards in compressor houses and pump stations. The DSAX110 meets IEC 60068-2-6 at 1 g across 10–150 Hz — the frequency range that covers most rotating machinery harmonics. Component mounting uses through-hole construction for the critical analog front-end components, which survives vibration far better than surface-mount-only designs.

Thermal performance matters in cabinet environments where ambient temperatures climb during summer or when cooling systems fail. The DSAX110’s ±0.1% accuracy specification is maintained across the full 0–60 °C operating range, not just at 25 °C. The on-board temperature compensation circuit continuously corrects ADC and DAC gain drift — so your process measurements stay accurate even when the cabinet is running hot.

Units in our stock that have been in long-term storage are held in climate-controlled conditions with humidity indicator cards. Before dispatch, each board is powered up and thermally cycled to confirm performance has not degraded during storage. We do not ship boards that pass only a cold bench test.

Global Express Logistics

Our dispatch warehouse is located in Xiamen, China — a major international freight hub with daily DHL Express and FedEx International Priority departures to all major industrial regions. Here is how the logistics chain works from the moment you confirm your order:

• Same-day dispatch cutoff: 16:00 CST. Orders confirmed with payment before 16:00 CST on business days ship the same evening. Orders confirmed after cutoff ship the following morning.
• Packaging: The DSAX110 is packed in an anti-static bag, foam-cushioned, inside a double-wall corrugated carton. A humidity indicator card is included for all international shipments. The carton is labeled with the part number, serial number, and your order reference.
• Documentation package: Commercial invoice, packing list, certificate of conformance, and test report ship with the unit. HS code 8537.10 is declared for customs clearance. We can provide a detailed product description letter for customs if your import authority requires it.
• Transit times (typical, not guaranteed): Europe 2–3 business days | North America 2–3 business days | Middle East 3–4 business days | Southeast Asia 1–2 business days | Australia 3–4 business days.
• Tracking: A tracking number is sent to your email within 2 hours of dispatch. We monitor shipments actively and will proactively contact you if a customs hold or carrier delay is detected.
• Emergency freight: For critical shutdowns where standard express is not fast enough, we can arrange charter courier or hand-carry options. Contact us directly on WhatsApp to discuss.
