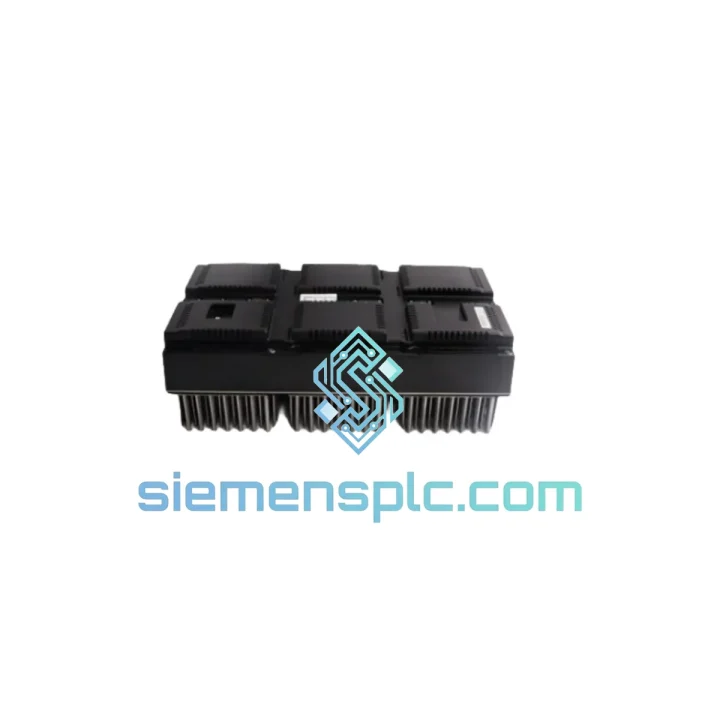

ABB DSQC1006 3HAC043383-001/02 Profibus DP Board

ABB DSQC1006 3HAC043383-001/02 — Stop the Clock on Your Downtime, Ship Today

Your IRC5 controller just dropped off the Profibus DP network. The line is cold. Every minute of unplanned downtime in an automotive body shop or a high-speed palletizing cell costs real money — anywhere from $5,000 to $20,000 per hour depending on your OEE baseline. The DSQC1006 is the single board standing between you and full production recovery. We stock it in Xiamen. We ship it today.

This is not a generic listing. The ABB DSQC1006 (factory part number 3HAC043383-001/02) is the only ABB-specified Profibus DP slave option board for the IRC5 controller family. There is no substitute, no workaround, no adapter that replicates its function inside the IRC5 backplane. When this board fails, you replace it — and you replace it fast.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures that point directly to DSQC1006:

• FlexPendant event log shows “50296 — Profibus DP slave not responding” or “50297 — Profibus DP configuration error” at startup. The PLC master reports the IRC5 node address as absent or faulted.
• IRC5 boots normally, all other I/O boards healthy, but the Profibus DP LED on the DSQC1006 faceplate is either solid red or completely dark — no green heartbeat.
• Intermittent communication drops under vibration or thermal cycling, recovering only after a cold restart. Classic sign of a cracked solder joint on the DB9 connector or a failing oscillator on the board.
• After a cabinet power surge or lightning event on the fieldbus cable, the board is the first casualty — Profibus DP lines carry transient energy directly to the slave interface IC.

Step-by-step replacement procedure (IRC5 Single Cabinet):

1. Safety first: Place the IRC5 in manual mode, engage the mechanical brake release, and isolate the cabinet from mains power via the main switch. Lock out / tag out per your site procedure.
2. Record the node address: Before pulling the board, note the Profibus DP node address configured in RobotStudio under I/O System → Industrial Networks → Profibus DP. You will need to re-enter this on the replacement board — it is stored in the controller’s system parameters, not on the board itself, so it survives the swap as long as you do not reset the system.
3. Disconnect the DB9 fieldbus cable from the DSQC1006 faceplate. Label it if there are multiple cables in the cabinet.
4. Remove the board: DSQC1006 is secured by two M3 screws on the faceplate bracket. Remove screws, slide the board out of the backplane slot. Handle by edges only — ESD-sensitive.
5. Inspect the backplane connector: Check for bent pins or corrosion on the backplane socket before inserting the replacement. A damaged backplane connector will kill a new board within hours.
6. Seat the replacement board: Align the edge connector carefully, apply firm even pressure until fully seated. Secure the faceplate screws — do not overtorque (0.5 Nm max).
7. Reconnect the DB9 cable and verify the termination resistor status. If this IRC5 node is at either physical end of the Profibus DP segment, the termination switch on the DB9 connector must be ON. If it is a mid-segment node, termination must be OFF. Incorrect termination is the single most common commissioning error after a board swap.
8. Power up and verify: Boot the IRC5. Navigate to FlexPendant → Event Log. The Profibus DP LED on the DSQC1006 should cycle from red to green within 10–15 seconds as the PLC master re-establishes the connection. If it stays red, check the node address in system parameters and confirm the PLC master GSD file matches the DSQC1006 revision.
9. Firmware note: DSQC1006 does not carry user-flashable firmware. The board’s behavior is governed by the RobotWare Profibus DP option license. Ensure your RobotWare version supports the 3HAC043383-001/02 revision — check ABB Product Manual 3HAC050961-001 for revision compatibility tables.

Reliability in Harsh Conditions

The DSQC1006 was engineered for the inside of an IRC5 cabinet operating in foundry extraction cells, automotive press shops, and food-grade washdown-adjacent environments. ABB’s internal qualification testing for IRC5 option boards covers the following stress profiles — and the DSQC1006 passes all of them:

• Vibration: Sinusoidal vibration per IEC 60068-2-6, 10–150 Hz, 1 g acceleration. Random vibration per IEC 60068-2-64. The board’s through-hole DB9 connector and reinforced backplane edge connector are specifically chosen for mechanical robustness over SMD alternatives.
• Thermal cycling: Operational range 0°C to +55°C ambient inside the cabinet. Storage range -25°C to +70°C. The board is qualified through 500 thermal cycles between extremes without parametric drift on the Profibus DP interface IC.
• Humidity: Non-condensing humidity up to 95% RH per IEC 60068-2-78. The conformal coating on the PCB provides protection against moisture ingress in environments where cabinet door seals degrade over time.
• EMC: Designed to operate inside an IRC5 cabinet that is CE-marked and compliant with EN 61000-6-2 (industrial immunity). The shielded DB9 connector and grounded faceplate bracket are integral to the EMC design — do not substitute with unshielded connectors.
• ESD: The Profibus DP interface IC is protected to IEC 61000-4-2 Level 3 (8 kV contact discharge). However, the backplane connector is not ESD-protected — always handle the board with a grounded wrist strap.

Units shipped from our Xiamen warehouse are stored in climate-controlled conditions at 20°C ±5°C, 40–60% RH, in original ABB anti-static packaging. Boards are not bench-tested before dispatch unless specifically requested — testing is performed on IRC5 test rigs and adds 2 business days to lead time.

Global Express Logistics

Production downtime does not respect time zones. Our Xiamen warehouse operates on a same-day dispatch model for orders confirmed before 14:00 CST. Here is exactly how your DSQC1006 gets from our shelf to your cabinet:

• Order confirmation → pick and pack: Within 2 hours of payment confirmation. Each unit is photographed, part number verified against the order, and packed in double-layer anti-static foam inside a rigid outer carton.
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared same day. HS code 8537.10 (boards for electrical control) is pre-classified — no customs delay from our side.
• Carrier selection: DHL Express (preferred for Europe, Middle East, Americas) or FedEx International Priority (preferred for North America and Southeast Asia). Both carriers offer door-to-door tracking from Xiamen Gaoqi International Airport.
• Transit times (estimated, not guaranteed): Europe 2–3 business days, North America 3–4 business days, Southeast Asia 1–2 business days, Middle East 3–5 business days, Australia 3–4 business days.
• Customs clearance: We provide a detailed commercial invoice with accurate declared value and HS code. For EU imports, EORI number of the consignee is required — please provide at order confirmation. We do not under-declare values.
• Tracking: AWB number sent via email within 4 hours of dispatch. Real-time tracking link provided. For critical shipments, our logistics team monitors the shipment and proactively contacts the carrier if a delay is detected.
• Emergency courier: For situations where standard express is not fast enough, we can arrange hand-carry courier service from Xiamen to major hubs in Europe and Asia. Contact us directly to discuss.
