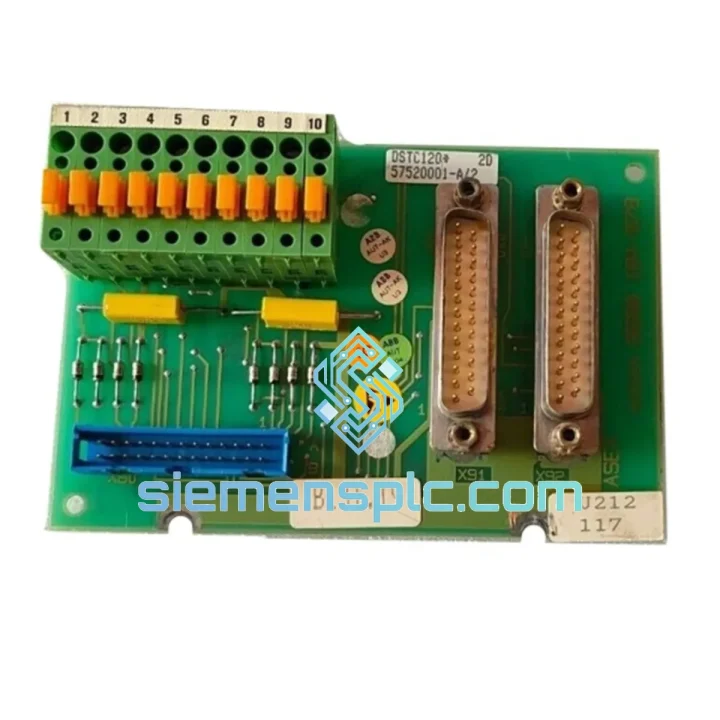

ABB DSTC120 57520001-A Communication Connection Unit

ABB DSTC120 57520001-A: Stop the Clock on Your Downtime — Ship Today from Xiamen

Your INFI-NET segment just dropped. The operator screen is frozen. Production is bleeding money by the minute. You’ve already pulled the DSTC120 and confirmed it’s dead — no token activity, no LED heartbeat, POST failure on power-up. You don’t have time for a 6-week OEM lead time. You need a verified unit on a plane today.

We stock the ABB DSTC120 (P/N 57520001-A) — the Communication Connection Unit that keeps your INFI 90 DCS talking. Every unit we ship has been bench-tested, POST-verified, and packed ESD-safe. DHL Express from Xiamen means most destinations in Asia, Europe, and the Americas receive within 3–5 business days. No excuses. No delays.

⚡ URGENT REQUIREMENT? Contact us now:
📧 [email protected] | 📱 WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for the DSTC120:

• No token activity on INFI-NET segment: The DSTC120 manages token passing. A dead unit causes the entire segment to go silent. Check the network manager console for “Node Not Responding” or “Token Lost” alarms before condemning the unit — rule out coax/fiber cable faults first.
• POST failure (red fault LED on power-up): Internal RAM or EPROM corruption. Not recoverable in the field. Replace the module.
• Intermittent communication dropouts: Often caused by backplane connector oxidation or a partially failed oscillator on the DSTC120. Reseat the card first; if dropouts persist under load, swap the module.
• Network manager reports “Duplicate Node Address”: The replacement DSTC120 must be configured to the same node address as the failed unit. Check the rotary address switches (SW1/SW2) on the module face — these set the node ID in BCD format. Match them exactly to the removed unit before insertion.

Step-by-step hot-swap replacement procedure:

1. Notify the control room operator — expect a brief communication interruption on the affected INFI-NET segment.
2. Verify the node address on the failed DSTC120 (SW1/SW2 rotary switches). Record the setting before removal.
3. Confirm the replacement unit’s firmware revision label matches or is compatible with your network manager version. INFI-NET network managers are revision-sensitive — a major firmware mismatch can cause node rejection.
4. Set the rotary address switches on the replacement DSTC120 to match the recorded node address. Do this before insertion.
5. With the card cage powered (hot-swap is supported in INFI 90 — verify your site SOP), slide the failed module out and insert the replacement in a single smooth motion. Avoid partial seating.
6. Observe the LED sequence: the DSTC120 should cycle through POST (amber), then transition to green (network active) within 30–60 seconds as it acquires the token.
7. Confirm node status in the network manager console. All downstream I/O should resume normal scan cycle.
8. Log the replacement in your maintenance record with the firmware revision and node address for future reference.

Key configuration notes: The DSTC120 does not support automatic self-addressing — the node ID is hardware-set via rotary switches, not software-configured. There is no DIP switch for baud rate; INFI-NET operates at a fixed 1 Mbit/s. If your system uses redundant INFI-NET rings, ensure the replacement unit’s ring port (A/B) jumper matches the original.

Reliability in Harsh Conditions

The DSTC120 was engineered for continuous 24/7 operation in environments that would kill consumer-grade electronics. ABB designed the INFI 90 platform for power stations, refineries, and chemical plants — places where ambient temperatures swing, humidity condenses on cold mornings, and VFDs inject noise into every cable run.

The module’s backplane interface uses optically isolated signal paths to block ground loops and common-mode noise from propagating into the network logic. The INFI-NET coaxial interface is shielded end-to-end, and the onboard oscillator is temperature-compensated to maintain timing accuracy across the full 0–60 °C operating range. Vibration resistance meets IEC 68-2-6 test profiles — the card cage locking mechanism and edge connector design prevent intermittent contact even in environments with continuous mechanical vibration from pumps and compressors.

Units we ship from our Xiamen stock are sourced from decommissioned OEM installations — meaning they’ve already survived years of industrial service. Each unit is inspected for connector pin integrity, PCB corrosion, and component damage before dispatch. We do not ship cosmetically damaged units regardless of functional status.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of China’s primary export ports with direct DHL and FedEx gateway access. Here’s how your order moves:

• Order confirmed before 14:00 CST: Same-day dispatch in most cases.
• DHL Express Worldwide: Southeast Asia 1–2 days, Europe 3–4 days, Americas 4–5 days, Middle East 3–4 days.
• FedEx International Priority: Available as an alternative for destinations with stronger FedEx coverage (e.g., US, Canada, Mexico).
• Export documentation: Commercial invoice, packing list, and HS code declaration prepared same day. We handle EAR99 classification — no export license required for this module.
• Customs clearance: We declare accurate commercial value. For destinations with import duty concerns, contact us — we can advise on HS code classification for your customs broker.
• Tracking: AWB number sent via email and WhatsApp within 2 hours of dispatch. Real-time tracking link included.
• Emergency freight: For genuine production-down situations, contact us directly on WhatsApp for same-day courier booking and priority handling.
