ABB DTCA717A 61430001-WH Drive Control Board – ACS800 Series

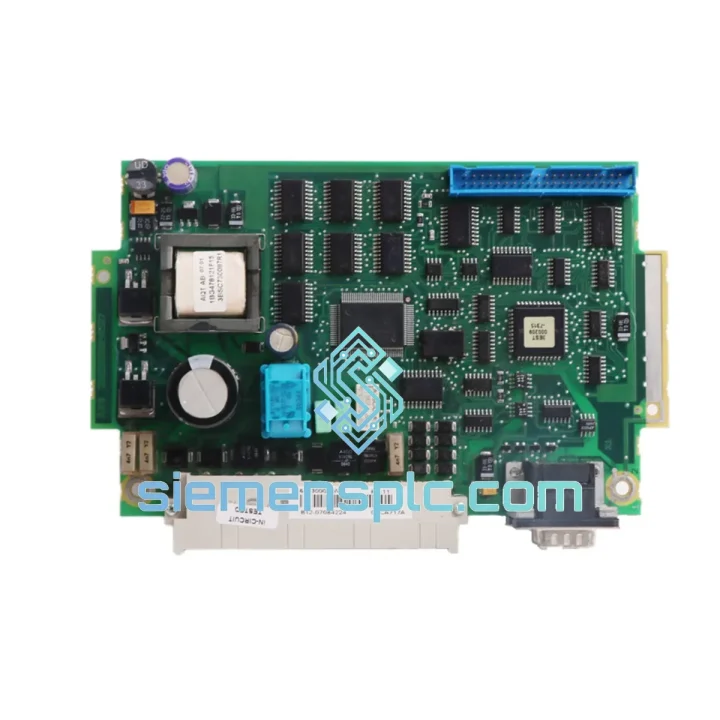

ABB DTCA717A 61430001-WH — DSP-Based Main Control Board for ACS800 Variable Frequency Drive Systems

The DTCA717A, referenced under ABB factory part number 61430001-WH, is the primary computational board within the ACS800 series variable frequency drive platform. It occupies the central position in the drive’s signal hierarchy: all motor state estimation, IGBT gate sequencing, encoder feedback processing, and fieldbus arbitration pass through this single board. In practical terms, the DTCA717A is the board that executes ABB’s proprietary Direct Torque Control (DTC) algorithm — a real-time torque and flux estimation method that operates without a shaft encoder in the majority of industrial deployments.

The ACS800 platform spans frame sizes from R2 (2.2 kW) through R8 (2.8 MW), and the DTCA717A is the common control board across this entire power range. Whether the drive is controlling a 37 kW centrifugal pump in a water treatment facility or a 1.5 MW compressor in a petrochemical plant, the DTCA717A performs the same function: it reads stator current and voltage vectors from the measurement circuits, computes instantaneous torque and flux estimates, and issues gate firing commands to the IGBT power module at a 40 μs cycle time. This deterministic loop rate — 25,000 control iterations per second — is the foundation of the ACS800’s torque step response specification of under 5 ms.

The board interfaces with the ACS800 backplane through a proprietary high-speed bus that connects to the AINT auxiliary interface board, the RMIO motor control I/O board, and the RDCO fieldbus communication adapter. Each of these peripheral boards is subordinate to the DTCA717A’s DSP processor, which manages task scheduling across hard real-time (torque control), soft real-time (parameter management), and background (diagnostics, fieldbus) execution domains. This partitioned architecture ensures that PROFIBUS-DP communication latency — which can vary with PLC scan cycle jitter — never propagates into the DTC control loop timing.

The DTCA717A stores all drive parameters, motor model data, and fault history in on-board non-volatile flash memory. Following a board replacement, parameter restoration is performed via the drive’s control panel or ABB’s DriveWindow PC tool. No motor re-identification is required if the motor ID run data was previously backed up, which significantly reduces commissioning time in MRO scenarios.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DTCA717A operates in one of the most electrically hostile environments in industrial electronics: inside a high-power variable frequency drive, where the board’s own gate firing commands generate conducted and radiated EMI with dV/dt transients exceeding 5 kV/μs on the DC bus and carrier frequencies between 2 kHz and 16 kHz. The board’s hardware architecture addresses this constraint through several distinct design layers.

Galvanic Isolation Between DSP and Gate Driver Domains: The DTCA717A separates its low-voltage DSP signal domain from the gate driver output paths using optocoupler-based galvanic isolation barriers. These optocouplers maintain propagation delays under 1 μs, preserving the timing precision of IGBT firing commands while eliminating ground loop interference between the control board’s reference potential and the drive’s power ground. This isolation is not a single-point measure — it is applied at every signal crossing between the control domain and the power domain, including current feedback, voltage measurement, and temperature sensor inputs.

Differential Signal Conditioning for DTC Inputs: The stator current and voltage feedback signals that feed the DTC flux estimator are conditioned through differential amplifier circuits with common-mode rejection ratios (CMRR) exceeding 80 dB. This suppresses the switching noise that would otherwise corrupt the flux estimation calculation. The DTC algorithm’s accuracy is directly dependent on the signal integrity of these inputs — a 1% error in the current measurement translates to a proportional error in the torque estimate, which in tension-controlled winding applications can cause web breaks or product defects.

Hardware-Level Overcurrent and Overvoltage Protection: Independent of the DSP, the DTCA717A implements analog comparator circuits that monitor DC bus voltage and phase current in real time. If either parameter exceeds the programmed hardware trip threshold, the gate enable signals are suppressed within 2–5 μs — a response time that is physically impossible to achieve through software interrupt handling. This hardware latch operates even if the DSP is in a fault state or executing a long instruction cycle, providing a second layer of IGBT protection that does not depend on firmware correctness.

Partitioned Processor Time Management: The DSP firmware on the DTCA717A divides processor execution time into three non-overlapping domains: a hard real-time interrupt (40 μs period, DTC torque and flux loop), a soft real-time task (parameter read/write, panel communication), and a background task (fault logging, fieldbus data exchange). The hard real-time interrupt has absolute priority and cannot be preempted. This architecture guarantees that the DTC loop executes at exactly 40 μs regardless of fieldbus traffic volume or panel communication activity.

Conformal Coating and Environmental Hardening: The PCB is conformally coated to IPC-CC-830 standard, providing resistance to humidity, condensation, and airborne particulates encountered in paper mills, cement plants, food processing facilities, and coastal marine installations. Component placement follows thermal management principles: high-dissipation regulators are positioned in the primary airflow path from the drive’s internal cooling fan, and thermal vias beneath power components conduct heat to the ground plane copper pour, reducing junction temperatures and extending component service life.

System Integration Benefits

• Encoder-Free Torque Control: The DTC algorithm computes motor shaft torque and flux from stator electrical measurements alone, achieving torque step response under 5 ms without a shaft encoder. This eliminates encoder cabling, encoder power supplies, and encoder failure modes in applications where shaft access is restricted or hazardous.
• Sensorless Speed Regulation: Speed estimation accuracy of ±0.1% of nominal speed in sensorless mode reduces instrumentation requirements in pump, fan, and compressor applications where speed feedback encoders add cost and maintenance burden without proportional process benefit.
• Non-Volatile Parameter Storage: All drive parameters and motor model data are stored in on-board flash memory. Board replacement does not require motor re-identification if parameter backup exists, reducing planned maintenance downtime from hours to minutes in multi-drive installations.
• Fault History Retrieval Without Board Removal: The DTCA717A logs fault codes, warning events, and operating hour counters in non-volatile memory accessible via the drive panel or fieldbus. Maintenance engineers can retrieve complete fault histories remotely, enabling root cause analysis without physical access to the drive cabinet.
• Fieldbus Isolation from Control Loop: PROFIBUS-DP and other fieldbus protocols are handled by the RDCO co-processor, which communicates with the DTCA717A through a defined data exchange interface. PLC scan cycle jitter and fieldbus communication delays are absorbed at the RDCO level and do not affect the 40 μs DTC interrupt timing.
• Supply Rail Self-Monitoring: The board continuously monitors its own +5 V, +15 V, and −15 V supply rails. A hardware fault signal is generated if any rail deviates beyond ±5% of nominal, preventing undefined DSP behavior from propagating into gate driver outputs — a failure mode that can destroy IGBT modules in unprotected designs.
• Controlled Restart Sequencing: The board’s initialization firmware includes a controlled ramp-up of gate driver enable signals following power restoration or board replacement. This prevents inrush current transients during drive restart in applications where the motor load cannot be mechanically disconnected during maintenance windows.
• Universal Motor Compatibility: The DTC motor identification routine adapts the flux model to the specific induction motor connected to the drive, eliminating the need for motor-specific firmware variants. A single DTCA717A board can be commissioned with any standard induction motor within the drive’s power rating range without hardware modification.

Quality Assurance & Global Logistics

Every DTCA717A unit supplied through siemensplc.com is sourced as ABB factory-original stock, traceable to ABB’s part number and revision documentation. Pre-shipment inspection covers PCB physical integrity, component condition, connector pin alignment, conformal coating continuity, and revision marking verification. Where bench test equipment is available, boards are functionally verified against known-good ACS800 reference drive units prior to dispatch.

Packaging follows ESD-safe handling protocols throughout: boards are sealed in anti-static poly bags with desiccant, placed in foam-lined rigid cartons, and labeled with part number, revision level, and inspection date. International shipments are double-boxed with shock-absorbing fill material rated for air freight mechanical stress levels per ISTA 2A test standards.

Logistics operations are based in Xiamen, China, with direct access to DHL Express, FedEx International Priority, UPS Worldwide Express, and TNT Economy Express networks. Indicative transit times from Xiamen: Western Europe 3–5 business days, North America 4–6 business days, Southeast Asia 1–3 business days, Middle East and South Asia 4–5 business days. Full export documentation is prepared for every international shipment: commercial invoice, packing list, certificate of origin, and HS code declaration (HS 8537.10). Expedited customs clearance support is available for urgent MRO and production-critical requirements.

All units are covered by a 12-month warranty from the date of shipment. Warranty claims are acknowledged within 1 business day. Defective units confirmed under warranty are replaced or credited. No-fault-found returns are accepted within 30 days of delivery with original packaging.
