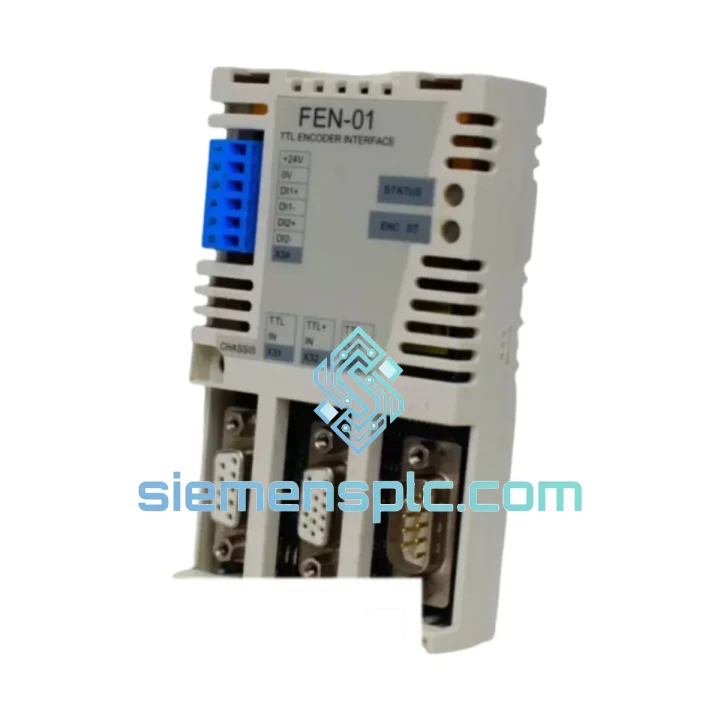

ABB FEN-01 Encoder Interface Module

ABB FEN-01 Encoder Interface Module – Stop the Clock on Your Downtime

Every minute your ACS800 or ACS880 drive sits in open-loop fault is money walking out the door. A failed FEN-01 encoder interface is one of the most common causes of speed-feedback loss on ABB drives — and it is also one of the fastest fixes when you have the right part on hand. We stock FEN-01 in Xiamen and ship same business day. While your procurement team is still raising a PO, your replacement module is already moving.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault codes that point to FEN-01 failure:

• FF52 / FF53 – Encoder cable fault: Check wiring first. If cable continuity is confirmed and the fault persists after a power cycle, the FEN-01 receiver circuit is likely damaged — replace the module.
• FF54 – Encoder signal loss: Triggered when the drive loses encoder pulses mid-run. Common cause: FEN-01 input stage failure from voltage transients on long cable runs. Install a ferrite core on the encoder cable and replace the module.
• 7081 – Speed feedback fault (ACS880): If the motor runs but speed reference tracking is erratic, verify encoder PPR setting in parameter group 92 matches the physical encoder. If parameters are correct, swap FEN-01.
• A2B1 – Encoder interface communication loss: The drive cannot communicate with the FEN-01 over DDCS. Reseat the module in the option slot. If the alarm returns within seconds, the module DDCS transceiver has failed.

Step-by-step replacement procedure:

1. Safe isolation first. Open the main isolator, lock out / tag out, and wait the full DC bus discharge time stated on the drive door label — typically 5 minutes for ACS800, 3 minutes for ACS880.
2. Record parameter group 92 (ACS800) or 91–92 (ACS880) before removing the old module. Photograph the drive display or export via Drive Composer. You will need these values after the swap.
3. Remove the encoder cable connector from the FEN-01 before unseating the module. Do not pull the module out with the cable still attached — the connector pins are fragile.
4. Unseat the old FEN-01 by pressing the retention clip and sliding the module straight out of the option slot. Note the slot number (Slot 1 = leftmost on ACS800 control board).
5. Inspect the option slot connector on the control board for bent pins or debris before inserting the replacement.
6. Seat the new FEN-01 firmly until the retention clip clicks. A half-seated module will cause intermittent DDCS faults that are difficult to diagnose.
7. Reconnect the encoder cable. Verify shield termination — the cable shield must be grounded at the drive end only to avoid ground loops.
8. Power up and navigate to parameter 92.01 (Encoder 1 type) — confirm it reads the correct encoder type (TTL or HTL). The FEN-01 does not self-address; parameters must be set manually.
9. Run a low-speed jog and monitor actual speed feedback in the drive signal monitor. Confirm the feedback tracks the speed reference without oscillation before returning the drive to production.
10. Firmware note: FEN-01 firmware is embedded and not field-upgradeable. If the drive control board firmware is above version 7.x on ACS880, confirm FEN-01 hardware revision compatibility in ABB technical note 3AUA0000025963 Rev F or later.

HTL vs TTL selection: The FEN-01 auto-detects input voltage level — no DIP switch or jumper is required. However, parameter 92.01 must be set to match: select TTL for 5 V RS-422 encoders and HTL for 10–30 V push-pull encoders. Mismatched settings cause erratic pulse counting even when the hardware is functional.

Reliability in Harsh Conditions

The FEN-01 is built to ABB industrial-grade option module standard, validated for continuous operation in environments that would degrade consumer-grade electronics within weeks. The PCB uses conformal coating on signal traces to resist condensation and airborne contaminants common in paper mills, cement plants, and coastal installations. The module is rated for operating temperatures from -10 °C to +55 °C with no derating, and storage down to -40 °C — relevant when modules are kept as cold-store spares in unheated warehouses.

Vibration resistance meets IEC 60068-2-6 (sinusoidal, 10–150 Hz, 1 g) and IEC 60068-2-27 (shock, 15 g / 11 ms half-sine). In crane and hoist applications where the drive cabinet is mounted on the crane bridge and subject to constant mechanical shock, FEN-01 modules routinely outlast the encoder they are reading. The DDCS optical communication interface eliminates ground-loop susceptibility that plagues conventional RS-485 fieldbus connections in high-noise drive rooms.

Every unit we dispatch from Xiamen is inspected for physical integrity — connector condition, label authenticity, and PCB marking consistency against ABB factory reference samples. Units showing any sign of repackaging or remarking are rejected before they reach our shelf.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China primary export hubs with direct DHL and FedEx gateway access. For urgent replacement orders, this matters: your module clears Chinese customs faster from Xiamen than from inland distribution centers.

• Same-day dispatch: Orders confirmed and paid before 15:00 CST ship the same business day.
• DHL Express Worldwide: Southeast Asia 1–2 days, Europe 3–4 days, Americas 3–5 days, Middle East 2–3 days.
• FedEx International Priority: Available as an alternative carrier for destinations where FedEx has stronger last-mile coverage.
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared at no extra charge. HS code 8537.10 declared. EXW, FOB, and CIF Incoterms available for B2B purchase orders.
• Tracking: AWB number sent via email within 2 hours of dispatch. Real-time tracking link included.
• Emergency freight: For critical plant shutdowns requiring next-flight-out courier, contact us directly on WhatsApp for a dedicated quote — we have handled same-day airport-to-airport arrangements for refinery and power generation customers.

We do not consolidate urgent single-unit orders into slow economy freight to save cost. If you need it fast, we ship it fast.
