ABB FS500R17OE4D/BGAD-21C IGBT Module – HiPak 6th Gen

ABB FS500R17OE4D/BGAD-21C — 1700 V / 500 A Half-Bridge IGBT Module in Industrial Power Conversion

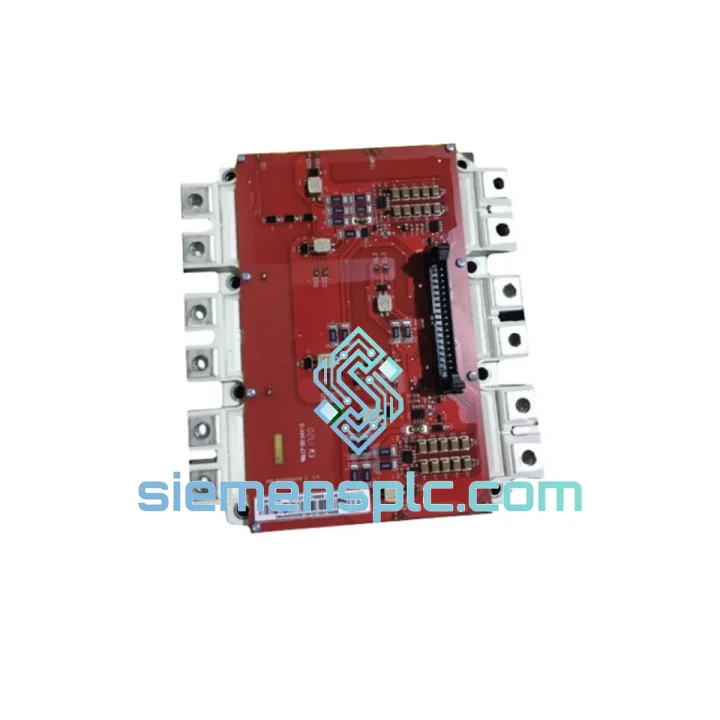

The FS500R17OE4D/BGAD-21C is a sixth-generation HiPak™ press-pack-style IGBT module manufactured by ABB Semiconductors (now Hitachi Energy). It integrates two discrete IGBT switches with co-packaged CAL™ freewheeling diodes in a half-bridge (2-in-1) configuration, rated at 1700 V collector-emitter blocking voltage and 500 A continuous collector current at a case temperature of 80 °C. The /BGAD-21C suffix designates the gate driver interface variant, confirming direct compatibility with ABB’s standardized BGAD-21C driver board — a critical detail for OEM maintenance engineers performing like-for-like replacements in existing drive cabinets.

Within a power conversion control loop, this module occupies the switching stage between the DC bus capacitor bank and the AC output filter. Its function is to commutate load current between the upper and lower switch positions at the commanded duty cycle, translating a regulated DC bus voltage into a pulse-width-modulated AC waveform. The precision of this commutation — defined by switching energy (E_on, E_off, E_rr) and the soft-recovery behavior of the freewheeling diode — directly determines output harmonic distortion, EMI signature, and thermal dissipation budget. At 1700 V / 500 A, the FS500R17OE4D/BGAD-21C targets medium-voltage drive architectures operating on 690 V–1000 V AC bus systems, where device blocking voltage must exceed the peak DC link voltage with adequate margin under transient overvoltage conditions.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The FS500R17OE4D/BGAD-21C is built on ABB’s sixth-generation trench-field-stop (TFS) IGBT cell architecture. The trench gate geometry reduces gate charge Q_g compared to planar designs, lowering driver power consumption at a given switching frequency. The field-stop layer inserted between the drift region and the collector substrate controls the tail current waveform during turn-off, compressing the current tail without increasing V_CE(sat) — a trade-off that earlier punch-through designs could not achieve simultaneously.

The co-packaged CAL™ (Controlled Axial Lifetime) freewheeling diode uses proton irradiation to establish a precisely defined minority carrier lifetime profile across the diode’s drift region. This produces a soft, controlled reverse-recovery characteristic: the peak reverse recovery current I_rr is limited, and the di/dt during recovery is gradual, suppressing the voltage overshoot on the DC bus that would otherwise require larger snubber capacitance or higher-rated bus capacitors. In practical terms, this reduces the EMI conducted emission spectrum in the 150 kHz–30 MHz band, easing compliance with EN 61800-3 Category C2 limits in variable-speed drive installations.

The module’s copper base plate is machined to a flatness tolerance of ≤ 50 µm across the mounting surface. This geometric precision ensures consistent thermal interface resistance when mated with a heatsink using phase-change thermal interface material (TIM). Inconsistent base-plate flatness is a primary cause of field failures in high-power modules, as localized air gaps increase effective R_th(j-c) beyond the datasheet value, leading to junction temperature exceedance under rated load.

The integrated NTC thermistor (100 Ω at 25 °C) is positioned within the module housing in thermal proximity to the IGBT die stack. Its resistance-temperature characteristic follows a standard B-value curve (B_25/85 ≈ 3375 K), allowing the drive controller to implement real-time thermal derating algorithms without external temperature sensors mounted on the heatsink — which would introduce a thermal lag of several seconds due to the heatsink’s thermal mass. The on-module NTC responds within the thermal time constant of the module’s internal structure (typically 1–5 seconds), enabling faster derating response to load transients.

EMC design within the module is addressed at the packaging level. The gate and auxiliary emitter terminals are routed as a twisted pair within the module housing, minimizing the loop area exposed to the high dV/dt switching transients on the power terminals. The BGAD-21C driver board provides galvanic isolation between the control-side logic and the gate drive output, with a common-mode transient immunity (CMTI) rating consistent with the 1700 V blocking class — typically ≥ 50 kV/µs, preventing false triggering of the gate drive output during fast DC bus transients.

System Integration Benefits

• Direct OEM Drop-In Compatibility: The /BGAD-21C suffix ensures the module mates mechanically and electrically with ABB’s BGAD-21C gate driver board without signal-level adaptation, reducing replacement commissioning time from hours to under 30 minutes in documented field procedures.
• Deterministic Thermal Derating via On-Module NTC: The integrated thermistor enables the drive controller to execute closed-loop thermal management with sub-second response, maintaining junction temperature within the safe operating area (SOA) during load surges without relying on slower heatsink-mounted sensors.
• Reduced DC Bus Capacitance Requirement: The CAL™ diode’s controlled I_rr and di/dt reduce the peak voltage overshoot on the DC bus during freewheeling diode recovery, allowing system designers to specify lower-capacitance DC link capacitors — a direct bill-of-materials cost reduction.
• 10 µs Short-Circuit Withstand for Protection Coordination: The rated t_sc of 10 µs at V_CC = 900 V provides sufficient time for the BGAD-21C driver’s desaturation detection circuit to identify a fault condition and execute a controlled soft turn-off, preventing catastrophic module failure during output short-circuit events.
• Wide Junction Temperature Operating Range: The −40 °C to +150 °C T_j range accommodates cold-start conditions in outdoor installations (wind turbines, marine drives) without requiring pre-heating circuits, while the 150 °C upper limit provides thermal headroom above the 125 °C rated operating point.
• 6000 V_AC Isolation for Safety Compliance: The module’s isolation voltage exceeds the requirements of IEC 61800-5-1 (reinforced insulation for 690 V drive systems), simplifying safety certification of the end equipment without additional isolation barriers between the power stage and the control chassis.
• Standardized HiPak™ Footprint for Multi-Source Procurement: The HiPak™ mechanical envelope is shared across multiple ABB module ratings, allowing drive manufacturers to design a single PCB and heatsink assembly that accommodates different current ratings by substituting the module — reducing platform development cost.
• Trench-FS Cell Efficiency at Partial Load: At load currents below 50% of rated I_C, the trench-field-stop cell’s low V_CE(sat) characteristic produces lower conduction losses than equivalent planar IGBT designs, improving drive efficiency in variable-torque applications (pumps, fans) where partial-load operation dominates the duty cycle.

Quality Assurance & Global Logistics

Every FS500R17OE4D/BGAD-21C unit supplied by siemensplc.com is sourced through controlled procurement channels with full date-code and lot-number traceability. Prior to dispatch, each module undergoes a structured incoming inspection protocol: visual examination of the base plate, power terminals, and auxiliary connector for mechanical damage; verification of the module label against the purchase order part number; and basic electrical screening including gate-emitter threshold voltage V_GE(th) measurement and collector-emitter leakage I_CES check at ambient temperature. Units that do not pass screening are quarantined and not shipped.

Packaging follows JEDEC J-STD-033 guidelines for moisture-sensitive power devices: each module is sealed in a moisture barrier bag with desiccant and a humidity indicator card, placed in an anti-static foam insert, and packed in a double-wall corrugated carton rated for the module’s 5.9 kg mass. This packaging configuration has been validated for DHL and FedEx express handling without base-plate damage.

Shipments originate from Xiamen, China. Standard express delivery via DHL or FedEx reaches most destinations in Europe, North America, Southeast Asia, and the Middle East within 3–7 business days from order confirmation. Sea freight consolidation is available for bulk orders of five or more units, with transit times of 15–25 days depending on destination port. Export documentation — including commercial invoice, packing list, and certificate of origin — is prepared in compliance with the destination country’s import requirements. HS code 8541.10 applies to IGBT modules for customs classification purposes. A 12-month warranty against manufacturing defects under rated operating conditions is provided with every unit.
