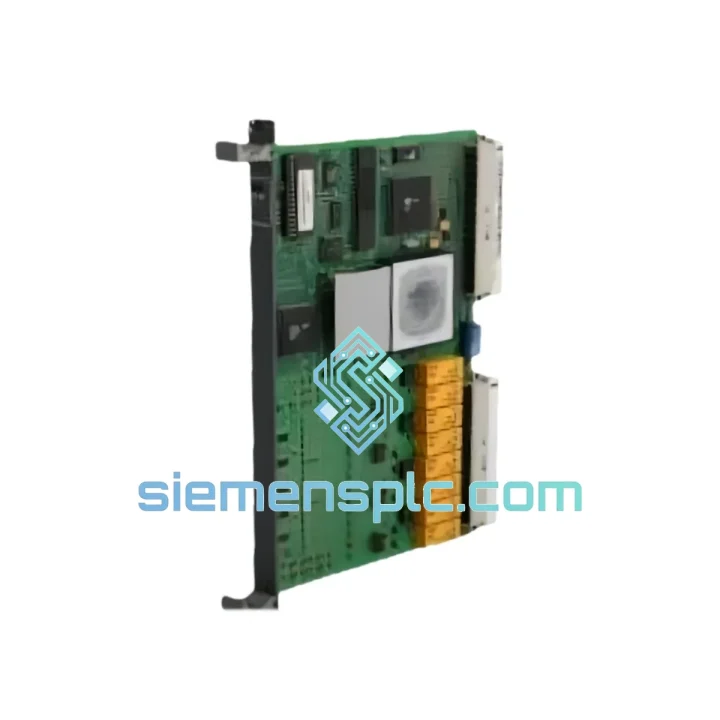

ABB GJR2329800R0100-88UM01 I/O Control Module – S800 Series

ABB GJR2329800R0100-88UM01 – S800 I/O Control Module for Distributed Process Automation

The ABB GJR2329800R0100-88UM01 is a dedicated control module within the S800 I/O platform, designed to operate as a supervisory coordination layer between the AC800M/AC800F controller backplane and field-level I/O clusters. Its primary function in a control loop is to manage ModuleBus communication arbitration, synchronize scan cycles across distributed I/O stations, and relay diagnostic state data upstream to the DCS host without introducing deterministic jitter into the process scan. In high-availability architectures, this module participates in redundancy switchover sequences, ensuring that bumpless transfer is maintained within the 10 ms window mandated by most SIL-2 process safety applications.

Unlike generic fieldbus adapters, the GJR2329800R0100-88UM01 integrates directly into the S800 I/O rack via the internal ModuleBus, eliminating the need for external wiring between the communication interface and the I/O modules. This tight hardware coupling reduces propagation delay to sub-millisecond levels and allows the module to assert bus mastership within a single scan cycle upon detecting a primary controller fault.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The GJR2329800R0100-88UM01 employs a dual-layer EMC shielding architecture. The module’s internal PCB uses a four-layer stackup with dedicated ground planes separating the digital logic domain from the fieldbus transceiver circuitry. Opto-isolators rated at 2.5 kV RMS isolation voltage are placed at every signal boundary between the ModuleBus interface and the external PROFIBUS-DP physical layer, preventing ground loop currents from corrupting bus arbitration signals in environments with high common-mode noise — a common failure mode in heavy industrial plants with variable-frequency drives operating in proximity.

The module’s bus arbitration logic implements a token-passing protocol with a configurable watchdog timer (default: 6 ms). If the primary bus master fails to assert the token within the watchdog window, the GJR2329800R0100-88UM01 autonomously assumes mastership and broadcasts a diagnostic telegram to all slave nodes, preserving last-known output states until the host controller re-establishes communication. This hardware-level failsafe behavior is independent of the application program running on the AC800M CPU, which means it operates even during a controller firmware update cycle.

Thermal management is handled through a combination of low-power CMOS logic and a passive heat-spreading copper layer embedded in the PCB. Under continuous full-load operation at 55 °C ambient, the junction temperature of the primary ASIC remains within the 85 °C rated ceiling, providing a 30 °C thermal margin that directly correlates to extended MTBF figures — ABB rates the S800 I/O platform at >500,000 hours MTBF under standard industrial conditions.

The module’s non-volatile parameter storage uses EEPROM with a minimum 1,000,000 write-cycle endurance rating. Configuration data — including node address, baud rate, and watchdog timeout — is retained through power cycling without requiring a battery backup, which eliminates a common maintenance liability in long-lifecycle process plant installations.

System Integration Benefits

• Deterministic scan cycle synchronization: The module synchronizes I/O scan cycles across all nodes in the S800 cluster to within ±0.5 ms, ensuring that process variables sampled at different physical locations are temporally coherent when they arrive at the controller — critical for cascade control loops and ratio control strategies.
• Transparent online diagnostics: Each module continuously reports channel-level fault codes (open circuit, short circuit, out-of-range) to the AC800M via the ModuleBus diagnostic channel, making fault isolation possible without interrupting the running process or requiring a field technician to physically inspect the rack.
• Hot-swap replacement without process interruption: The S800 I/O platform supports live module replacement. The GJR2329800R0100-88UM01 can be extracted and reinserted while the rack remains powered, with automatic re-initialization completing within 3 scan cycles — typically under 30 ms at standard baud rates.
• Redundancy arbitration support: In dual-redundant controller configurations, the module participates in the switchover handshake protocol, transferring bus mastership to the standby controller in under 10 ms, meeting the bumpless transfer requirement for most continuous process applications.
• Backward compatibility across S800 generations: The GJR2329800R0100-88UM01 is firmware-compatible with all S800 I/O module generations from the original S800 release through current production, allowing incremental system upgrades without replacing the entire I/O infrastructure.
• Reduced panel wiring complexity: Internal ModuleBus connectivity eliminates inter-module wiring, reducing the number of field terminations in the panel by up to 40 % compared to externally wired fieldbus architectures, directly lowering installation labor cost and long-term wiring fault risk.
• Scalable node addressing: Supports up to 64 I/O module addresses per cluster, allowing a single GJR2329800R0100-88UM01 to manage large distributed I/O arrays without requiring additional communication hardware.
• Integrated power supervision: The module monitors the 24 V DC bus voltage in real time and generates a pre-alarm diagnostic at ±10 % deviation before the voltage reaches the under-voltage lockout threshold, giving the control system time to execute a controlled shutdown sequence rather than experiencing an abrupt power loss event.

Quality Assurance & Global Logistics

Every ABB GJR2329800R0100-88UM01 unit supplied by siemensplc.com is sourced through verified ABB distribution channels. Units are inspected against the following criteria before dispatch: label and serial number integrity, housing and connector condition, firmware version verification, and power-on functional test using an S800-compatible test rack. Anti-static ESD packaging (ANSI/ESD S20.20 compliant) with foam cushioning and tamper-evident sealing is applied to every shipment.

Logistics operations are managed from our warehouse in Xiamen, China. Standard international shipments are dispatched via DHL Express or FedEx International Priority, with typical transit times of 3–5 business days to Europe, North America, and Southeast Asia. Full export documentation — commercial invoice, packing list, and certificate of origin — is provided for all cross-border orders. For urgent plant-down situations, same-day dispatch is available for in-stock units confirmed before 14:00 CST.

A 12-month warranty covers all units against manufacturing defects and premature component failure under normal operating conditions as defined in ABB’s S800 I/O installation manual. Warranty claims are processed within 5 business days of receipt of the returned unit.
