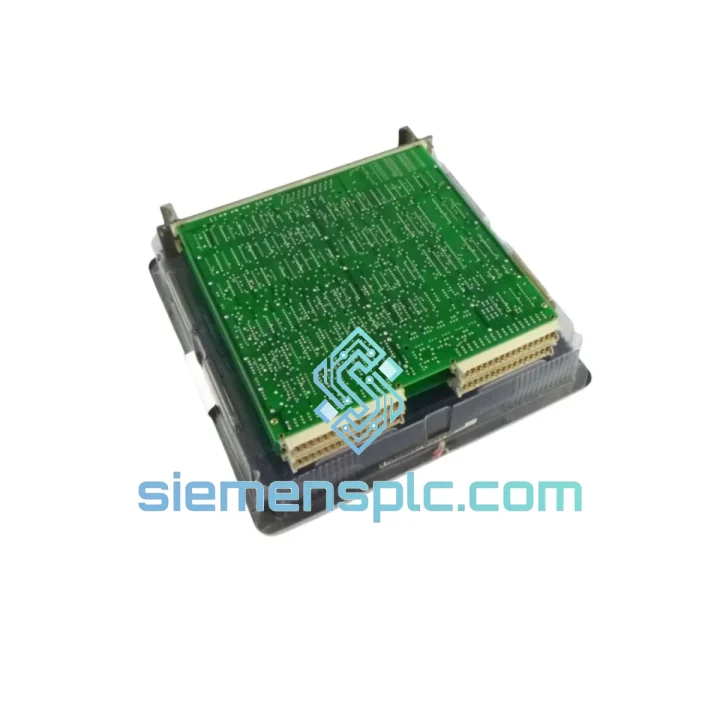

ABB GJR234100R1210 PLC Communication Module – AC500 Series

ABB GJR234100R1210 — Fieldbus Communication Module for AC500 Distributed Control Architecture

In a distributed PLC architecture, the communication module is not a peripheral — it is the arbitration layer between the CPU’s deterministic scan cycle and the asynchronous data demands of field networks. The ABB GJR234100R1210 fulfills this role within the AC500 platform by providing a dedicated, hardware-isolated communication channel that offloads protocol processing from the main CPU, preserving cycle time integrity under high-traffic network conditions.

The AC500 series is ABB’s flagship modular PLC platform, deployed across process automation, discrete manufacturing, power distribution, and infrastructure control. Within this ecosystem, communication modules such as the GJR234100R1210 serve as the physical and logical bridge between the AC500 backplane and external fieldbus or industrial Ethernet segments. The module mounts directly onto the AC500 CPU or expansion rack, interfacing via the internal S500 communication bus — a synchronous, high-speed backplane protocol that guarantees deterministic data transfer between the CPU and all attached modules.

The GJR234100R1210 is engineered to handle the full protocol stack of its designated fieldbus independently. An onboard microprocessor manages frame assembly, token passing or master/slave arbitration, error detection, and acknowledgment — all without consuming CPU processing cycles. This architecture ensures that even at maximum network load, the AC500 CPU’s scan cycle remains unaffected, a critical requirement in safety-adjacent and time-sensitive control loops.

Real-time stock inquiry and RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The GJR234100R1210 implements a dual-processor architecture: a primary application processor handles the fieldbus protocol stack, while a secondary supervisory controller manages backplane handshaking and watchdog functions. This separation of concerns prevents a fieldbus fault — such as a bus collision or CRC error storm — from propagating into the CPU’s execution environment.

Optical Isolation Barrier: The module’s fieldbus interface is galvanically isolated from the AC500 backplane using optocoupler-based isolation rated at a minimum of 500 V AC (rms). This isolation barrier prevents ground loop currents — common in large industrial plants where cable runs span multiple earthing zones — from corrupting backplane logic signals or damaging the CPU module.

EMC Design: The PCB layout follows a split-ground plane strategy, physically separating the digital logic ground from the fieldbus signal ground. Ferrite bead filters are placed on all I/O lines crossing the isolation boundary. The module housing incorporates EMI shielding gaskets at the connector interface, attenuating conducted and radiated emissions in compliance with EN 61000-6-4 Class A limits. This design is validated for environments with variable-frequency drives (VFDs), contactors, and high-current switching loads operating in close proximity.

Watchdog and Fault Containment: An independent hardware watchdog timer monitors the fieldbus processor. If the processor fails to reset the watchdog within the configured timeout window (typically 100–500 ms, configurable via Automation Builder), the module asserts a fault signal on the backplane, triggering a controlled CPU response — either a safe-state output hold or a program-defined fault routine — without requiring a full system restart.

Hot-Swap Readiness: The GJR234100R1210 supports the AC500’s module replacement procedure, which allows field engineers to swap a failed communication module with minimal disruption to the running program, provided the CPU is configured for graceful degradation mode. This reduces mean time to repair (MTTR) in production environments where stopping the line carries significant cost.

System Integration Benefits

• Zero CPU Cycle Overhead: All fieldbus protocol processing — frame parsing, CRC validation, address decoding, and acknowledgment — executes on the module’s dedicated processor. The AC500 CPU receives pre-processed data objects via the S500 backplane, maintaining its programmed scan cycle without jitter introduced by communication load.
• Deterministic Data Latency: The S500 backplane operates on a fixed-cycle synchronous protocol, ensuring that data from the GJR234100R1210 arrives at the CPU within a bounded, predictable time window. This is essential for closed-loop control applications where communication latency directly affects PID stability margins.
• Transparent Diagnostic Reporting: The module maps its internal diagnostic registers — bus status, error counters, node health, and frame statistics — directly into the AC500 process image. Engineers can read these values in real time from any HMI or SCADA system without additional diagnostic tools, reducing fault isolation time from hours to minutes.
• Scalable Network Topology: A single AC500 CPU can host multiple GJR234100R1210 modules (subject to rack slot availability), enabling simultaneous operation on independent fieldbus segments. This eliminates the need for external gateways or protocol converters in multi-network architectures.
• Automation Builder Native Configuration: The module is fully parameterized within ABB’s Automation Builder IEC 61131-3 engineering environment. No external configuration tools or proprietary software licenses are required. Network topology, node addresses, baud rates, and watchdog parameters are all managed within the same project file as the PLC program.
• Firmware Upgrade Path: Module firmware can be updated via the AC500 CPU’s USB or Ethernet interface using Automation Builder, without physical removal of the module. This supports long-term maintainability as fieldbus standards evolve.
• Redundancy Architecture Support: In AC500 redundant CPU configurations, the GJR234100R1210 participates in the redundancy switchover protocol. On primary CPU failure, the standby CPU assumes control of the fieldbus segment within the configured switchover time, maintaining network continuity for connected field devices.
• Wide Environmental Tolerance: The module’s operating range of -25 °C to +60 °C, combined with its vibration and shock ratings per IEC 60068, qualifies it for installation in outdoor enclosures, mobile machinery, and harsh process environments without additional thermal management hardware.
