ABB HIEE205011R0001 UNS3670A-Z V1 Converter Unit – UNITROL

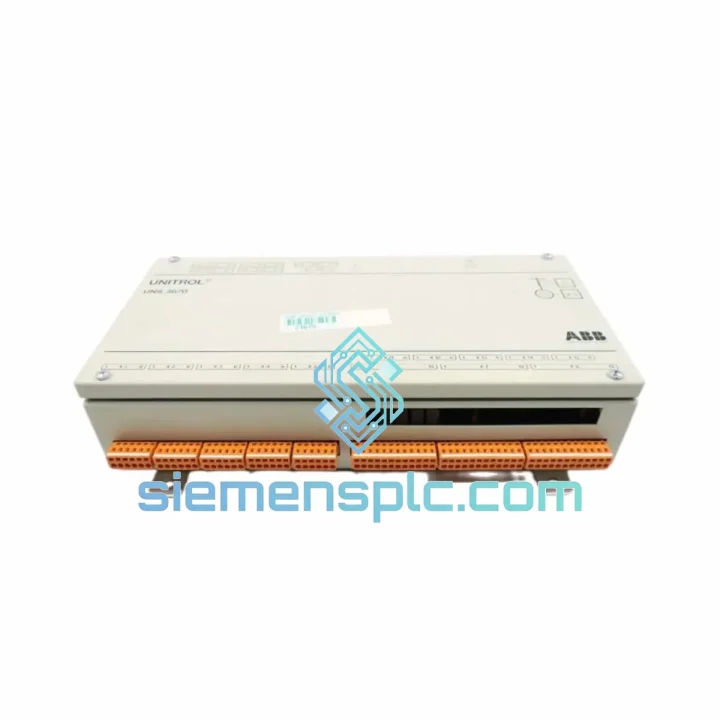

ABB HIEE205011R0001 UNS3670A-Z V1 – Field Converter Unit in UNITROL Excitation Control Architecture

The ABB HIEE205011R0001, designated UNS3670A-Z V1, is a field converter unit engineered for deployment within ABB’s UNITROL excitation control systems and compatible AC/DC drive platforms. Its primary function is to regulate the DC field current supplied to synchronous generators and motors, translating control signals from the excitation regulator into precisely modulated thyristor firing pulses. This closed-loop field current regulation is the foundational mechanism that governs terminal voltage stability, reactive power output, and transient response behavior in large rotating machines.

In a typical UNITROL architecture, the UNS3670A-Z V1 occupies the power conversion layer between the AVR (Automatic Voltage Regulator) board and the thyristor bridge assembly. The module receives a current reference signal from the upstream regulator, compares it against the measured field current feedback, and generates phase-angle-controlled firing pulses with sub-millisecond timing resolution. This deterministic firing sequence is critical in grid-connected generator applications where reactive power dispatch must respond to system frequency deviations within defined ENTSO-E or IEEE Std 421.5 performance envelopes.

The V1 hardware revision establishes a stable, well-documented baseline for long-term spare parts management. Plants operating legacy UNITROL 5000 or UNITROL 6000 excitation panels will find this module a direct form-fit-function replacement, eliminating the firmware migration risk associated with later hardware revisions. For maintenance engineers managing extended asset lifecycles in power generation, cement, steel, or petrochemical facilities, the HIEE205011R0001 represents a low-risk, high-confidence procurement decision.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The UNS3670A-Z V1 is built around a synchronization circuit that phase-locks to the AC supply frequency, typically 50 Hz or 60 Hz, using a zero-crossing detection network. This synchronization reference is fed into a ramp generator whose slope is modulated by the error signal from the field current PI controller. The intersection of the ramp with a fixed threshold determines the firing angle α for each thyristor in the three-phase or single-phase bridge configuration. The result is a firing angle resolution of approximately 0.1° electrical, which translates to field current ripple well within the ±2% tolerance required by most generator OEM specifications.

The gate drive stage employs pulse transformer isolation between the logic-level firing signal and the thyristor gate. This galvanic barrier sustains a minimum 2.5 kV isolation voltage, protecting the low-voltage control circuitry from transient overvoltages generated during thyristor commutation. The pulse width is fixed at approximately 100 µs per firing event, sufficient to guarantee latching current in standard thyristor devices rated from 200 A to 2,000 A.

EMC hardening on the HIEE205011R0001 is implemented at three levels. First, the PCB layout routes high-frequency switching return currents through a dedicated ground plane, minimizing loop area and radiated emissions. Second, ferrite bead filters are placed on all analog input lines to attenuate common-mode noise above 1 MHz. Third, the module housing provides a Faraday shield effect when properly bonded to the excitation panel chassis, reducing susceptibility to externally coupled electromagnetic interference from nearby power cables or bus bars. This three-layer EMC architecture allows the module to operate reliably in switchgear rooms where ambient field strengths may exceed 10 V/m.

The V1 revision also incorporates a watchdog timer on the microcontroller that monitors firing pulse generation continuity. If the firing sequence is interrupted for more than 20 ms — indicating a processor fault or supply undervoltage — the watchdog asserts a hardware fault output that the UNITROL AVR interprets as a converter failure, triggering a controlled field forcing or de-excitation sequence depending on the configured protection mode.

System Integration Benefits

• Deterministic firing latency: Phase-angle control with hardware-synchronized ramp generation ensures firing angle updates are applied within the same AC half-cycle as the reference change, delivering field current response times under 10 ms for step inputs.
• Direct UNITROL backplane compatibility: The HIEE205011R0001 mates directly with the UNITROL 5000 and 6000 backplane connectors without adapter boards, eliminating mechanical and electrical interface risk during replacement.
• Closed-loop field current accuracy: The integrated PI controller maintains field current within ±1% of setpoint under steady-state conditions, supporting generator terminal voltage regulation to ±0.5% as required by IEC 60034-16-1.
• Fault transparency: The module outputs discrete fault signals for overcurrent, firing loss, and synchronization failure, each mapped to a separate diagnostic bit readable by the UNITROL supervisory layer, enabling root-cause isolation without oscilloscope intervention.
• Redundancy arbitration support: In dual-channel UNITROL configurations, the UNS3670A-Z V1 participates in the bumpless transfer handshake protocol, allowing the standby channel to assume control within one AC cycle without field current discontinuity.
• Wide supply voltage tolerance: The internal SMPS accepts auxiliary supply voltages from 18 VDC to 30 VDC, accommodating battery-backed UPS sources common in power plant auxiliary systems without requiring a dedicated regulated supply.
• Thermal derating linearity: The module’s thermal model is linear above 45 °C ambient, with a documented derating curve that allows system designers to calculate maximum continuous field current at elevated temperatures without empirical testing.
• Long-term spare availability: The V1 hardware revision has been in production for over a decade, and siemensplc.com maintains buffer stock specifically for legacy UNITROL installations, supporting plant maintenance schedules with lead times measured in days rather than months.

Quality Assurance & Global Logistics

Every HIEE205011R0001 unit dispatched from our Xiamen, China facility undergoes a structured incoming inspection protocol. Visual examination confirms PCB integrity, connector pin condition, and label authenticity against ABB’s documented part marking standards. Functional verification is performed on a dedicated UNITROL test bench that replicates the backplane power supply, synchronization input, and field current feedback loop, confirming that firing pulse timing, fault output logic, and watchdog behavior all conform to ABB’s published module test specification.

Anti-counterfeit verification includes date code cross-referencing against ABB’s manufacturing records where accessible, and UV fluorescence inspection of component markings. Units that do not pass all inspection stages are quarantined and not offered for sale. Each shipped unit is accompanied by an inspection record documenting test results and the technician’s identification.

Packaging uses ESD-protective bags rated to ANSI/ESD S20.20, enclosed in rigid foam-lined cartons with moisture-barrier desiccant packs. International shipments are dispatched via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with typical transit times of 3–5 business days to Europe, 4–7 days to the Americas, and 2–4 days to Southeast Asia. Full customs documentation including commercial invoice, packing list, and HS code 8537.10 classification is provided as standard. DDP (Delivered Duty Paid) terms are available for qualified accounts.

A 12-month warranty covers all units against manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed within 5 business days of receipt of the returned unit, with replacement dispatch or credit note issued accordingly.
