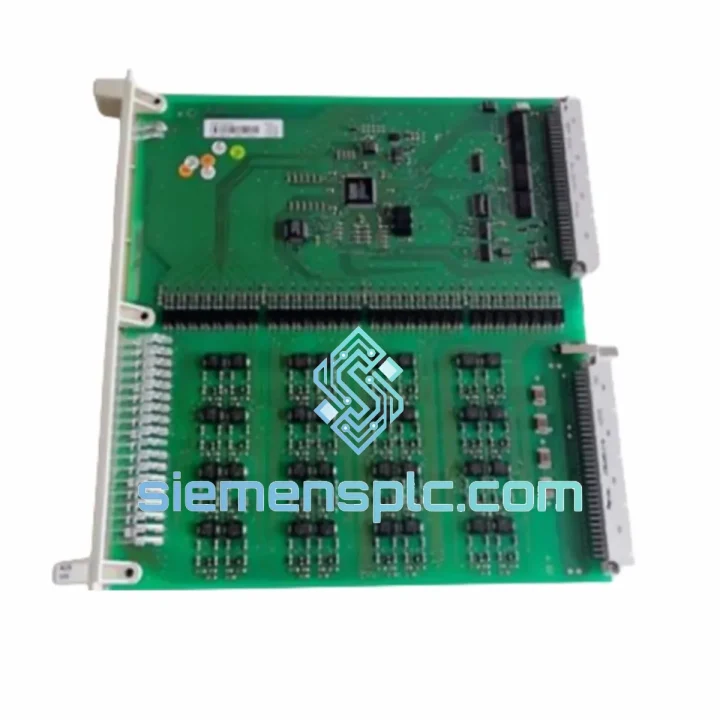

ABB HIEE205012R0001 Measuring Interface Unit – HIEE Series

ABB HIEE205012R0001 – Precision Analog Measurement Interface for DCS Control Architectures

The ABB HIEE205012R0001 is a dedicated Measuring Interface Unit engineered for deployment within ABB’s Advant and AC800M distributed control system families. Its primary function is to serve as the signal-conditioning and galvanic-isolation boundary between field-level transducers and the controller’s internal data bus, ensuring that analog process variables — temperature, pressure, flow, and level — are converted, filtered, and transmitted with deterministic accuracy across the control loop. Unlike generic analog input cards, the HIEE205012R0001 is designed to operate as a tightly coupled subsystem element, with hardware-level handshaking to the ABB backplane that eliminates the latency variability introduced by software polling architectures.

In a typical DCS topology, the measuring interface layer is the most failure-sensitive segment of the signal chain. Field wiring introduces common-mode noise, ground loops, and transient spikes that, if not attenuated at the module boundary, propagate directly into the controller’s A/D conversion stage and corrupt process variable readings. The HIEE205012R0001 addresses this through a multi-stage input protection and isolation architecture: each channel is individually optocoupled, with a rated common-mode rejection ratio (CMRR) sufficient to suppress 50/60 Hz interference from adjacent power conductors. The module’s input impedance is matched to standard 4–20 mA transmitter loops, and the internal reference voltage is temperature-compensated to maintain calibration accuracy across the full industrial operating range of -20 °C to +70 °C.

From a backplane integration standpoint, the HIEE205012R0001 communicates via ABB’s proprietary S-bus protocol, which provides cyclic data exchange with the CPU module at scan rates consistent with fast process control loops. The module’s onboard microcontroller handles channel multiplexing, A/D conversion sequencing, and self-diagnostic reporting independently of the main CPU, offloading measurement processing from the controller’s primary execution thread. This distributed processing model is a deliberate architectural choice in ABB’s Advant platform: it allows the CPU to maintain deterministic scan cycle times even when a large number of analog channels are active simultaneously.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The HIEE205012R0001’s internal architecture reflects ABB’s design philosophy of separating field-side signal conditioning from controller-side data processing at the hardware level. The following characteristics define its engineering profile:

Per-Channel Galvanic Isolation: Each input channel is isolated via a dedicated optocoupler stage rather than a shared isolation transformer. This topology prevents a fault on one channel — such as a wiring short to a high-voltage rail — from coupling noise or damage into adjacent channels. The isolation barrier is rated to withstand transient voltages consistent with IEC 61000-4-5 Level 3 surge testing (2 kV line-to-earth), which is the relevant standard for field wiring in industrial environments where motor drives and switching equipment operate in proximity.

Temperature-Compensated Reference Voltage: The internal voltage reference used by the A/D converter is stabilized against thermal drift using a bandgap reference circuit with a temperature coefficient of < 10 ppm/°C. This ensures that the module’s calibration accuracy of ± 0.1% FS is maintained across the full operating temperature range without requiring periodic field recalibration — a significant operational advantage in installations where ambient temperature varies seasonally.

Onboard Signal Processing Microcontroller: A dedicated microcontroller manages channel multiplexing, conversion sequencing, and linearization for thermocouple and RTD inputs. Linearization tables for all supported sensor types are stored in non-volatile flash memory, eliminating the need for the host CPU to perform sensor-type-specific calculations. This offload architecture reduces the CPU’s analog processing overhead to a single cyclic read of pre-processed engineering-unit values.

EMC Shielding and PCB Layout: The module’s PCB employs a split ground plane design that physically separates the analog signal ground from the digital logic ground, with a single-point connection at the A/D converter’s reference pin. This layout minimizes digital switching noise coupling into the analog signal path — a common failure mode in lower-cost interface modules that use a unified ground plane. The module housing includes EMI gaskets at the backplane connector interface to maintain the rack enclosure’s shielding continuity.

Watchdog and Diagnostic Logic: An independent hardware watchdog timer monitors the onboard microcontroller’s execution cycle. If the microcontroller fails to reset the watchdog within the defined interval — indicating a firmware hang or hardware fault — the watchdog asserts a fault signal on the backplane bus, which the CPU module reads as a module health status bit. This mechanism ensures that a silent module failure (one that does not produce an obvious output error) is detected and reported within one controller scan cycle.

System Integration Benefits

• Deterministic scan cycle contribution: Because analog conversion and linearization are handled onboard, the module presents pre-processed data to the CPU bus, keeping the controller’s scan cycle time independent of the number of active analog channels.
• Zero-configuration backplane plug-in: The module is recognized automatically by the ABB Advant and AC800M configuration tools upon insertion; no manual address DIP-switch setting is required, reducing commissioning errors in multi-module racks.
• Transparent channel-level diagnostics: Each channel reports individual status bits (open-circuit, over-range, under-range, sensor fault) to the controller, enabling the SCADA layer to display per-channel health without requiring additional diagnostic hardware.
• Hot-swap compatibility: The module supports live insertion and removal in systems configured for redundant I/O operation, allowing maintenance replacement without process shutdown — a critical requirement in continuous-process industries such as refining and chemical manufacturing.
• Firmware-independent sensor type switching: Sensor type configuration (mA, RTD, TC) is stored in the module’s non-volatile memory and survives power cycling, eliminating the risk of sensor type reset after a power interruption.
• Consistent signal latency: The S-bus cyclic exchange protocol delivers measurement data to the CPU at a fixed interval, providing the control algorithm with a consistent time-stamp reference for derivative calculations in PID loops — a property that is not guaranteed in modules using interrupt-driven or event-triggered data transfer.
• Reduced field wiring complexity: The module’s input impedance and loop power supply architecture are compatible with standard 2-wire and 4-wire transmitter configurations without external signal conditioners, reducing panel wiring density and potential failure points.
• Long-term spare parts alignment: As an OEM-designated module within the ABB Advant and AC800M product families, the HIEE205012R0001 is supported by ABB’s global spare parts program, ensuring availability of replacement units and firmware updates throughout the system’s operational lifecycle.

Quality Assurance & Global Logistics

Every HIEE205012R0001 unit supplied by siemensplc.com is sourced as genuine ABB OEM hardware — not third-party clone or refurbished-without-disclosure stock. Units are procured through documented supply channels and undergo incoming inspection that includes visual examination of PCB and connector condition, verification of ABB part number labeling and date codes, and functional power-on testing against known-good reference signals prior to dispatch.

Packaging follows IEC 60068-2-27 shock and vibration handling guidelines: each module is individually sealed in anti-static ESD bags, cushioned with closed-cell polyethylene foam, and boxed in double-wall corrugated cartons rated for international air freight handling. A Certificate of Conformance (CoC) documenting the part number, serial number, test date, and inspection result is included with every shipment.

Logistics operations are based in Xiamen, China — a major international cargo hub with direct air freight connections to Frankfurt, Amsterdam, Dubai, Singapore, Los Angeles, and Chicago. Standard dispatch lead time for in-stock units is 1–2 business days from order confirmation. Express delivery to most destinations in Europe, the Middle East, and Southeast Asia is achievable within 3–5 business days via DHL Express or FedEx International Priority. North American destinations typically receive shipments within 5–7 business days. All shipments include full export documentation: commercial invoice, packing list, and Certificate of Origin for customs clearance purposes.
