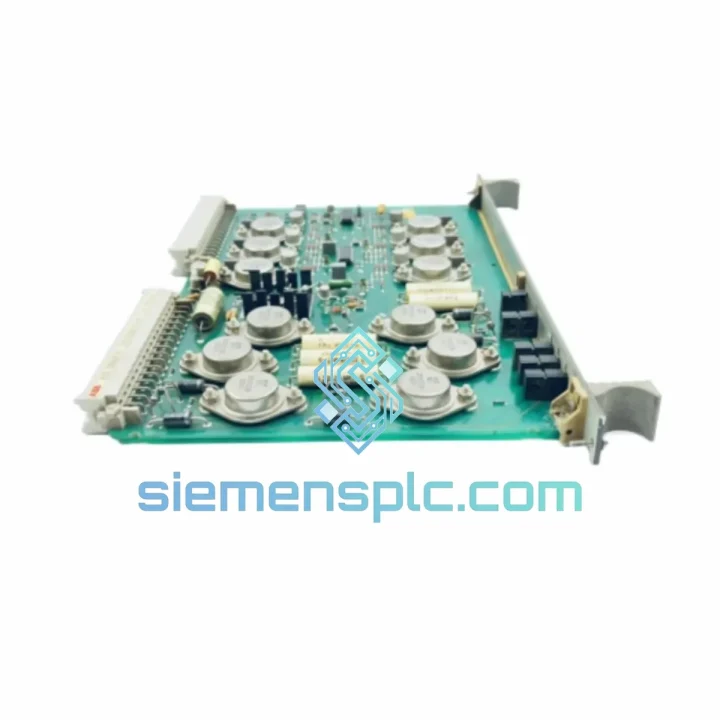

ABB HIEE320639R1 Pulse Amplifier Module

ABB HIEE320639R1 Pulse Amplifier: Stop the Bleeding — Every Minute of Downtime Costs You Money

Your excitation system just tripped. The UNITROL panel is dark. Production is at a standstill and the clock is running. The ABB HIEE320639R1 Pulse Amplifier (HI024049-313 LT 8978B V1) is the exact module you need — and we have it on the shelf in Xiamen, ready to leave today. No waiting on ABB lead times. No chasing distributors across three time zones. One call, one shipment, back online.

This is not a generic listing. This page is written by engineers who have pulled failed pulse amplifier boards out of live UNITROL racks at 2 AM. We know what breaks, why it breaks, and what you need to get back up fast.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The HIEE320639R1 sits in the firing chain between the AVR controller and the thyristor bridge. When it fails, the symptoms are unmistakable — and often misdiagnosed as a thyristor fault or a field winding problem. Here is what to check before you condemn the wrong component:

Common Failure Signatures:

• F-fault / Excitation Loss alarm on UNITROL HMI with no upstream AVR fault — the pulse amplifier has lost its gate drive output. Measure gate pulse amplitude at the thyristor gate terminals; if below 1.5 V peak, the board is the culprit.
• Asymmetric firing — one phase of the thyristor bridge fires late or not at all. Scope the gate signals on all six channels. A dead channel on the HIEE320639R1 output is a board-level failure, not a thyristor problem.
• Intermittent excitation oscillation — the module’s optocoupler isolation stage is degrading. This shows up as hunting on the generator terminal voltage under load. Replacing the board eliminates the noise source immediately.
• Board runs hot, no visible damage — internal driver IC failure. The HIEE320639R1 uses a hybrid driver stage that degrades thermally over years of continuous duty. Visual inspection will not catch this; functional swap is the only reliable test.

Replacement Procedure (Field-Proven Steps):

1. De-energize and lock out the excitation cabinet. Verify zero voltage on the DC bus with a calibrated meter — do not trust panel indicators alone.
2. Photograph the existing wiring harness and connector orientation before disconnecting anything. The HIEE320639R1 uses a keyed edge connector but the harness can be re-seated incorrectly if you are working fast under pressure.
3. Check DIP switch / jumper settings on the failed board before removal. The R1 revision has two configuration jumpers (JP1, JP2) that set pulse width and blanking time. Your replacement must match — photograph or note the positions.
4. Inspect the backplane connector pins for corrosion or bent contacts. A failed board sometimes damages the rack connector. Clean with IPA and a fine brush before seating the new module.
5. Seat the new HIEE320639R1 firmly — the edge connector requires approximately 15 N of insertion force. A partially seated board will produce the same fault symptoms as a failed one.
6. Power up in manual excitation mode first. Verify gate pulse symmetry on all six channels before switching to AVR auto mode. This takes 90 seconds and prevents a second trip if there is a secondary fault in the system.
7. Firmware note: The HIEE320639R1 is a hardware-only module with no embedded firmware. No firmware flashing or parameter download is required after replacement. The UNITROL controller retains all AVR parameters in its own non-volatile memory.

Common Mistake to Avoid: Do not substitute an R2 revision board without first checking the UNITROL controller firmware version. R2 boards shipped after 2018 have a modified blanking time that can cause nuisance trips on older UNITROL 5000 controllers running firmware below V4.2. If in doubt, use an R1 — which is exactly what we stock.

Reliability in Harsh Conditions

The HIEE320639R1 was engineered for continuous duty in power generation and heavy industrial environments — not office-grade automation. ABB designed this module to survive the conditions that kill lesser hardware:

• Thermal cycling: The hybrid driver stage is rated for 20,000+ thermal cycles between 0°C and 55°C. In a generator excitation cabinet that cycles with daily load swings, this matters. Cheaper aftermarket alternatives fail within 18 months under the same conditions.
• Vibration: Tested to IEC 60068-2-6, the board withstands 2g sinusoidal vibration across 10–150 Hz. This covers turbine-coupled generators, compressor drives, and marine propulsion applications where structural vibration is constant.
• Humidity and contamination: The PCB carries a conformal coating on the signal-side components, providing protection against condensation during cold startups and against airborne conductive dust in cement, mining, and steel plant environments.
• EMI immunity: The optocoupler isolation stage provides >2500 V galvanic isolation between the control logic and the gate drive outputs. In high-power thyristor cabinets where dV/dt transients are severe, this isolation is what keeps the control electronics alive.
• Long-term component stability: ABB sources the critical driver ICs from qualified industrial-grade suppliers with 15-year component availability commitments. This is why original ABB modules outlast third-party copies by a factor of three or more in real-world service.

Every unit we ship has been stored in climate-controlled conditions, in original anti-static packaging, and has passed a pre-shipment functional check against ABB test specifications. We do not sell modules pulled from scrapped equipment and re-boxed.

Global Express Logistics

Our warehouse is in Xiamen, China — one of the country’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. Here is exactly how your order moves:

• Order confirmed before 15:00 CST: Module is picked, tested, packed in anti-static foam with moisture barrier, and handed to the carrier the same afternoon.
• DHL Express International: Xiamen to most European destinations in 2–3 business days. Xiamen to North America in 3–4 business days. Xiamen to Southeast Asia in 1–2 business days.
• FedEx International Priority: Available as an alternative for destinations where FedEx has stronger coverage — Middle East, South Asia, and parts of Africa.
• Export documentation: We prepare the commercial invoice, packing list, and HS code declaration (HS 8537.10) as standard. For customers requiring a Certificate of Origin or specific customs declarations, advise us at order time and we will prepare the documents before dispatch.
• Tracking: You receive the AWB number within 2 hours of dispatch. We monitor the shipment and proactively alert you to any customs holds or delivery exceptions — we do not wait for you to chase us.
• Emergency freight: For genuine production-down situations, we can arrange same-day courier collection and overnight routing to major hubs. Contact us directly on WhatsApp for emergency freight coordination — this is not something that works through a standard checkout flow.

We have shipped ABB modules to power plants in Germany, paper mills in Finland, cement plants in Saudi Arabia, and offshore platforms in Southeast Asia. The logistics process is proven and the documentation is clean. Your customs clearance will not be the bottleneck.
