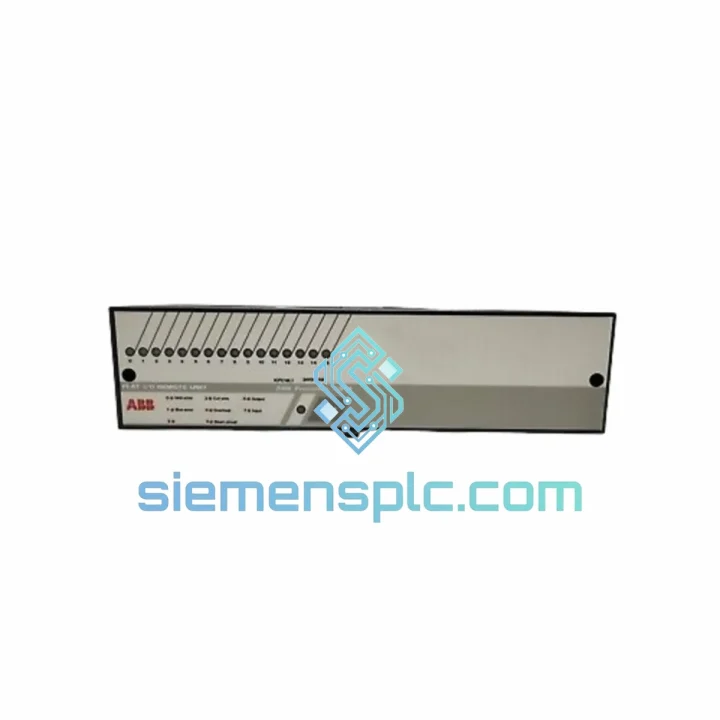

ABB ICFC16L1 FPR3319102R1162 — Optical Fiber Remote I/O Interface Node for AC800M Distributed Control Architecture

In a distributed control system, the field communication layer is the nervous system of the entire process. Every analog measurement, every discrete interlock signal, every valve position feedback travels through this layer before reaching the controller. When that layer degrades — whether from electromagnetic interference, ground loops, or a failed interface node — the controller loses situational awareness and process safety margins collapse. The ABB ICFC16L1 (ABB Reference: FPR3319102R1162) is the flat-form-factor remote I/O interface unit engineered specifically to anchor this communication layer within ABB’s AC800M controller platform, delivering deterministic signal transport over optical fiber with the mechanical robustness demanded by continuous-process industries.

The ICFC16L1 functions as the physical and logical bridge between the AC800M controller backplane and the distributed S800 I/O station. It terminates the optical fiber fieldbus segment, manages the cyclic data exchange protocol between the controller and remote I/O clusters, and provides the galvanic isolation barrier that decouples field-side ground potentials from the controller electronics. Its flat, compact rail-mount form factor allows dense marshalling cabinet layouts without sacrificing accessibility for maintenance personnel.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Optical Fiber Galvanic Isolation Architecture
The ICFC16L1 replaces copper-based fieldbus segments with an optical fiber link, eliminating the common-mode voltage problem that plagues copper installations in heavy industrial environments. In facilities where large motors, arc furnaces, or high-voltage switchgear operate in proximity to control cabinets, ground potential differences of several volts are routine. Copper fieldbus cables act as antennas for these potentials, injecting noise directly into the signal path. The optical fiber link in the ICFC16L1 carries no electrical potential — the signal is encoded as light pulses, transmitted through a dielectric medium, and decoded on the far end with zero conducted interference. This architecture eliminates the need for signal isolators on individual I/O channels, reducing BOM cost and failure-point count in the field wiring layer.

Cyclic Data Exchange and Determinism
The ICFC16L1 manages the cyclic polling of all I/O modules within its connected S800 station. The module maintains a fixed scan cycle synchronized to the AC800M controller’s execution cycle, ensuring that process values presented to the controller application are temporally consistent — all inputs captured within the same scan window. This deterministic behavior is critical for closed-loop control applications where phase lag between input sampling and output actuation directly affects control loop stability. The module’s internal buffering logic holds the last valid process image during transient communication interruptions, preventing spurious value changes from propagating to the controller application layer.

EMC Design and Shielding Strategy
The module housing incorporates a grounded metal enclosure that provides a Faraday shield around the internal electronics. The optical transceiver circuitry is physically separated from the power supply section by a PCB ground plane partition, reducing capacitive coupling between the switching power supply and the signal-processing circuits. Ferrite bead filtering on the DC power input rail attenuates high-frequency conducted emissions from the cabinet power bus. These design measures collectively allow the ICFC16L1 to meet IEC 61000-4-4 (electrical fast transient) and IEC 61000-4-5 (surge) immunity requirements without external filtering components.

Redundancy Arbitration Logic
In redundant AC800M configurations, two ICFC16L1 units can be deployed in a primary/backup topology. The arbitration logic embedded in the module monitors the health of the active fiber link and the controller heartbeat signal. Upon detection of a link failure or controller switchover event, the standby unit assumes active status within the system’s defined switchover time, maintaining continuous I/O data exchange without requiring a controller restart. The bumpless transfer mechanism ensures that output modules hold their last commanded state during the switchover interval, preventing process upsets.

System Integration Benefits

• Zero ground-loop interference: Optical fiber medium eliminates conducted EMI paths between field devices and the controller, removing the most common source of analog signal noise in heavy industrial installations.
• Extended cable reach: Optical fiber segments support significantly longer runs than copper RS-485 or PROFIBUS DP cables, enabling remote I/O placement at distances that would be impractical with copper fieldbus — reducing field wiring costs in large-footprint plants.
• Deterministic scan cycle: Fixed cyclic polling synchronized to the AC800M execution cycle ensures all process inputs are captured within a consistent time window, supporting stable PID and cascade control loop performance.
• Diagnostic transparency: The module reports communication health status, fiber link quality indicators, and I/O station fault codes back to the AC800M controller, making fault localization a software-visible event rather than a physical cable-tracing exercise.
• Hot-swap maintenance: The flat module design supports removal and replacement under power in compatible system configurations, allowing corrective maintenance without a full process shutdown — a critical capability in continuous-process industries where planned outages are scheduled months in advance.
• Scalable I/O topology: Multiple ICFC16L1 units can be deployed across a single AC800M system to distribute I/O stations across the plant floor, with each unit independently managing its local S800 cluster and reporting to the central controller over the optical fieldbus backbone.
• Reduced cabinet wiring density: By consolidating field signal termination into S800 I/O modules at the remote station, the ICFC16L1 architecture eliminates the need to route individual field cables back to a central marshalling cabinet — reducing cable tray fill, installation labor, and long-term maintenance complexity.
• Firmware-compatible upgrade path: The ICFC16L1 is supported across multiple generations of AC800M firmware, allowing existing installations to benefit from controller software updates without requiring hardware replacement at the remote I/O layer.
• Intrinsic safety boundary support: When paired with appropriate S800 I/O modules rated for hazardous area applications, the ICFC16L1 forms part of the safety boundary architecture for Zone 1/Zone 2 field device interfacing, with the optical fiber link providing the required galvanic separation between the safe area controller and the hazardous area field wiring.
