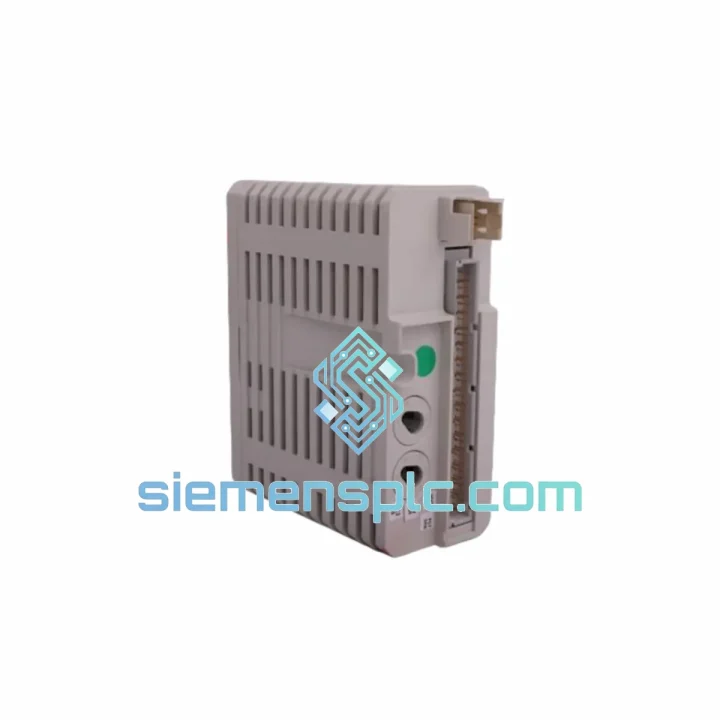

ABB IMFAI02 Analog Input Module – INFI 90 / Advant DCS

ABB IMFAI02 Fast Analog Input Module – Signal Acquisition Architecture in Closed-Loop DCS Control

The ABB IMFAI02 is a dedicated fast-scan analog input module engineered for the INFI 90 and Advant distributed control system platforms. Within a DCS control loop, the analog input module occupies the first stage of the signal chain: it receives raw field-level process variables—pressure transmitter outputs, thermocouple signals, flow meter currents—and converts them into digitized engineering values that the controller can act upon. The IMFAI02 is specifically optimized for applications where standard-rate analog acquisition is insufficient, providing a higher sampling cadence that reduces loop latency and improves the fidelity of closed-loop regulation.

In continuous process industries—oil refining, chemical synthesis, power generation, pulp and paper—control loop response time is a direct determinant of product quality and plant safety. A standard analog input module operating at a 100 ms scan cycle introduces a worst-case delay of 100 ms before a process deviation is detected and forwarded to the controller. The IMFAI02 reduces this acquisition latency, enabling tighter PID tuning parameters and more aggressive setpoint tracking without sacrificing stability margins. This is particularly relevant in fast-responding processes such as compressor surge control, burner management, and turbine speed regulation, where signal delays translate directly into process excursions.

The module interfaces with the INFI 90 backplane via the Module Bus, a deterministic token-passing communication architecture that guarantees bounded cycle times regardless of system load. This determinism is a prerequisite for real-time control: the controller can schedule its execution cycle with the certainty that fresh analog data will be available at a known, repeatable interval. The IMFAI02 participates in this architecture as a well-defined node, presenting its digitized channel data to the Master Fieldbus Processor (MFP) on each bus cycle.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Optical Isolation Architecture: The IMFAI02 implements galvanic separation between the field-side analog input circuitry and the backplane logic domain via optocoupler barriers. This isolation topology serves two distinct engineering functions. First, it eliminates ground loop currents that would otherwise introduce common-mode noise into the A/D conversion stage—a critical consideration in industrial environments where field wiring may span hundreds of meters and traverse areas with significant ground potential differences. Second, it protects the backplane bus and controller from transient overvoltages originating at the field terminals, such as those induced by nearby switching of inductive loads or lightning-coupled surges on cable runs.

EMC Design Considerations: Industrial process environments present a dense electromagnetic interference profile: variable-frequency drives generate conducted and radiated emissions across a broad spectrum, high-current motor starters produce fast transients on the power distribution network, and RF communications equipment introduces radiated fields. The IMFAI02’s analog front-end incorporates input filtering designed to attenuate high-frequency interference before it reaches the A/D converter, preserving signal integrity at the digitization stage. The module’s PCB layout follows shielding and ground plane practices consistent with ABB’s EMC design standards for industrial control hardware.

A/D Conversion and Data Integrity: The 12-bit analog-to-digital conversion stage provides 4,096 discrete levels across the configured input span. For a 4–20 mA input, this yields a resolution of approximately 3.9 µA per count—sufficient for the measurement accuracy requirements of most process control applications. The conversion result is latched and transferred to the Module Bus interface logic, where it is formatted into the INFI 90 data protocol and made available to the MFP on the next bus poll cycle. This pipelined architecture ensures that A/D conversion and bus communication proceed without mutual blocking, contributing to the module’s fast effective throughput rate.

Backplane Bus Participation: On the INFI 90 Module Bus, each module is assigned a fixed node address and responds to MFP polling within a deterministic time window. The IMFAI02 implements the full Module Bus protocol stack in hardware logic, ensuring that bus participation overhead does not vary with channel count or signal amplitude—a property that simplifies worst-case cycle time analysis during system design.

System Integration Benefits

• Reduced Control Loop Latency: Faster analog acquisition directly shortens the total loop dead time, allowing PID controllers to be tuned with higher proportional gain and faster integral action without inducing oscillation—improving setpoint tracking accuracy in dynamic processes.
• Deterministic Data Delivery: Module Bus participation guarantees that fresh channel data is available to the MFP at a bounded, repeatable interval, enabling the controller to execute its algorithm on a fixed schedule with no uncertainty about data age.
• Drop-in Form-Fit-Function Replacement: The IMFAI02 occupies a standard INFI 90 card slot and uses the existing backplane connector and termination unit wiring, eliminating the need for mechanical or wiring modifications during replacement—critical for minimizing planned maintenance windows.
• Diagnostic Transparency: The module reports its operational status to the MFP via the Module Bus, enabling the DCS operator station to display module health, channel fault conditions, and out-of-range alarms without requiring physical inspection of the field cabinet.
• Backward Compatibility with Legacy Installations: INFI 90 systems installed in the 1990s and 2000s remain in active service at refineries and power plants worldwide. The IMFAI02 integrates into these existing architectures without firmware or configuration changes to the controller, protecting the capital investment in the installed base.
• Reduced Spare Parts Inventory Complexity: A single IMFAI02 spare covers all fast-scan analog input slots in the system, simplifying the spare parts bill of materials and reducing the working capital tied up in maintenance inventory.
• Improved Process Safety Margin: Faster detection of process variable deviations provides additional time for the safety instrumented system (SIS) or operator to respond before a process reaches a hazardous state—a quantifiable contribution to the overall safety integrity of the installation.
• Compatibility with IEC 61511 System Architectures: While the IMFAI02 is a basic process control module rather than a certified SIL device, its reliable operation within the BPCS contributes to the overall risk reduction strategy by maintaining accurate process variable data for operator monitoring and alarm management.

Quality Assurance & Global Logistics

Every ABB IMFAI02 unit supplied by siemensplc.com is sourced as genuine ABB original hardware. ABB’s manufacturing quality management system for industrial automation modules applies rigorous incoming material inspection, in-process electrical testing, and final functional verification before a module leaves the production facility. The IMFAI02 carries ABB’s standard product warranty and is traceable to ABB’s manufacturing records via its serial number.

Prior to shipment, each unit undergoes a functional verification procedure at our Xiamen facility: power-on self-test confirmation, visual inspection for physical integrity, and ESD-safe packaging in anti-static foam-lined cartons. Serial number and condition documentation are provided with each shipment upon request.

Our logistics operation is based in Xiamen, China—a major international port city with direct air freight connections to Europe, North America, Southeast Asia, the Middle East, and Oceania. Standard international shipments are dispatched within 1–3 business days of order confirmation. Expedited DHL Express and FedEx Priority services are available for urgent plant maintenance requirements, with typical transit times of 3–5 business days to most global destinations. Export documentation, commercial invoices, and packing lists are prepared in compliance with destination country customs requirements. HS code classification and country-of-origin documentation are provided as standard.

For customers operating under planned maintenance schedules, we offer reserved stock arrangements and blanket purchase order agreements to ensure module availability ahead of scheduled outage windows.
