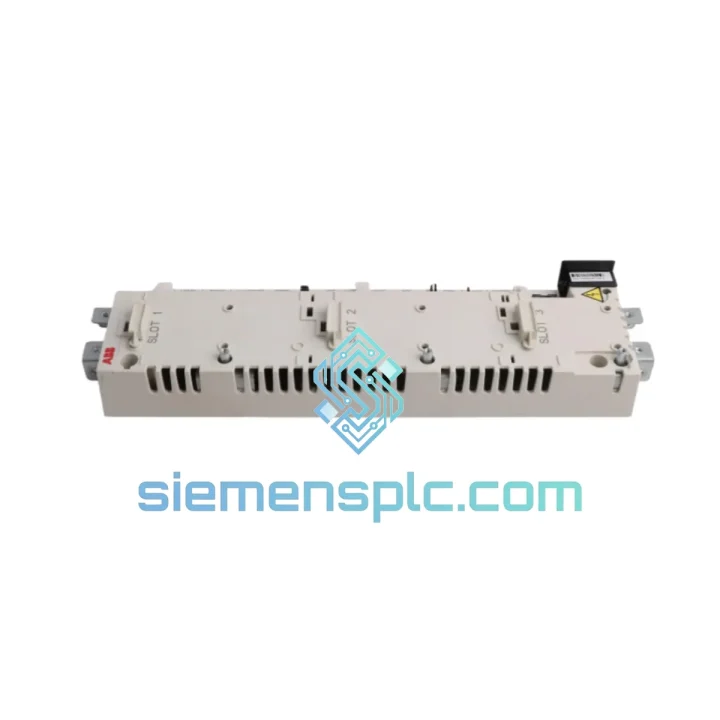

ABB JCU-11 PLC Control Module

ABB JCU-11 — Line Down? This Control Module Ships from Xiamen Within Hours

Every minute your ACS880 or ACS580 sits dark, the cost compounds. A failed JCU-11 is not a degraded-performance scenario — it is a full stop. The control unit integrates the motor algorithm processor, I/O interface, fieldbus stack, and parameter memory into a single non-repairable assembly. There is no component-level fix. The only path back to production is a verified replacement unit in your hands, installed and commissioned.

We stock the JCU-11 in Xiamen. Not on order, not inbound — physically on the shelf. Orders confirmed before 15:00 CST leave the same day via DHL Express or FedEx International Priority. If your line is down right now, contact us on WhatsApp before you finish reading this page. We will confirm stock and commit to a dispatch window in under ten minutes.

The JCU-11 is the nerve center of ABB’s most widely deployed industrial drive families. It executes Direct Torque Control algorithms in real time, manages all fieldbus transactions, handles the safety function chain, and retains the full motor ID dataset that took your commissioning team hours to generate. When the processor fails, none of those functions degrade gracefully — they terminate. Engineers who have worked ACS880 and ACS580 drives recognize this immediately: a blank panel with no boot sequence, or a persistent FF-7001 with fiber links confirmed intact, is the JCU-11 until proven otherwise.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

What follows is not a paraphrase of the ABB hardware manual. These are the fault patterns and swap pitfalls that show up repeatedly in real emergency callouts on ACS880 and ACS580 installations.

Fault Signatures That Implicate the JCU-11 Directly:

• FF-7001 / FF-7002 — Internal DDCS communication fault. Verify fiber optic links first with a visual inspection and, if available, an optical power meter. If the fiber path is confirmed clean and the fault does not clear after a controlled power cycle, the JCU-11 internal communication processor has failed. Parameter resets will not help — the hardware is the fault.
• FF-6310 — Control board supply voltage fault. Measure the 24 VDC auxiliary input at the terminal block with a calibrated meter before condemning the JCU-11. If auxiliary voltage is within spec (21.6–28.8 VDC), the onboard DC-DC converter has degraded. The PSU is not the problem — the control board is.
• A-7091 — Control board temperature warning. Clear the airflow path and inspect the heatsink for dust accumulation. If ambient temperature is within the rated envelope and the warning persists after cleaning, the onboard NTC thermal sensor or the processor thermal management circuit is the failure point. The board requires replacement.
• No panel response, no boot sequence. Swap the ACS-AP panel to a confirmed-working drive first. If the panel operates normally on another drive and the original drive still shows nothing, the JCU-11 has failed to initialize. This is a board-level fault — not a panel, not a power supply.
• Fieldbus dropout after power restore, stable prior to failure. Frequently misattributed to network infrastructure. If the FBA adapter module and all cabling check out, the JCU-11’s internal communication stack has corrupted. The adapter module is rarely the cause when the drive was previously stable on the same network.

Replacement Procedure — Critical Steps That Get Skipped:

• Back up parameters before anything else. Use the ACS-AP-I or ACS-AP-W panel to upload the full parameter set to the panel memory, or use the MFDT-01 memory unit. The JCU-11 stores motor ID run data — losing it means a full re-identification run before the drive can operate in DTC mode. On a large motor, that run takes time you may not have.
• DC bus discharge — measure it, do not assume it. Power down and wait a minimum of five minutes. Then measure the DC bus voltage directly with a calibrated meter. Do not rely on the drive display — it is already dead. Large-frame ACS880 capacitor banks hold lethal charge well past the standard warning period.
• Dip switch node address — photograph before removal. In multi-drive DDCS or D2D topologies, the JCU-11 carries node address settings on onboard dip switches. An incorrect address on the replacement unit causes the master drive to fail to recognize the follower — a fault that presents identically to a wiring problem and wastes significant diagnostic time.
• Firmware compatibility check. Confirm the replacement JCU-11 firmware revision is compatible with your drive frame version and all installed option modules. A mismatch between the control unit firmware and an FPBA-01 or FENA-21 adapter generates persistent communication faults at startup that are difficult to distinguish from hardware failures.
• Fiber optic connector handling. The DDCS fiber connectors on the JCU-11 are the most mechanically vulnerable element in the swap. Keep dust caps installed until the moment of connection. A cracked ferrule produces intermittent FF-7001 faults that are nearly impossible to diagnose without optical test equipment.
• Motor ID run if no backup exists. Running the drive on default parameters with an unidentified motor in DTC mode produces unstable torque response and will trigger overcurrent trips under load. If no parameter backup was captured before the failure, a full motor ID run is mandatory before returning the drive to service.

Reliability in Harsh Conditions

The JCU-11 is designed and tested for the environments where industrial drives actually operate — not climate-controlled test labs. ABB’s qualification testing for this control unit addresses the failure modes that matter in the field:

• Vibration resistance: Qualified to IEC 60068-2-6 sinusoidal vibration profiles across the frequency bands generated by pump skids, compressor bases, and mobile equipment. Conformal coating on the PCB assembly prevents solder joint fatigue under sustained mechanical stress — a failure mode that destroys uncoated boards within months in high-vibration installations.
• Thermal operating range: Continuous operation from −15 °C to +55 °C ambient. Processor and memory components are specified to industrial temperature grades — not commercial-grade parts that begin to derate above 40 °C. This distinction matters in outdoor enclosures, unventilated substations, and tropical climates.
• Humidity and condensation: Selective conformal coating on critical circuit areas provides protection up to 95% RH non-condensing. Relevant for coastal industrial plants, paper mills, food processing facilities, and any installation where cabinet temperature swings produce condensation cycles on the electronics.
• EMC immunity: Designed and tested to IEC 61800-3 Category C3 — the standard for industrial drive environments with significant conducted and radiated interference from adjacent switchgear, other VFDs, and welding equipment. No additional shielding measures are required beyond standard drive installation practice.
• Pre-shipment inspection protocol: Every JCU-11 dispatched from our Xiamen warehouse is physically inspected for connector pin condition, housing integrity, and label authenticity. Anti-static packaging with humidity indicator cards is standard on all outbound shipments — not an upgrade option.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — a primary Chinese export hub with direct access to international air freight terminals at Xiamen Gaoqi International Airport and established freight corridors to Shenzhen and Shanghai. Routing is consistent because the infrastructure is consistent.

• DHL Express Worldwide: 2–4 business days to Europe and North America. Door-to-door service with full shipment tracking and proactive customs clearance coordination from our logistics team.
• FedEx International Priority: 1–3 business days to major industrial hubs globally. The preferred carrier when production is stopped and every hour of delay carries a measurable financial cost.
• Same-day dispatch cutoff: Orders confirmed with payment before 15:00 CST ship the same business day. Contact us via WhatsApp before placing the order for real-time stock confirmation and a firm dispatch time commitment.
• Export documentation: Every shipment includes a commercial invoice, packing list, and country of origin declaration. HS code classification support is available on request — useful for expediting customs clearance in markets with strict import documentation requirements.
• Compliance screening: All shipments are processed in compliance with Chinese export regulations and destination country import requirements. We ship regularly to EU member states, the United Kingdom, the United States, Australia, India, and GCC countries. Restricted destination screening is applied to every order without exception.

When your production line is stopped and downtime cost is accumulating in real time, logistics execution is not a secondary concern. Dispatch speed and documentation accuracy are part of what we deliver — because on an emergency replacement order, they are inseparable from the product itself.
