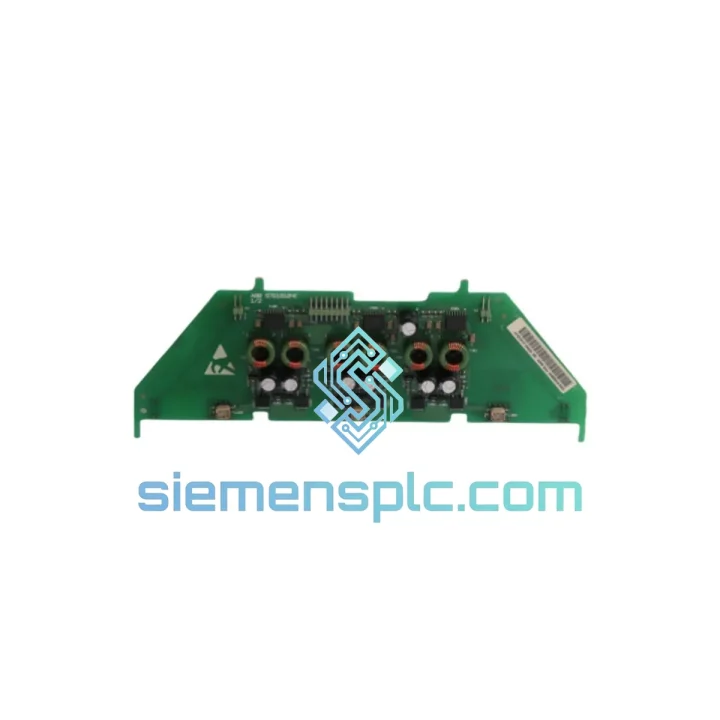

ABB NGDR-03C 61353364D Gate Driver Board

ABB NGDR-03C 61353364D — Procurement Strategy for ACS800 Gate Driver Boards

For procurement managers and MRO engineers responsible for keeping AC drive systems operational, the NGDR-03C 61353364D represents one of the most consequential single-board purchases in an ACS800 maintenance cycle. This gate driver board sits at the intersection of the control layer and the high-voltage power stage — it translates fiber-optic firing commands from the RMIO control board into precise gate pulses that switch the IGBT modules. When it fails, the drive does not degrade gracefully; it trips hard, and production stops. Understanding how to source this part reliably, at the right cost, and with verified authenticity is not a purchasing formality — it is a risk management decision.

The ACS800 platform remains one of the most widely installed medium-to-high power AC drive families in global industry, with active deployments in pulp and paper mills, metals processing lines, marine propulsion systems, and large-scale water infrastructure. ABB’s long production run for this series means the NGDR-03C is a high-demand spare — not a niche oddity. Authorized distributor channels frequently carry extended lead times of 8 to 16 weeks for this board, particularly in post-pandemic supply environments where semiconductor-adjacent components face persistent allocation constraints. For facilities running continuous processes, that lead time is operationally unacceptable. This is precisely where a specialized third-party industrial supplier with verified stock and a documented quality process delivers measurable value.

At siemensplc.com, we maintain ready inventory of the NGDR-03C 61353364D sourced through established industrial channels, with each unit passing a structured pre-shipment verification protocol. Our Xiamen operations hub enables rapid customs clearance and same-day dispatch on confirmed orders, with express courier delivery to most global destinations within 3 to 7 business days. For procurement teams under pressure to restore drive availability, this is not a marginal improvement — it is the difference between a 48-hour recovery and a 12-week wait.

Request an Official Quote: [email protected] | WhatsApp: +86 18359268345

Procurement Specifications

• Part Number: NGDR-03C
• ABB Reference / Revision: 61353364D
• Compatible Platform: ABB ACS800 Single Drive & Cabinet Drive Series
• Board Function: IGBT Gate Driver — control-to-power stage interface
• Signal Interface: Fiber optic gate signal input; direct IGBT gate/emitter output
• Isolation Architecture: Galvanically isolated gate drive channels
• Protection Logic: Desaturation (DESAT) fault detection; short-circuit shutdown
• Mounting Configuration: Direct-mount to IGBT module stack within ACS800 power unit
• Unit Weight: Approx. 80 g
• Supply Condition: New OEM stock / Professionally tested and verified units
• Warranty Coverage: 12 months from date of shipment
• Lead Time: In-stock units ship within 1–3 business days from Xiamen. For high-volume or project orders, contact us for a dedicated allocation timeline. Standard express delivery reaches most destinations in 3–7 business days via DHL, FedEx, or UPS.
• Minimum Order Quantity: 1 unit (bulk pricing available for 5+ units)
• Payment Terms: T/T bank transfer, PayPal, Western Union, and other agreed methods; multi-currency invoicing available

Total Cost of Ownership (TCO) Analysis

Procurement decisions for industrial spare parts are rarely evaluated on unit price alone — and they should not be. The true cost of sourcing the NGDR-03C 61353364D must account for three distinct cost categories: acquisition cost, downtime cost, and lifecycle maintenance cost.

Acquisition Cost Advantage: Authorized OEM channels for ABB ACS800 spare boards carry significant price premiums, often 40 to 80 percent above market rates, compounded by minimum order requirements and extended payment terms. Third-party specialist suppliers operating with lower overhead and direct sourcing relationships can offer the same board at materially lower unit cost. For facilities maintaining a buffer stock of two to four NGDR-03C units — a standard practice in continuous-process industries — this price differential translates directly into capital expenditure savings without any compromise on part quality.

Downtime Cost Elimination: The most significant TCO driver for gate driver boards is not the board itself — it is the cost of the production line it controls. In a mid-scale paper mill or metals processing facility, unplanned drive downtime can cost between USD 5,000 and USD 50,000 per hour depending on throughput and product value. A 12-week OEM lead time, in the worst case, represents an existential operational risk. Sourcing from a supplier with verified in-stock availability and 48-hour dispatch capability converts a potential multi-week outage into a 5-to-7 day recovery window. The cost avoidance from a single prevented downtime event typically exceeds the total annual spend on ACS800 spare boards by a factor of ten or more.

Warranty and Lifecycle Cost: Our 12-month warranty on the NGDR-03C 61353364D is not a marketing statement — it is a contractual commitment backed by our pre-shipment testing protocol and post-delivery technical support. For maintenance budgets, this means the OPEX associated with board replacement risk is bounded and predictable. A board that fails within the warranty period is replaced at no cost, eliminating the double-spend scenario that frequently inflates MRO budgets when unverified parts are sourced from unaccountable channels. Over a three-year maintenance horizon, the combination of competitive acquisition pricing, downtime risk reduction, and warranty coverage consistently delivers a lower total cost than single-source OEM procurement.

CAPEX and OPEX Impact Summary: Choosing siemensplc.com as your NGDR-03C supplier reduces CAPEX through lower unit pricing and eliminates the need for excessive buffer stock driven by long lead times. It reduces OPEX by shortening mean time to repair (MTTR), providing warranty-backed replacement coverage, and offering technical support that reduces the labor cost of fault diagnosis and installation. For procurement teams accountable to both engineering and finance stakeholders, this is a defensible sourcing decision with quantifiable returns.

Quality & Compliance Assurance

Every NGDR-03C 61353364D unit dispatched from siemensplc.com is subject to a documented quality verification process before it leaves our facility. This is not a cursory visual check — it is a structured protocol designed to catch the failure modes that matter in field deployment.

• Visual and Physical Inspection: PCB examined under magnification for component damage, solder joint integrity, trace corrosion, and connector condition. Any unit showing signs of prior repair, burn marks, or mechanical stress is quarantined and not offered for sale.
• Functional Verification: Gate output signal integrity is confirmed under controlled bench conditions. Units are not dispatched on visual inspection alone.
• 100% Genuine Parts Commitment: We source exclusively through established industrial channels with documented traceability. Counterfeit or grey-market boards are a known risk in the ACS800 spare parts market; our sourcing discipline and verification process are your protection against that risk.
• Xiamen Customs Compliance: All international shipments are processed through Xiamen Customs with full export documentation, accurate HS code classification, and compliant commercial invoicing. This eliminates customs clearance delays at the destination and ensures your import records are clean for audit purposes.
• Multi-Currency Payment Support: We accept USD, EUR, GBP, HKD, and CNY, with invoicing in your preferred currency. This simplifies accounts payable processing for international procurement teams and eliminates foreign exchange friction.
• ESD-Safe Packaging: All boards are shipped in anti-static ESD packaging with moisture barrier protection, ensuring the board arrives in the same condition it left our facility regardless of transit duration or climate.

Strategic Sourcing from Xiamen

Xiamen is not an arbitrary logistics point — it is one of China’s most strategically positioned international trade hubs, and it is the operational base from which siemensplc.com serves industrial buyers across six continents. The city’s port infrastructure, bonded warehouse facilities, and direct air freight connections to major global hubs — including Frankfurt, Dubai, Los Angeles, Singapore, and Amsterdam — enable a level of dispatch speed and shipping reliability that inland suppliers cannot match.

For buyers in Southeast Asia, the Middle East, Europe, and the Americas, Xiamen-origin shipments via DHL Express or FedEx International Priority consistently achieve 3-to-5 business day delivery to major industrial centers. For buyers in East Asia and ASEAN markets, transit times are frequently 1 to 3 business days. This geographic advantage is not incidental — it is a deliberate part of our supply chain design, built to serve the response-time requirements of industrial maintenance operations where every day of drive downtime has a measurable cost.

Our Xiamen team manages export documentation, customs classification, and carrier coordination in-house, which means there are no third-party freight forwarder delays between order confirmation and physical dispatch. When you confirm an order with siemensplc.com, the clock starts immediately — not after a handoff to an external logistics provider.

Contact Information

Our team is available to provide technical compatibility confirmation, volume pricing, and shipping quotes within one business day of inquiry.

• Email: [email protected]
• WhatsApp: +86 18359268345
• Web: siemensplc.com
